| Model NO. | J30J-15TJN |
| Application | PCB, Power, Audio & Video, Automotive |
| Interface Type | AC/DC |
| Operating Frequency | Low Frequency |
| Gender | Male |
| Poles | 15 Pins |
| Housings | Metal (Aluminum Alloy) |
| Contact Finish | Gold |

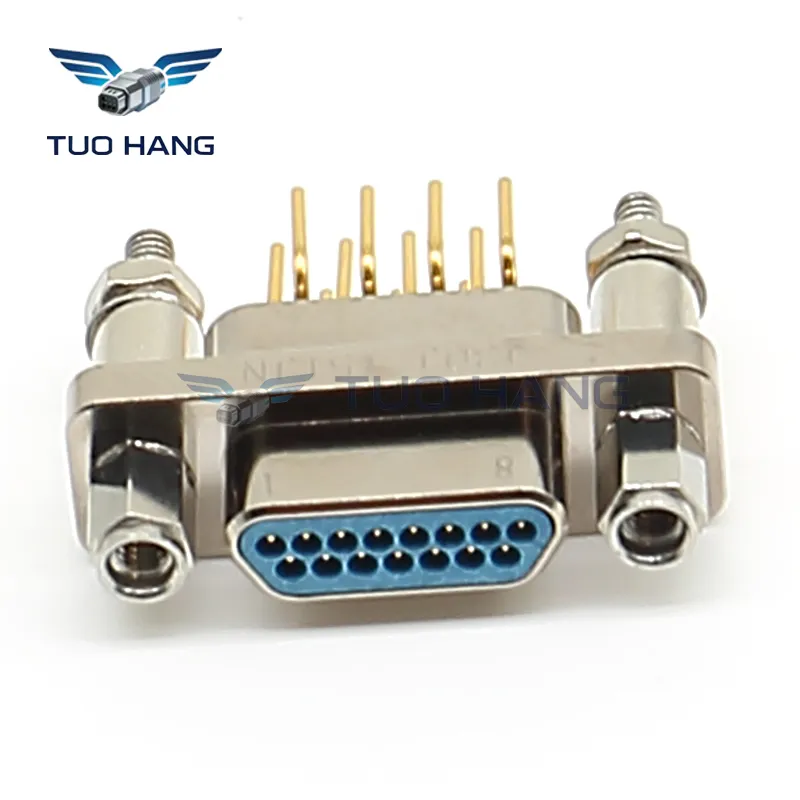

| Fastening Type | Detent Lock / Jackscrew |
| Mounting Type | Through Hole / Straight PCB Mount |
| Temperature Rating | -55°C ~ +125°C |
| Contact Resistance | ≤ 10 MΩ |
| Dielectric Voltage | 800 V (600V AC at sea level) |
| Durability | 500 Mating Cycles |

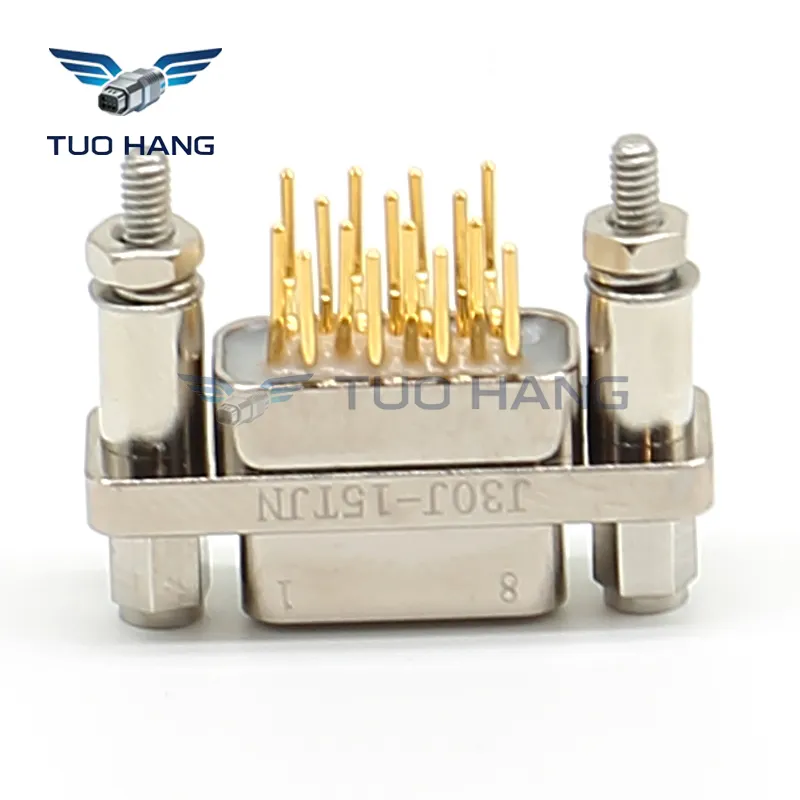

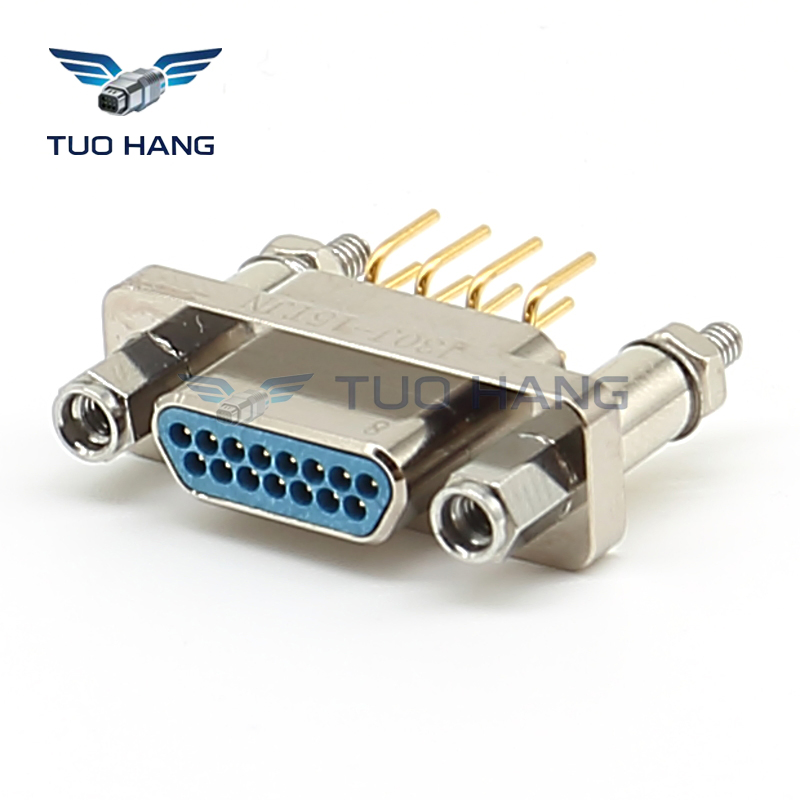

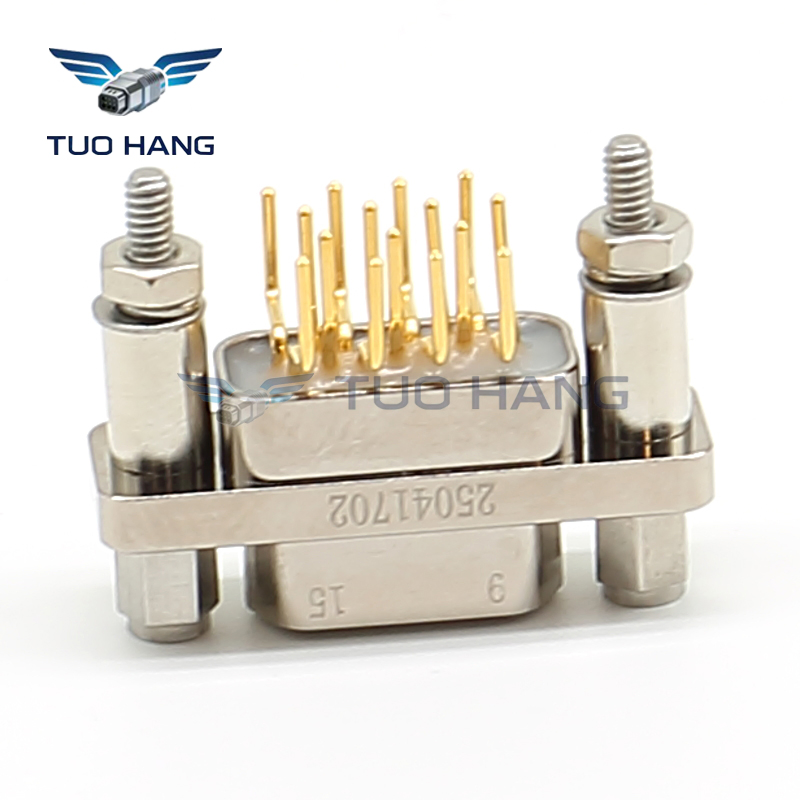

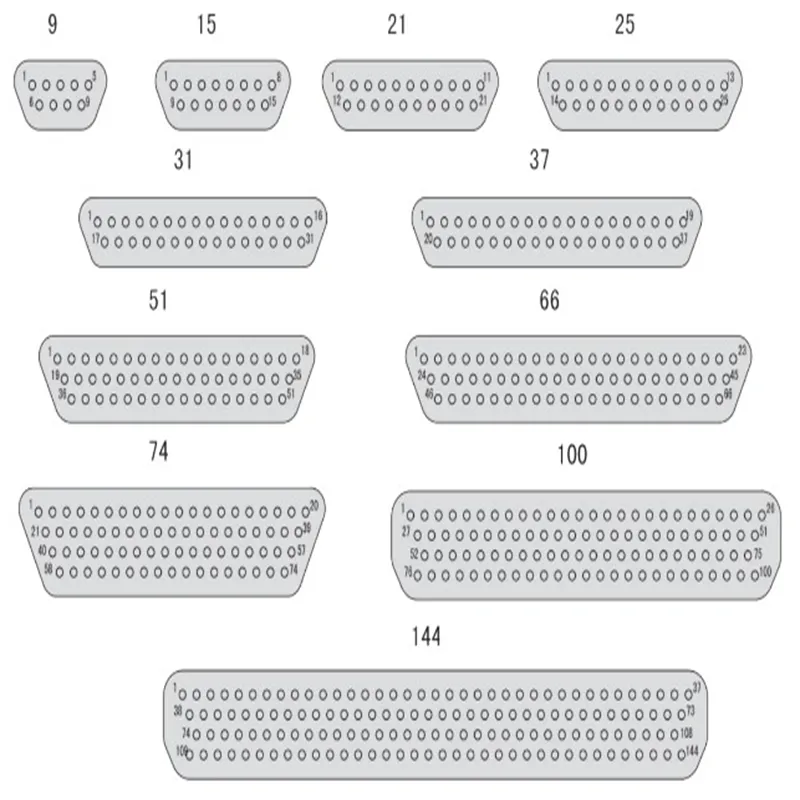

The J30J-15TJN is a high-density, micro-miniature rectangular connector designed for critical signal transmission in space-constrained environments. Fully compliant with the GJB2446A standard (equivalent to the U.S. MIL-DTL-83513 Micro-D series), it features a 1.27mm pitch and a robust 15-pin configuration.

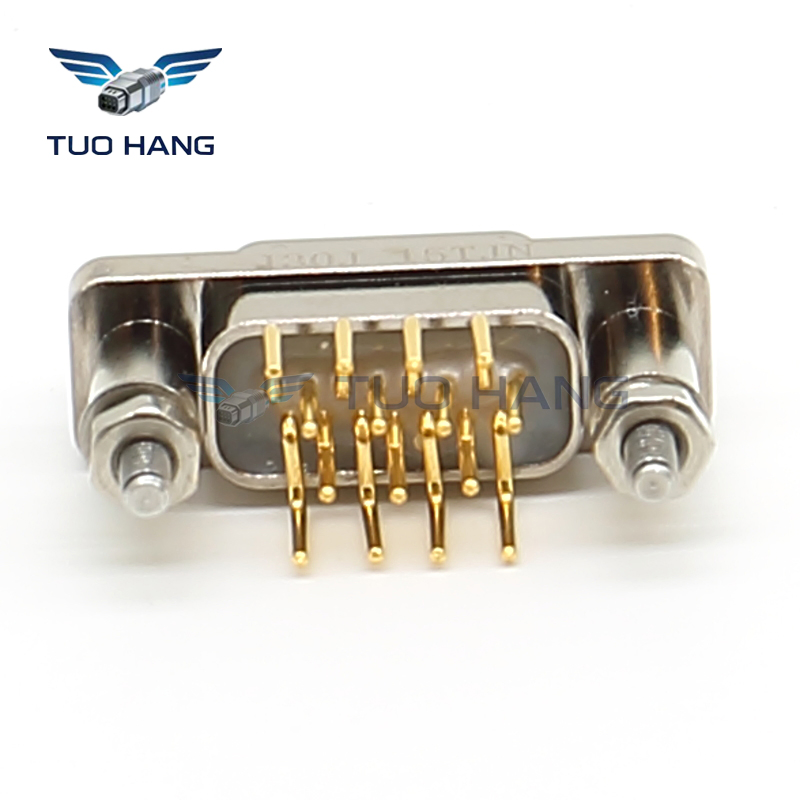

The "TJN" designation indicates a Plug (T) with Straight PCB Termination (JN), making it ideal for direct board-level integration where reliability and compact size are paramount.
Utilizes high-performance flexible twist pins to ensure 7+ points of contact, maintaining electrical continuity under extreme shock and vibration.
The rugged aluminum alloy shell provides superior electromagnetic interference protection for sensitive signals.
1.27mm (0.050") contact spacing allows for significant PCB real estate savings compared to standard D-Sub connectors.
Engineered to operate reliably in harsh environments ranging from -55°C to +125°C.
