Xce22f12K1p40 Xce22t12z1p40 Circular Connector 12 Pin 22mm Aviation Power Socket

ℹ️

Basic Specifications

Model NO.XCE22F12K1P40+XCE22T12Z1P40

GenderMale / Female Pair

CertificationISO9001

ApplicationUHF, FPC, Microwave, Automobile

Contact Resistance10MΩ

Contact MaterialBrass (Gold-plated)

Surface TreatmentNickel Plating / P40

Housing MaterialAluminum Alloy

Operating Temp.-55 to 125 °C

Durability≥ 1000 Cycles

📘

Product Description

The XCE Series is a specialized line of miniature circular connectors developed for aerospace, defense, and high-end industrial sectors. Designed as an upgraded version of the standard XC series, it offers higher contact density and significant weight savings while maintaining compliance with GJB2889 standards.

System Components: This set is a complete interconnect solution consisting of:

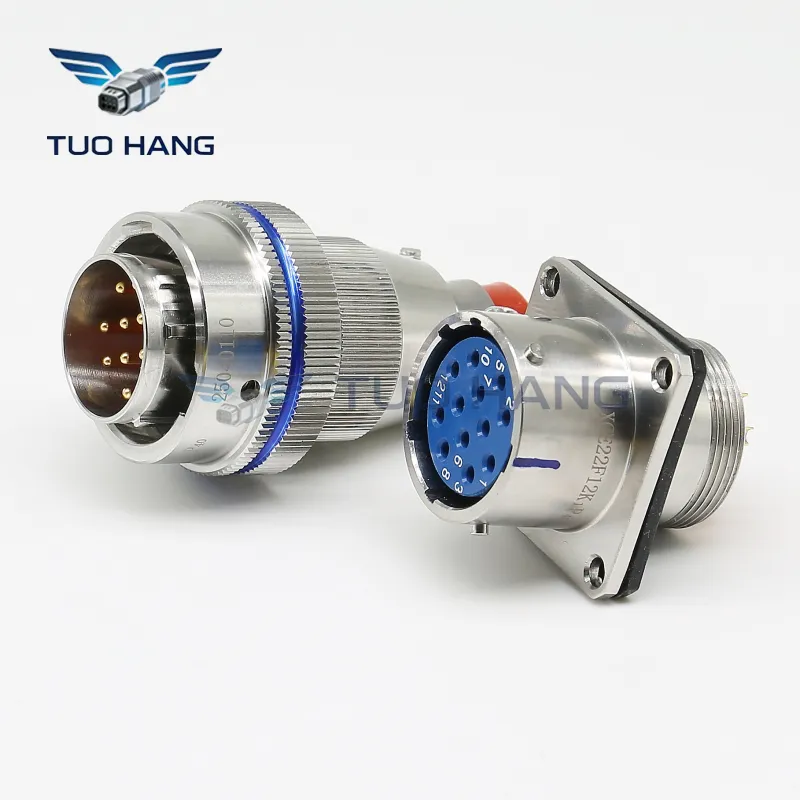

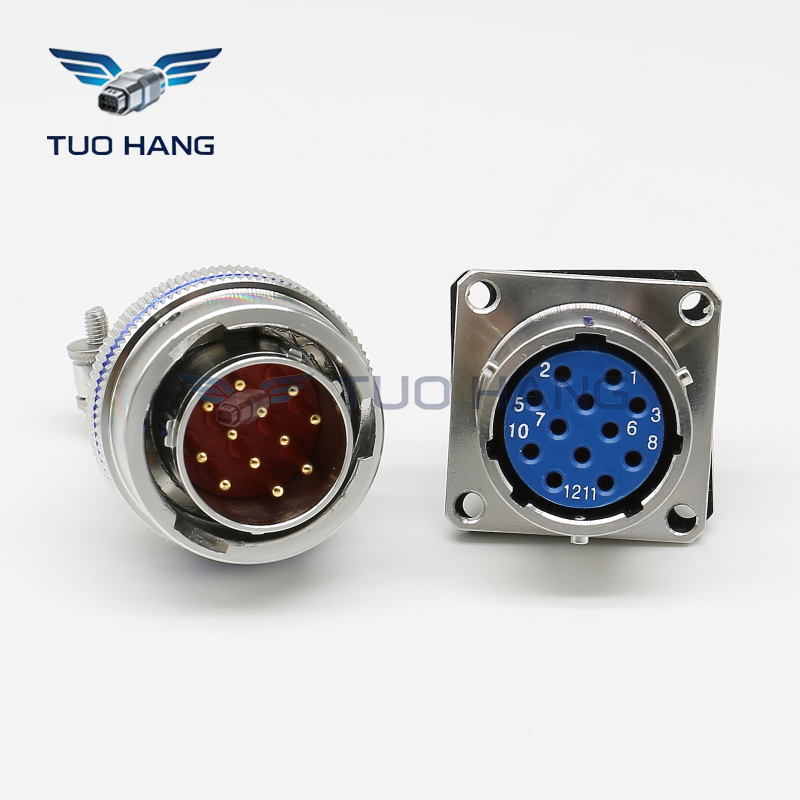

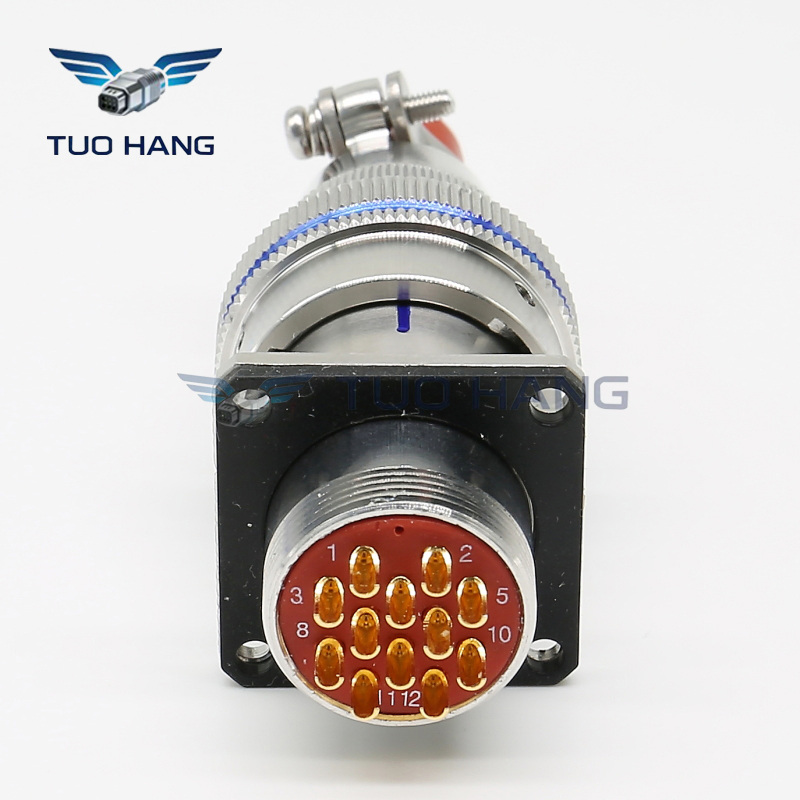

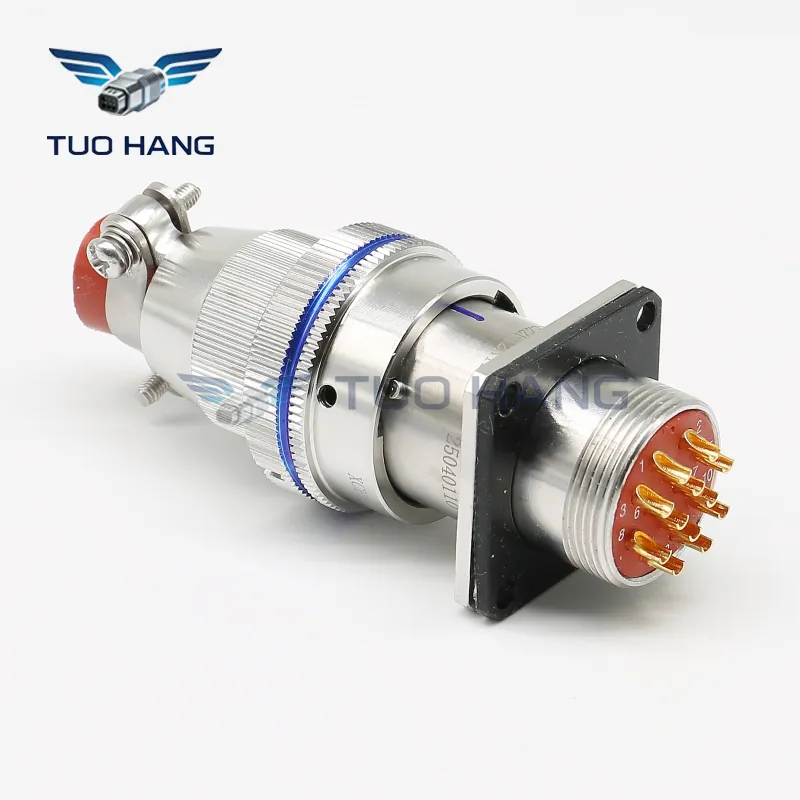

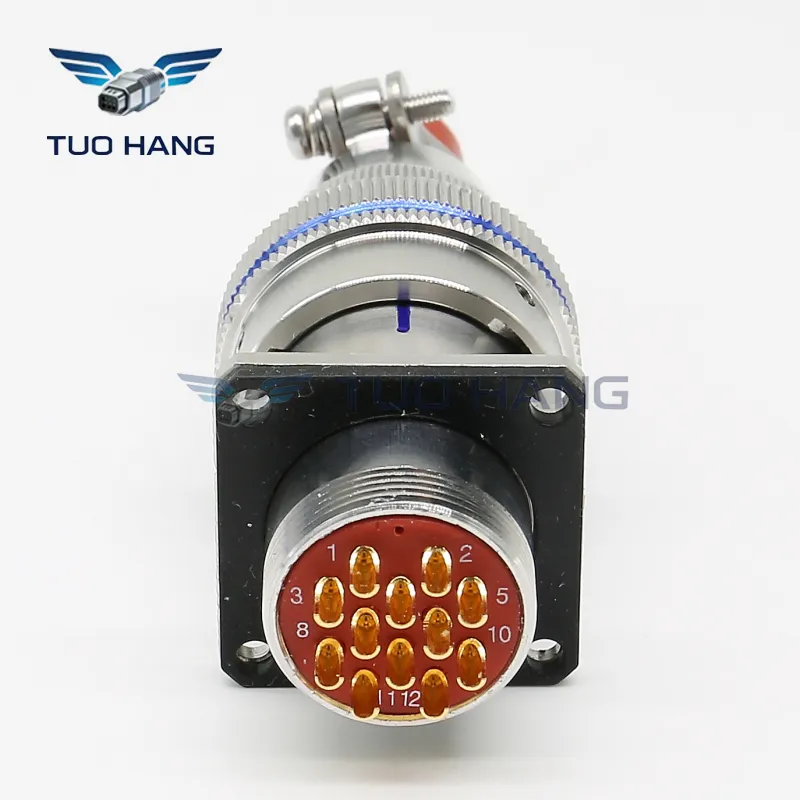

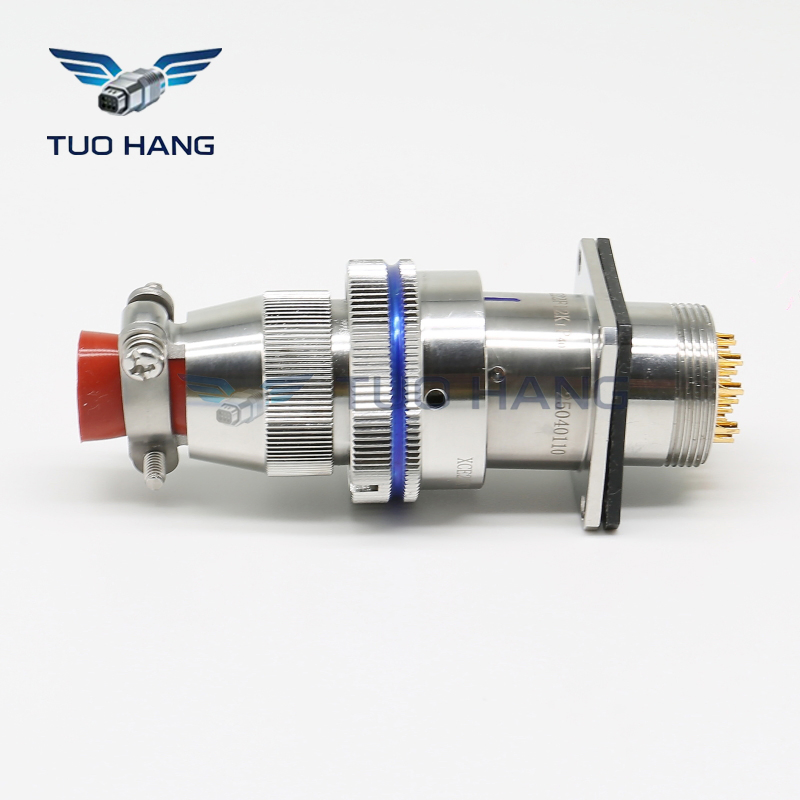

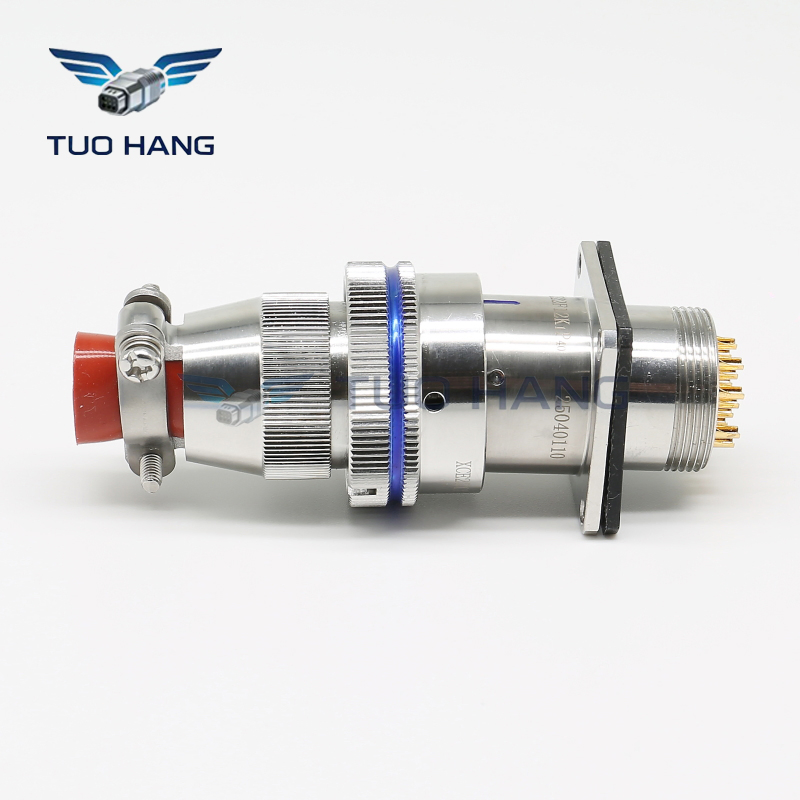

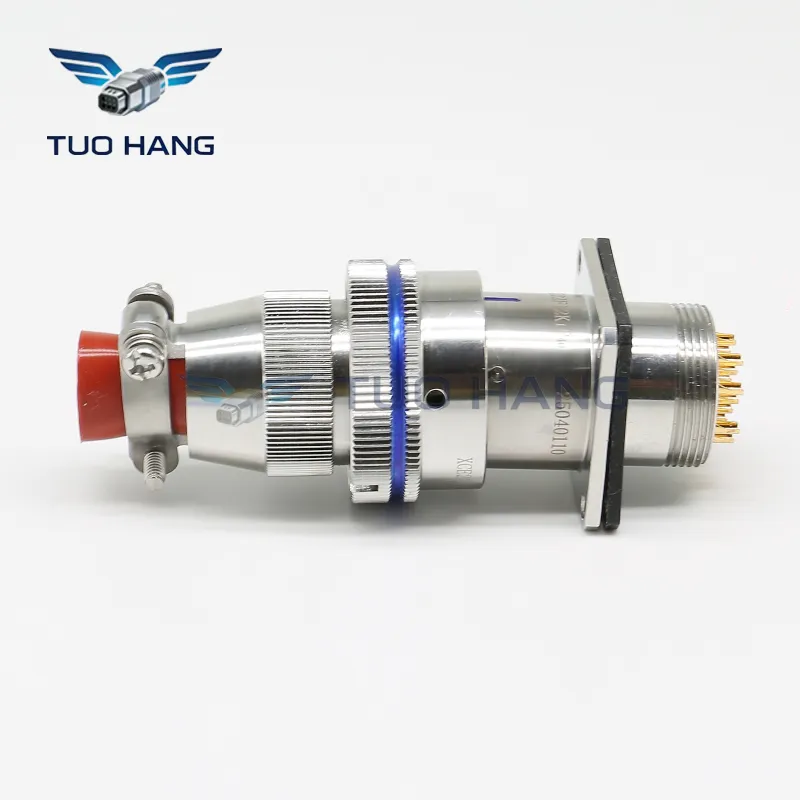

• XCE22F12K1P40 (Receptacle): Square flange, panel-mount housing with 12 socket (female) contacts.
• XCE22T12Z1P40 (Plug): Straight cable-mount plug with 12 pin (male) contacts.

🔢

Identification Code Guide

Code	Component	Description
XCE	Series	Miniature high-density circular connector
22	Shell Size	Size 22 housing (mating interface diameter)
F / T	Type	F: Square Flange Receptacle / T: Straight Plug
12	Contacts	12-pin configuration
K / Z	Gender	K: Socket (Female) / Z: Pin (Male)
1	Backshell	Standard straight shielding/clamping nut
P40	Finish	High-performance plating (Nickel/Olive Drab)

Material Construction

• Shell Body: High-strength Aluminum Alloy (P40 finish).
• Insulator: High-grade Thermosetting Plastic or PPS.
• Contacts: Gold-plated Copper Alloy for stable conductivity.

Typical Applications

• Aerospace Avionics: Power and signal distribution.
• Military Vehicles: Ruggedized data links.
• Robotics & CNC: High-pin-count control cables.
• Testing Equipment: Reliable test bench interfaces.

🏢

Professional Profile

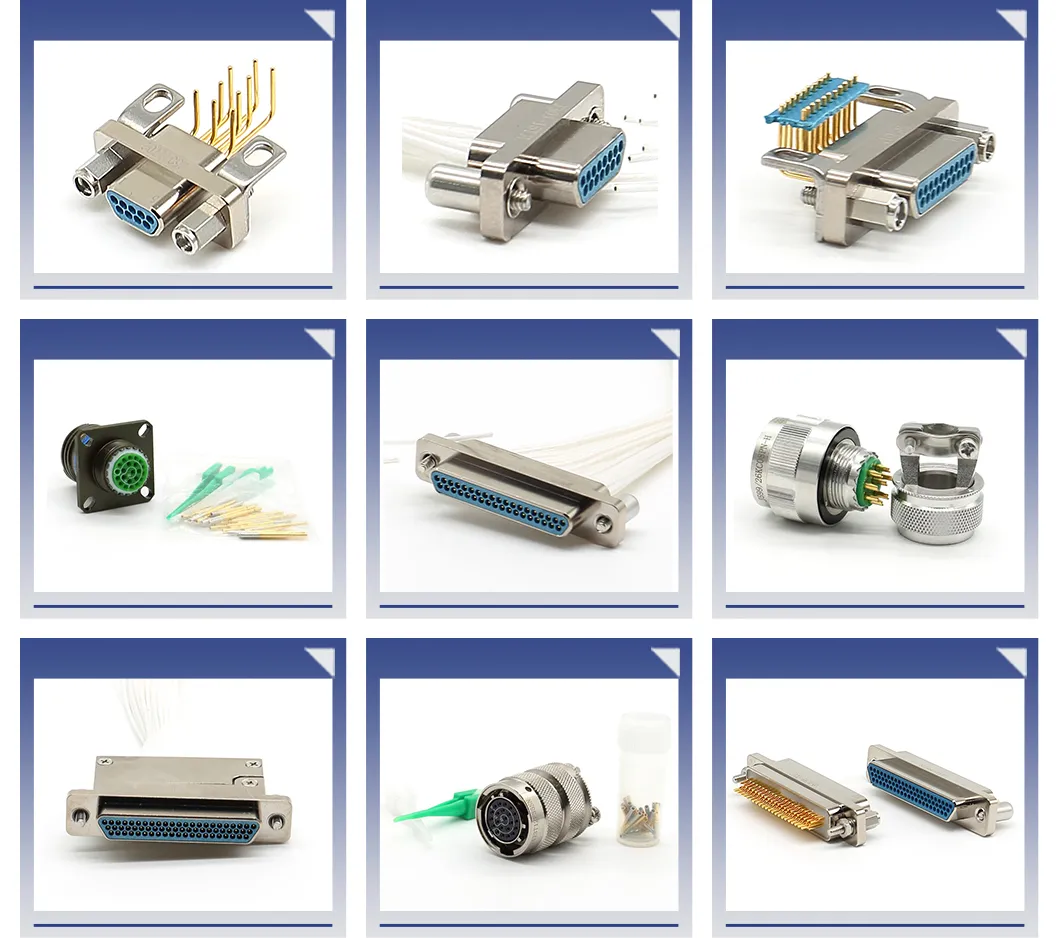

We are a professional enterprise specializing in the research, development, and production of electrical connectors. Our main products include Y50EX, Y3A, Y3, YB, Y2, YP, Y4, Y11, Y17, Y50, Y27, XC, JY, YM, YGD, XS12, D38999 series circular connectors and J14, J30, J63 series rectangular connectors, meeting national military standards such as GJB101, GJB598, GJB2889, and GJB2905.

✅

Advantages & Certifications

❓

Frequently Asked Questions

Are you a factory or a trade company?

We are a specialized manufacturer of connectors and cables with over 5 years of industry experience.

What specific products can I purchase from you?

You can purchase a wide range of Rectangular connectors, PCB Connectors, Circular Connectors, and RF Connectors.

What are the primary advantages of your products?

We offer superior quality, fast delivery, competitive pricing, advanced production equipment, and standardized warehouse logistics.

Do you provide samples? Is there a cost?

We can provide a limited number of free samples; however, the customer is responsible for the shipping/freight costs.

What is the typical lead time for an order?

For in-stock items, we ship within 3-5 working days after payment confirmation. For other orders, the lead time depends on the specific quantity required.

Which payment methods do you accept?

We support multiple payment methods including T/T, PayPal, Western Union, and payments in CNY.
