| Model NO. | JT408 |
|---|---|
| Operating Voltage | DC4-20V |
| Power Dissipation | 3W |
| Protection Grade | IP67 |
| Impact Resistance | 1m Free Fall |
| Production Capacity | 200 set/Month |
| Origin | China |

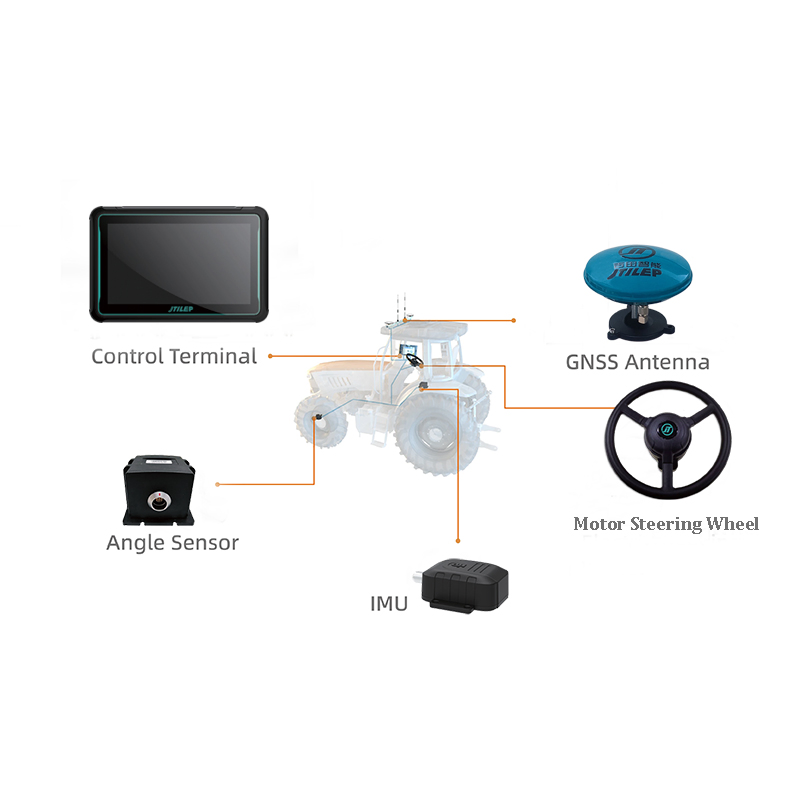

The Intelligent 408 GNSS navigation agricultural machinery automatic driving system adopts a terminal core integration solution. Its main components include an intelligent navigation terminal, motor steering wheel (or hydraulic valve), body attitude sensor, GNSS antenna, and gyroscope. It supports both single and dual antenna schemes simultaneously. The satellite leveling system and operation detection system can be expanded as needed.
| Physical Properties | |
|---|---|
| Size | 178mm x 178mm x 74mm |

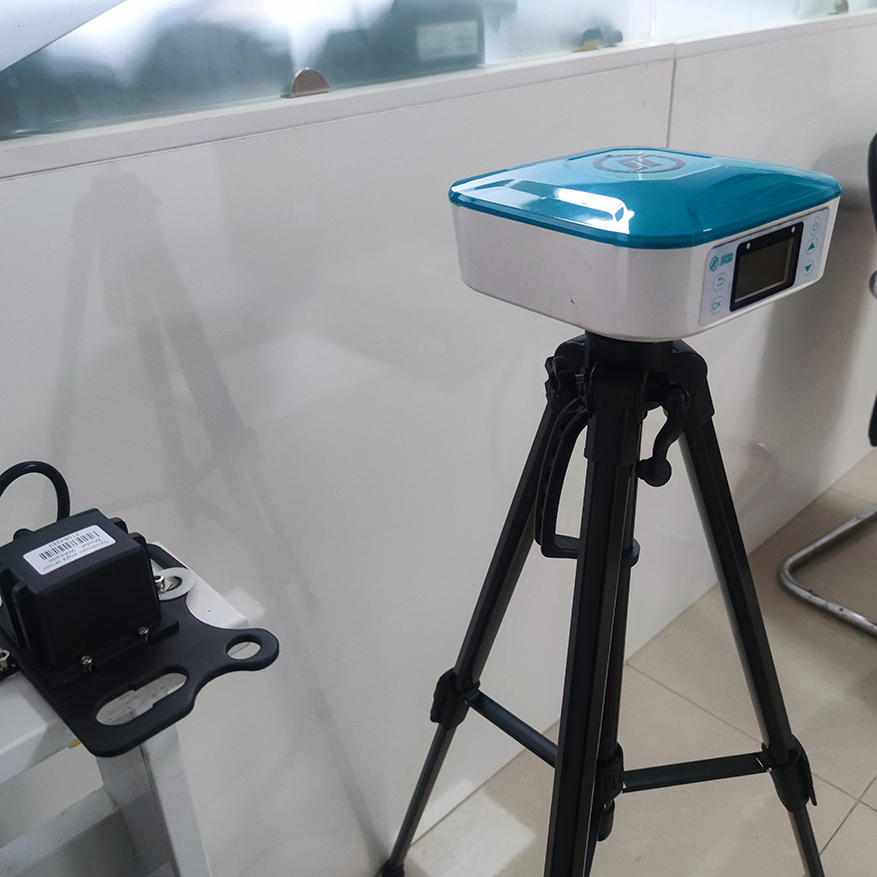

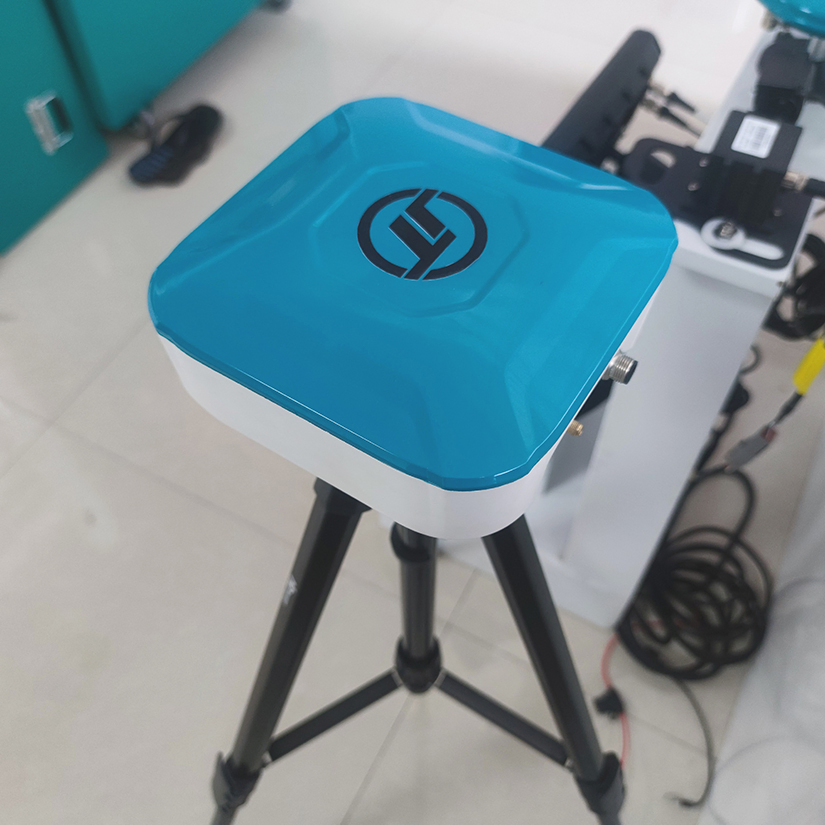

| Weight | 1.05kg (Base station host) |
| Display | 2.5-inch LCD |
| Material | Industrial-grade modulated PC |
| Electrical & Environmental | |
| Voltage | DC4-20V |
| Operating Temp | -40ºC to +70ºC |
| Storage Temp | -40ºC to +85ºC |
| Protection Grade | IP67 |

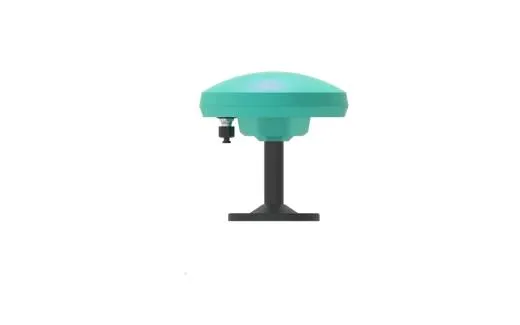

Satellite Antenna: Receives satellite signals. Includes antenna body, transition rod, and base.

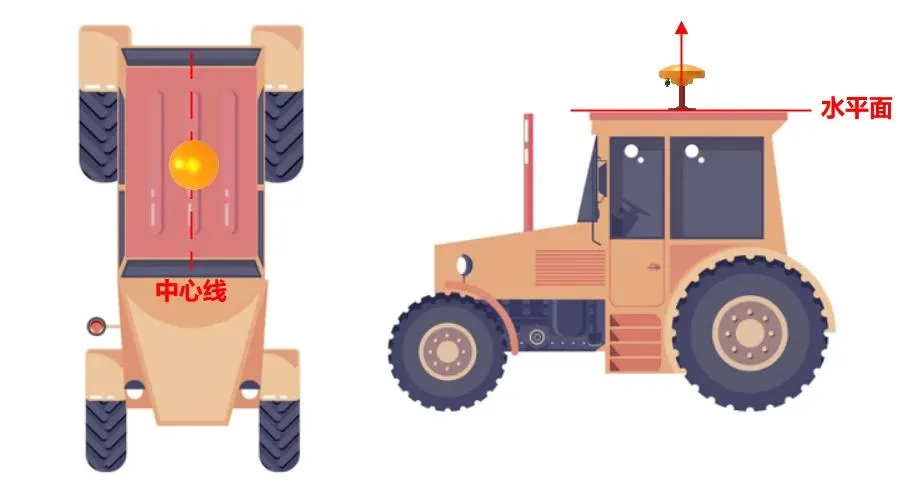

Single-Antenna Solution: Requires the antenna center to coincide with the vehicle longitudinal centerline.

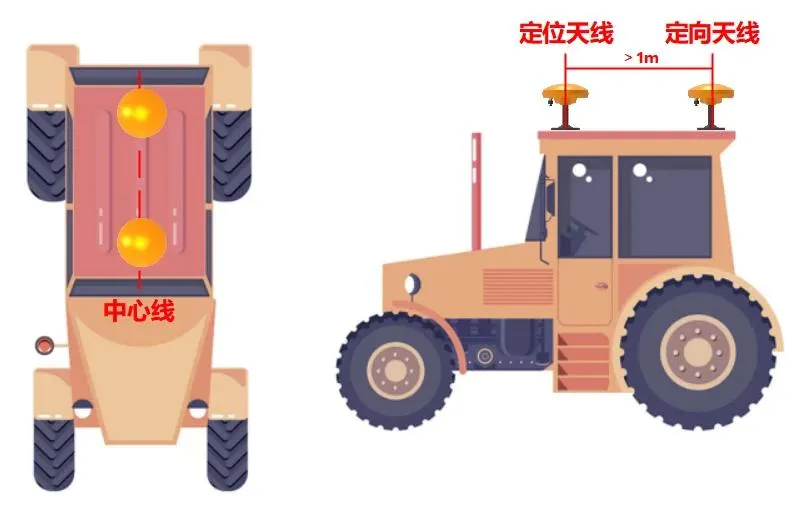

Dual-Antenna Solution: Two GNSS antennas arranged longitudinally for enhanced heading accuracy.

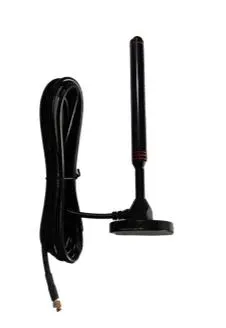

Radio Antenna: Receives RTK corrections. Installed vertically at least 30cm from GNSS antennas.

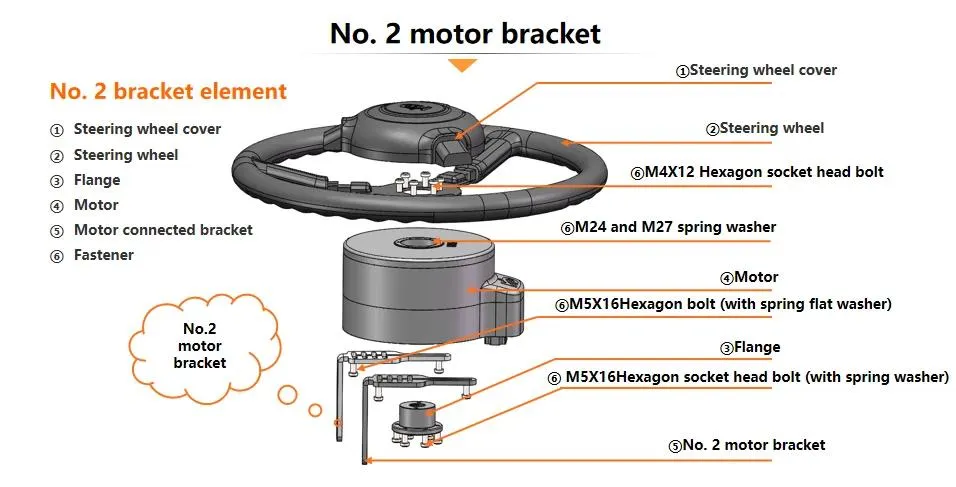

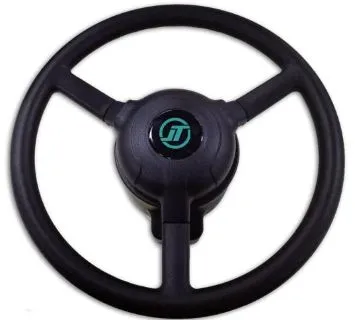

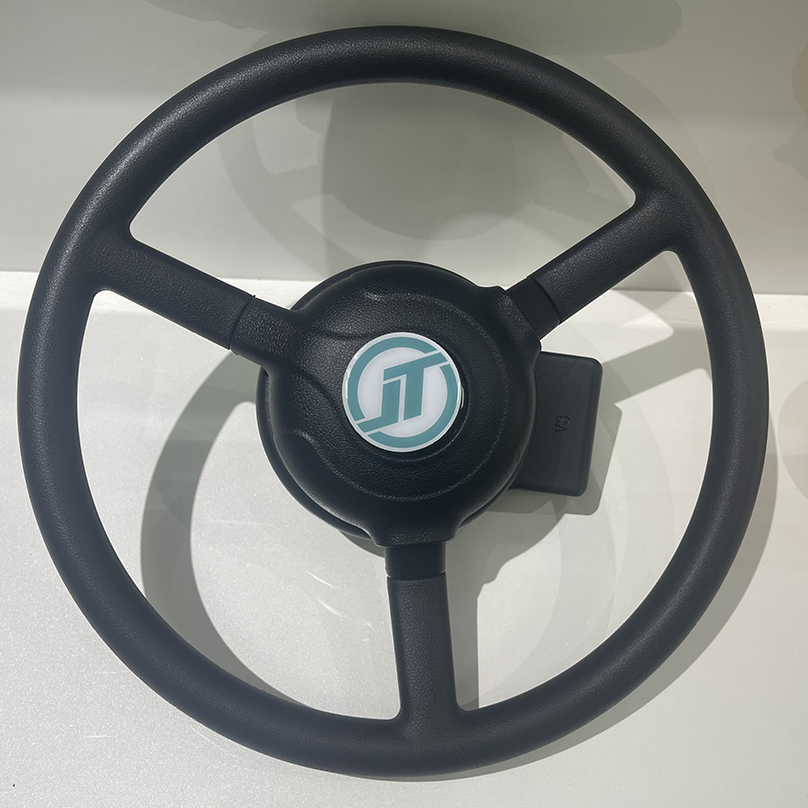

Motor Steering Wheel: The executive control unit that replaces the original steering wheel.

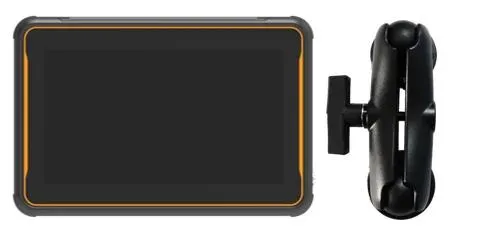

Display Terminal: 10-inch HD touch screen integrating the driving controller and 4G/Radio modules.

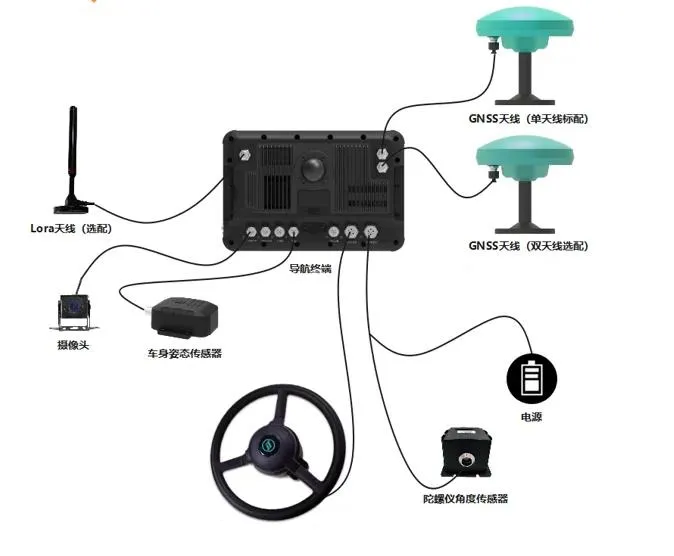

Wiring Harness: Comprehensive connection system for power, gyroscope, motor, and attitude sensors.

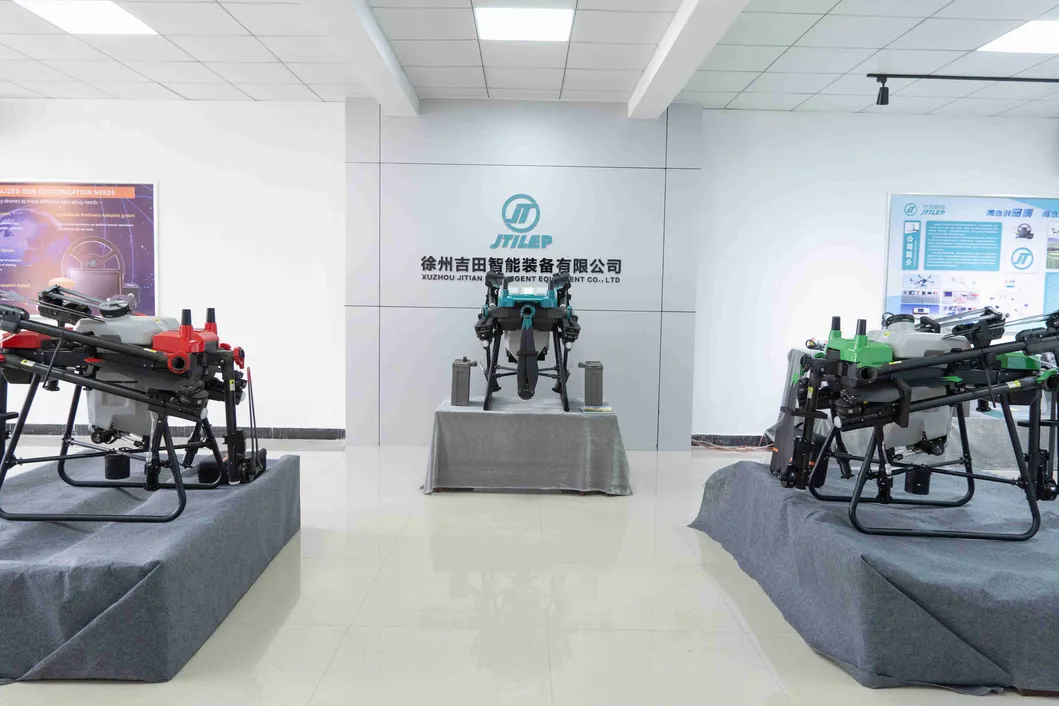

Focusing on intelligent agriculture, our team is committed to the research and development of agricultural drones, automatic driving systems for agricultural machinery, and intelligent agricultural platforms. With a high percentage of R&D talents, we maintain extensive technical cooperation with top-tier research institutions.
Our products cover more than 30 countries globally, managing over 100,000 sets of agricultural machinery equipment. We provide information services covering vast agricultural areas, maintaining a significant market share in intelligent detection terminals.
