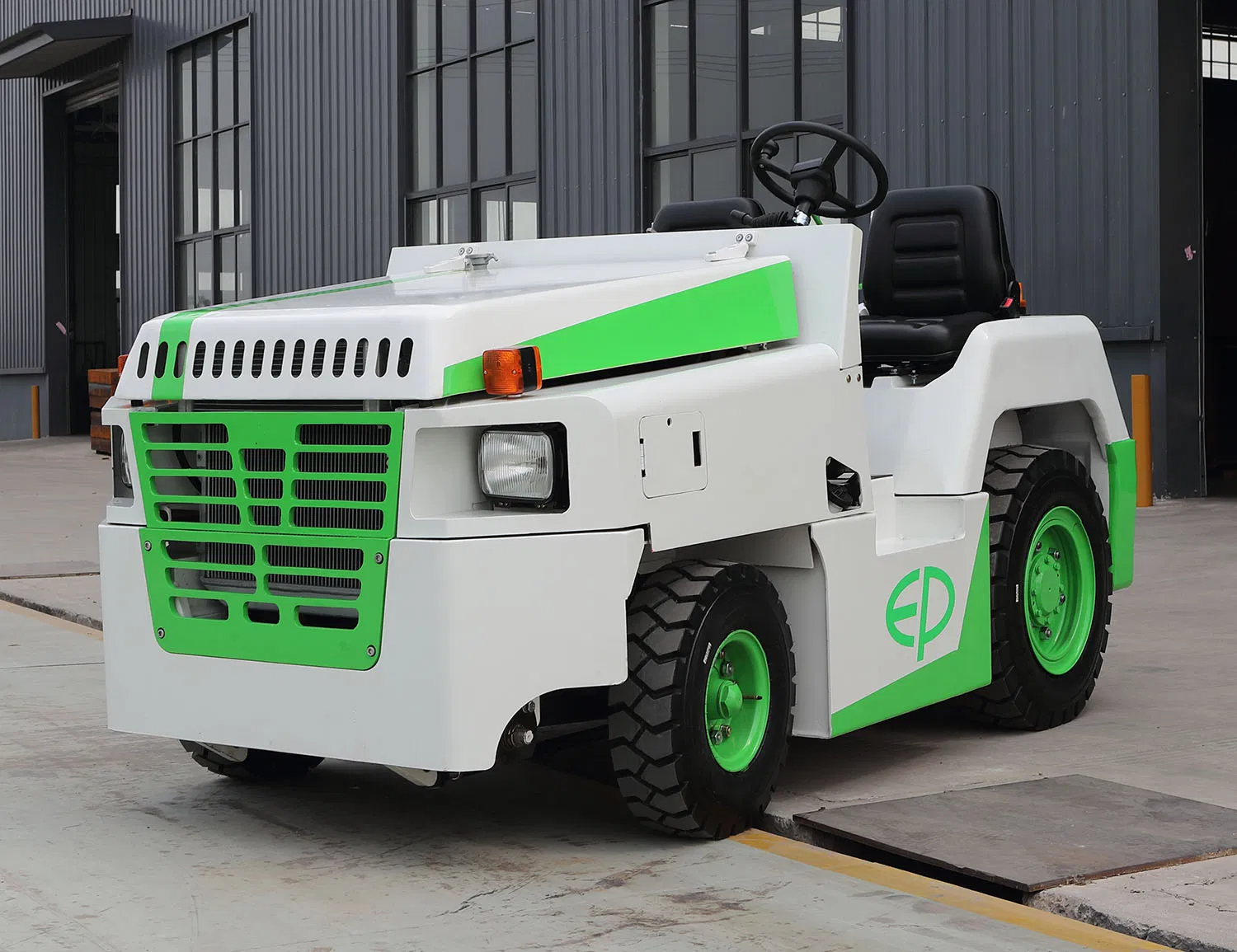

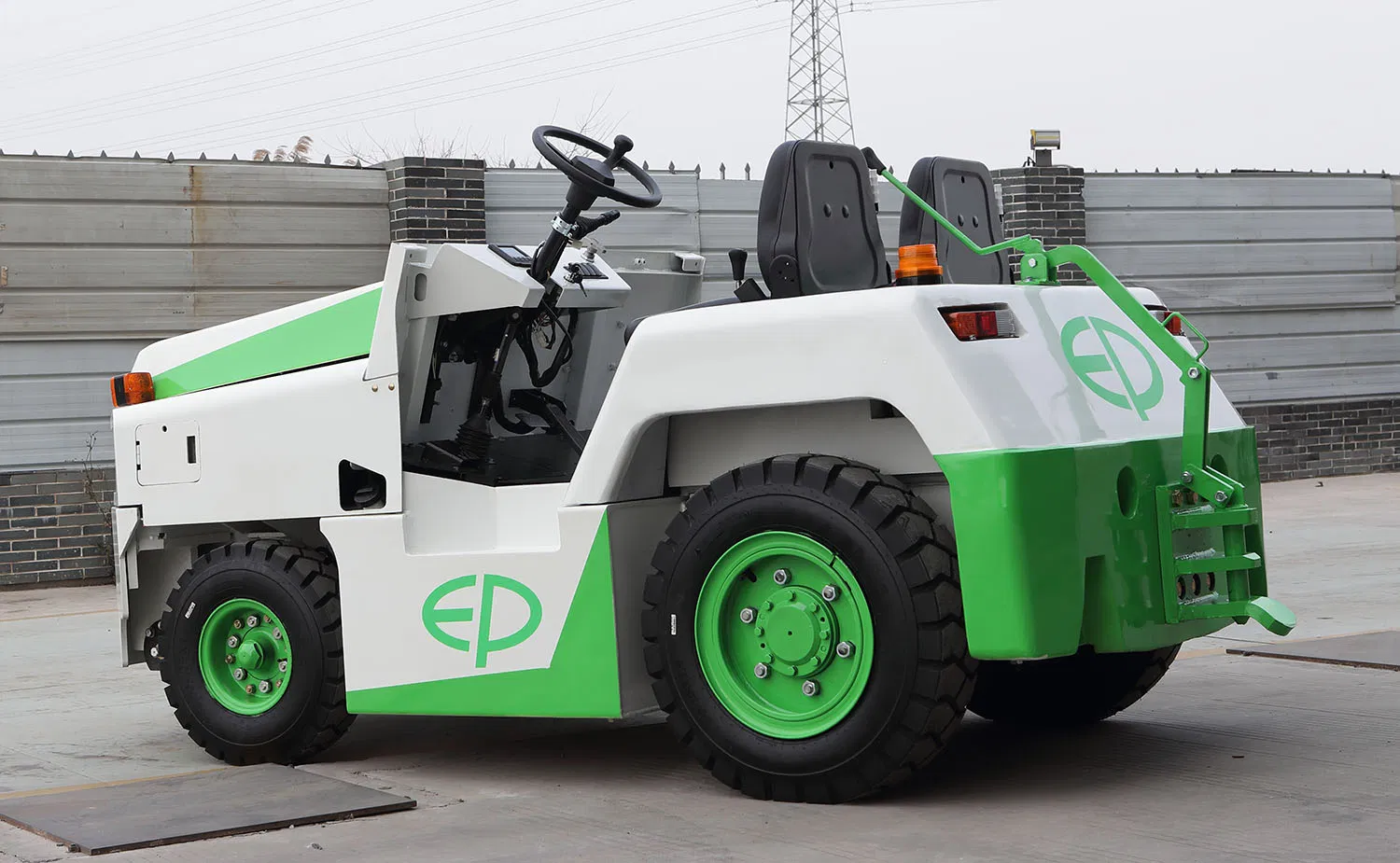

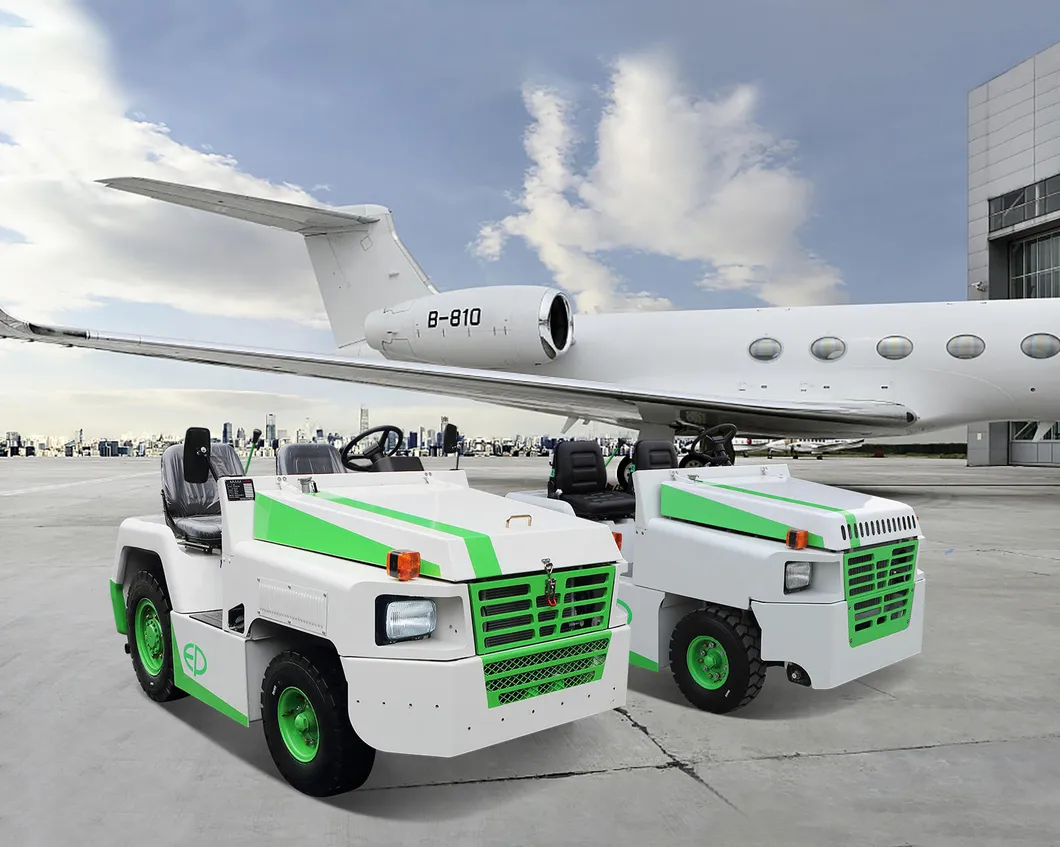

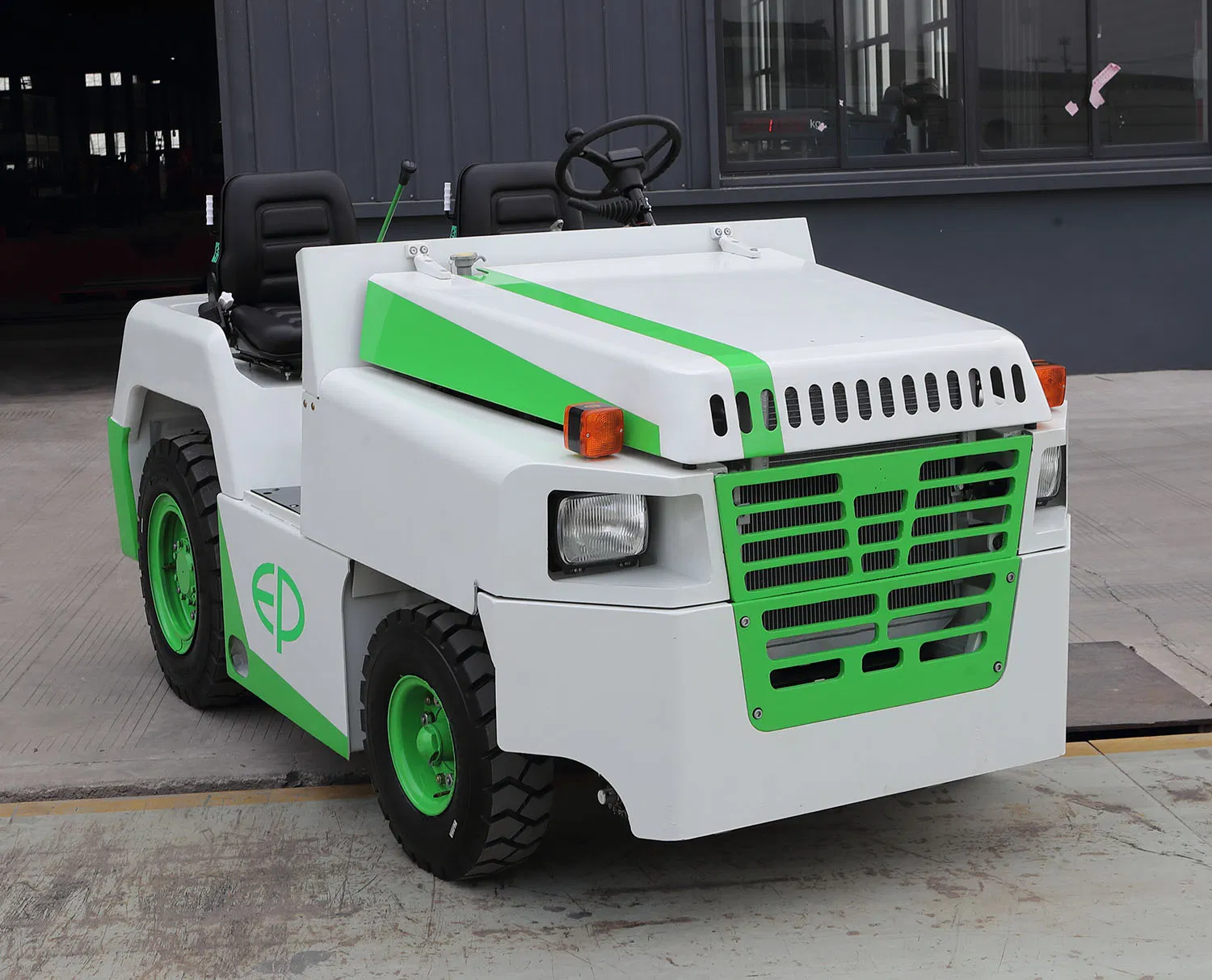

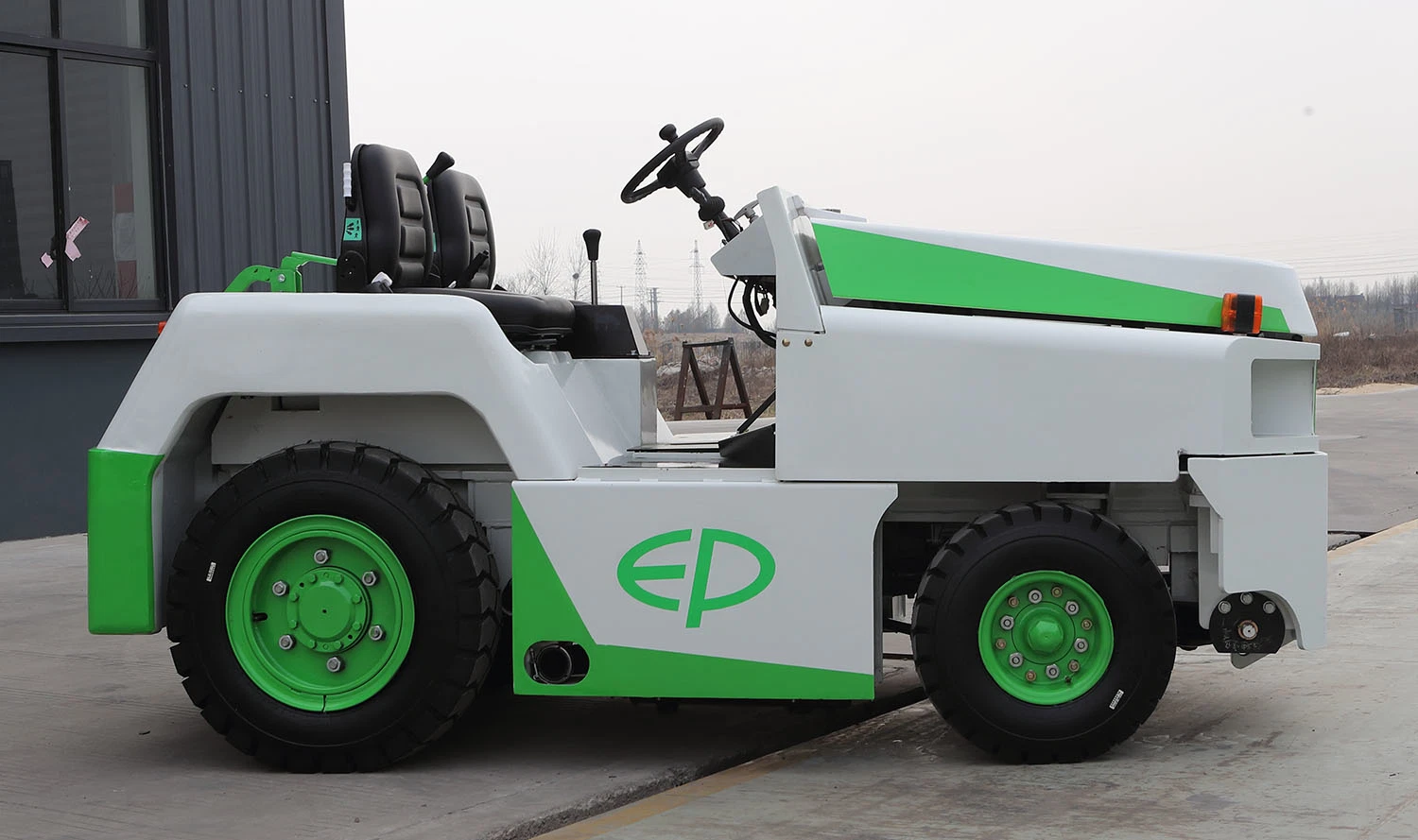

3.5 Ton Gse Diesel Engine Powered Aircraft Towing Tractor Ground Support Equipment

1 / 5

3.5 Ton Gse Diesel Engine Powered Aircraft Towing Tractor Ground Support Equipment

Customization:	Available
Cab Location:	Adjustable
Type:	Tow Tractor

Send Inquiry

Product Description

Basic Information

Model NO.

EQC352-BDS

Power

Diesel Engine

Load Capacity

3.5t

Fuel

Diesel

Max. Drawbar Pull

35kn

Max Towed Weight

44000kg

Service Weight

5100kg

Engine Model

(Mitsubishi) S4s

Tyre Type

Pneunatic

Travel Speed (F/B)

27/13 Km/H

Certification

Ce/ISO9001

Min. Turning Radius

3000mm

Transmission Model

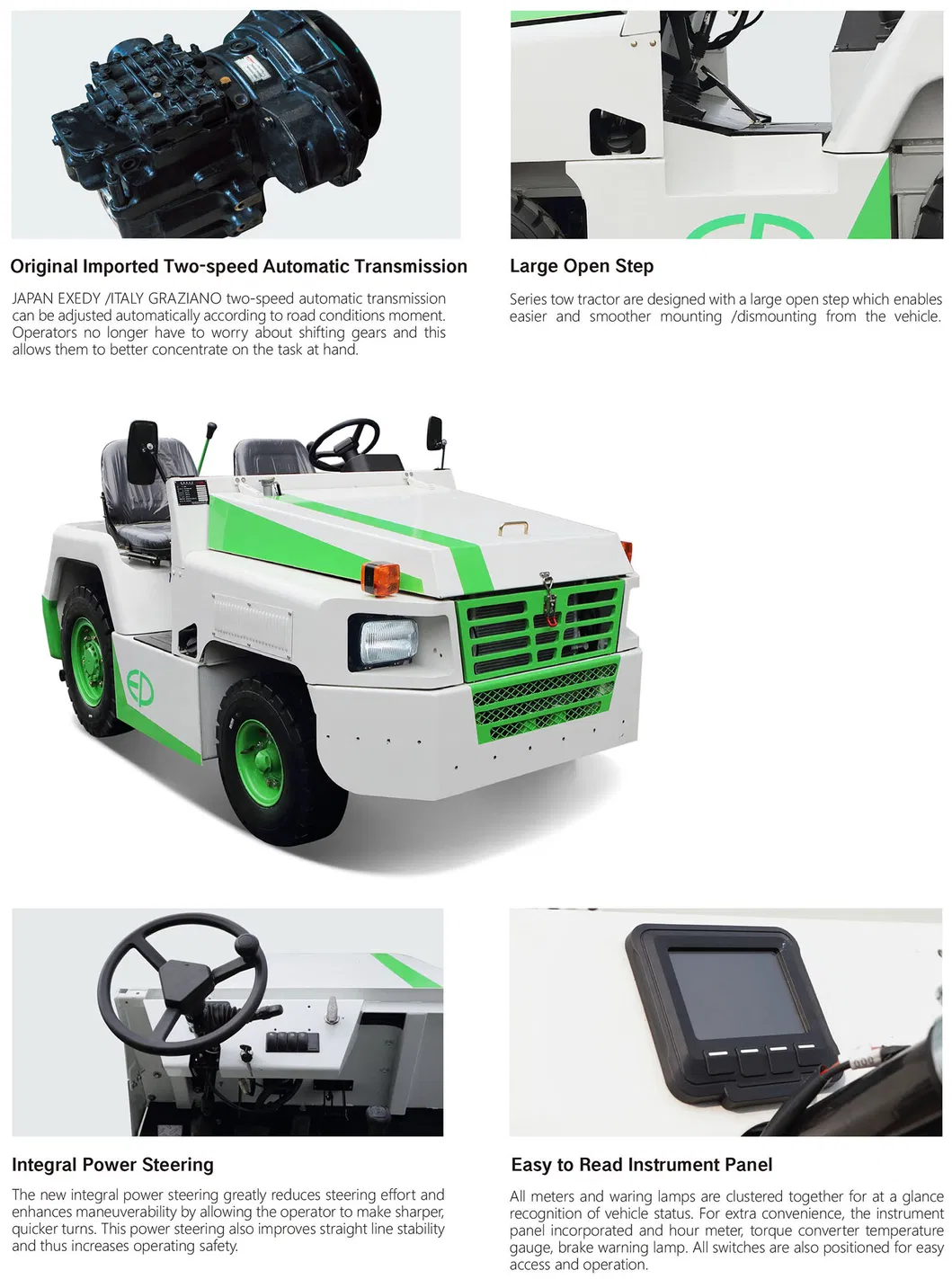

Exedy Kt

Service Brake

Hydraulic Drum Brake

Steering

Interal Power Steering

Specification

3180*1440*1440mm

HS Code

8427209000

Production Capacity

2000 Units/Year

Product Description

Main Specifications

Category	Parameter	Unit	EQC202-BDS	EQC252-BDS	EQC302-BDS	EQC352-BDS
Performance	Max. drawbar pull	KN	20	25	30	35
	Max. towed weight	kg	25000	32000	38000	44000
	Travel speed (Forward)	km/h	25	25	25	27
	Max. gradeability	%	38	38	35	35
Dimensions	Overall length	mm	3015	3015	3015	3180
	Overall width	mm	1440	1440	1440	1440
	Wheelbase	mm	1620	1620	1620	1605
	Min. turning radius	mm	3000	3000	3000	3000
Engine	Engine Model	-	(MITSUBISHI) S4S			(MITSUBISHI) S4S-DT
	Rated output	kw/rpm	47/2500			55/2500
	Rated torque	N.m/rpm	200/1600			245/1600

Our Comprehensive Services

We provide excellent before, during, and after-sales service providers with an integrated online service system:

Online claim system
Online technique system
Online forklift tracking system
Online spare parts order system

The online service and 24-hour reply system ensure customers receive the most cost-efficient support.

Global Network

A sales network has been established with more than 300 distributors in around 40 countries worldwide, providing quick and professional service.

Frequently Asked Questions

1. What is the maximum towing capacity of the EQC352-BDS? The EQC352-BDS model has a maximum towed weight capacity of 44,000kg on dry, even concrete surfaces.

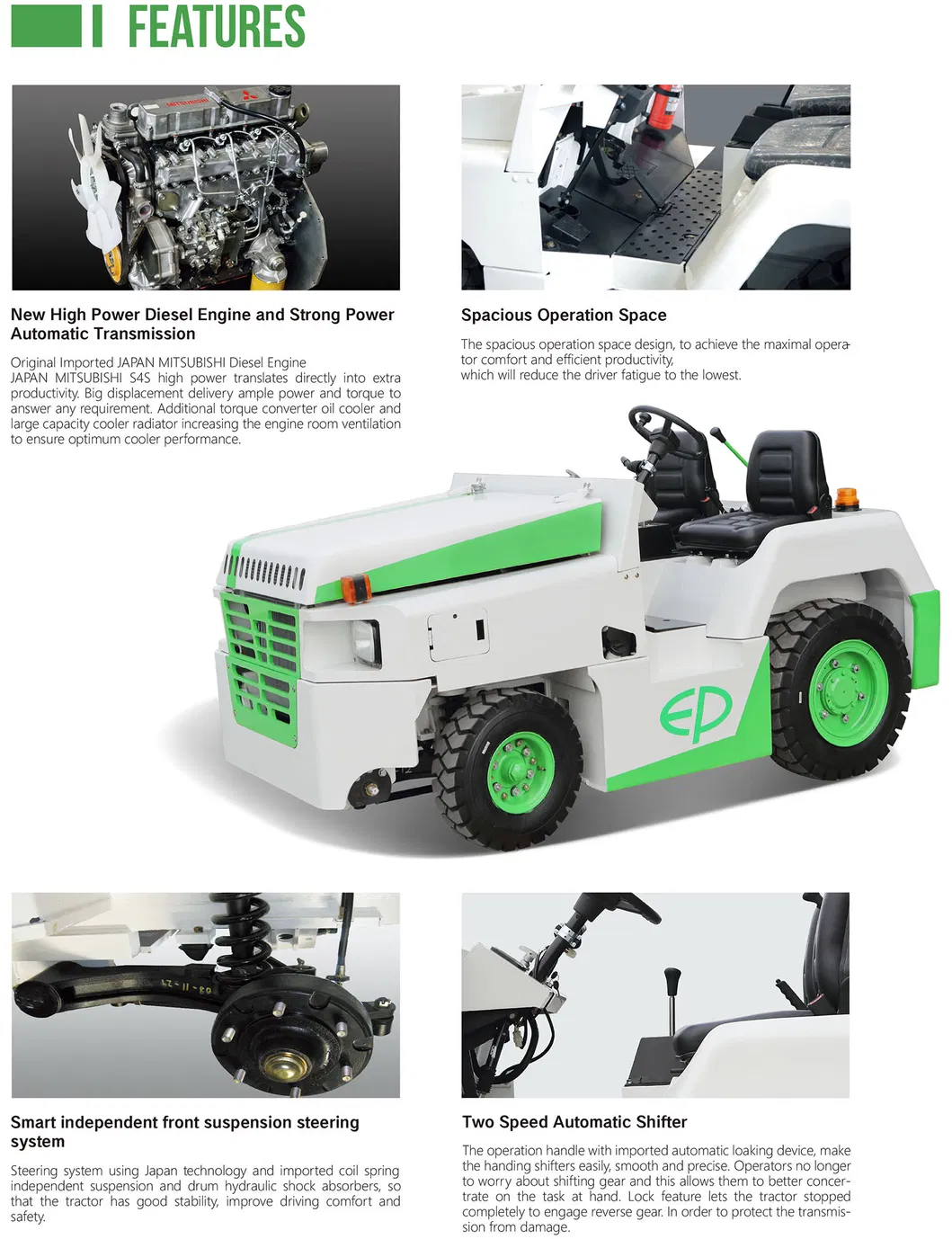

2. Which engine is used in this towing tractor? It is powered by a reliable Mitsubishi S4S Diesel Engine (with the S4S-DT variant for higher output models).

3. What are the key brake systems installed? It features a Hydraulic Drum Brake for service braking and an "Acting on Driving Wheel" brake for parking.

4. Does the vehicle support power steering? Yes, the tractor is equipped with Integral Power Steering for easier maneuverability with a 3000mm minimum turning radius.

5. What is the maximum drawbar pull of this equipment? The equipment provides a maximum drawbar pull of 35kN.

6. Is there an online system for spare parts? Yes, a professional online spare parts order system is available alongside technical and tracking support.
