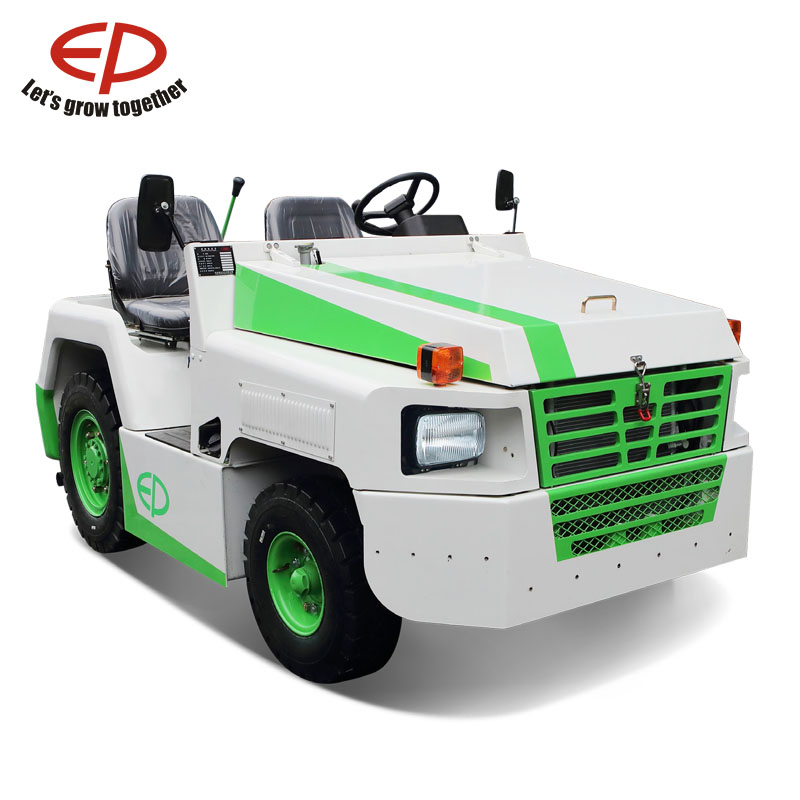

2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment
2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment
2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment
2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment
2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment
1 / 5
2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment
2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment
2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment
2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment
2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment

2.5 Ton Diesel Engine Powered Airport Baggage Towing Equipment

Customization: Available
Transmission Type: Automatic
Power: Diesel
Send Inquiry

Product Description

Technical Specifications

Model NO.
EQD252-BDS
Load Capacity
25kn
Emission Standard
Euro 3
Engine
(Mitsubishi) S4s
Max. Towed Weight
32000kg
Travel Speed
25/22 Km/H
Transmission
(Exedy) KT Automatic
Max. Gradeability
38%
Steering
Integral Power Steering
Turning Radius
3000mm
Overall Dimension
3015*1440*1450mm
Service Weight
3900kg

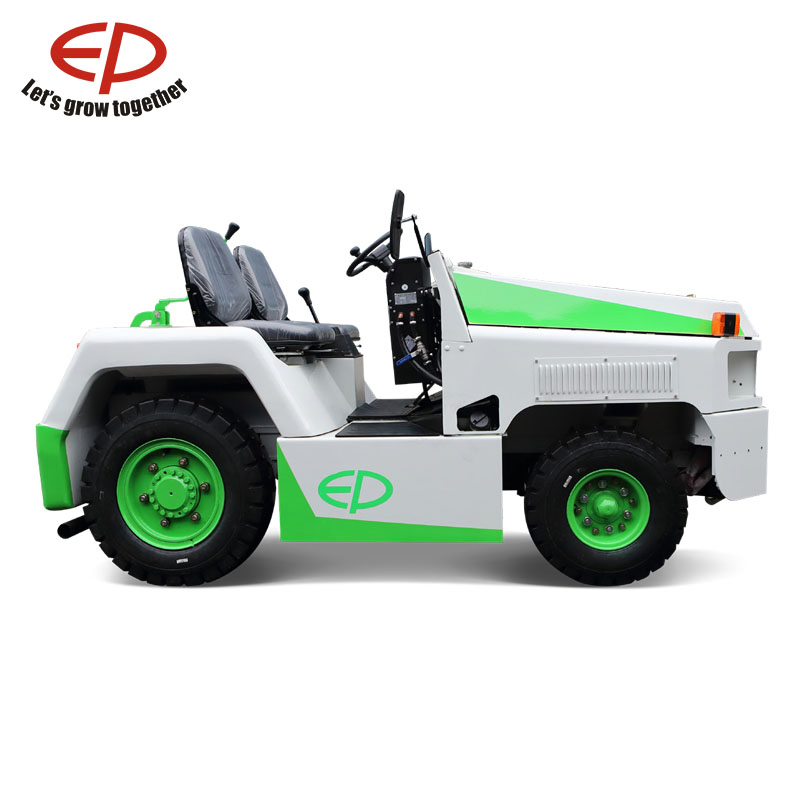

Airport Baggage Towing Equipment Side View

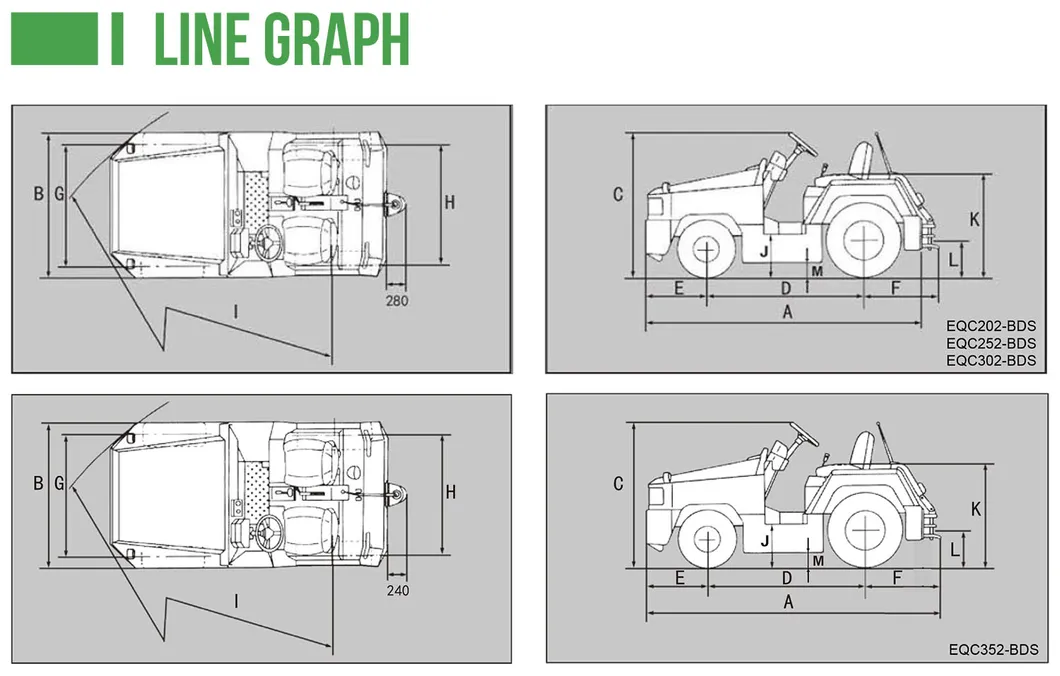

Airport Baggage Towing Equipment Dimension Diagram

Performance Parameters

Performance Details Unit EQC202-BDS EQC252-BDS EQC302-BDS EQC352-BDS
Max. Drawbar Pull KN 20 25 30 35
Max. Towed Weight (Dry Concrete) kg 25000 32000 38000 44000
Travel Speed (Forward/Backward) km/h 25 / 22 25 / 22 25 / 22 27 / 13
Max. Gradeability (No Load) % 38 38 35 35
Engine Model - MITSUBISHI S4S MITSUBISHI S4S-DT
Displacement cm³ 3331
Rated Output kw/rpm 47 / 2500 55 / 2500
Overall Length (with coupler) mm 3015 3180
Min. Turning Radius mm 3000
Transmission Model - EXEDY KT (Hydraulic) Graziano PST2

Product Gallery

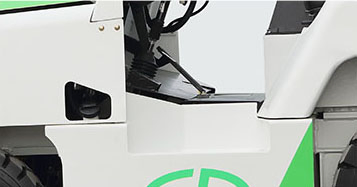

Internal Component Detail
Chassis and Tire Detail
Rear Coupler System

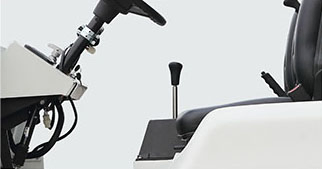

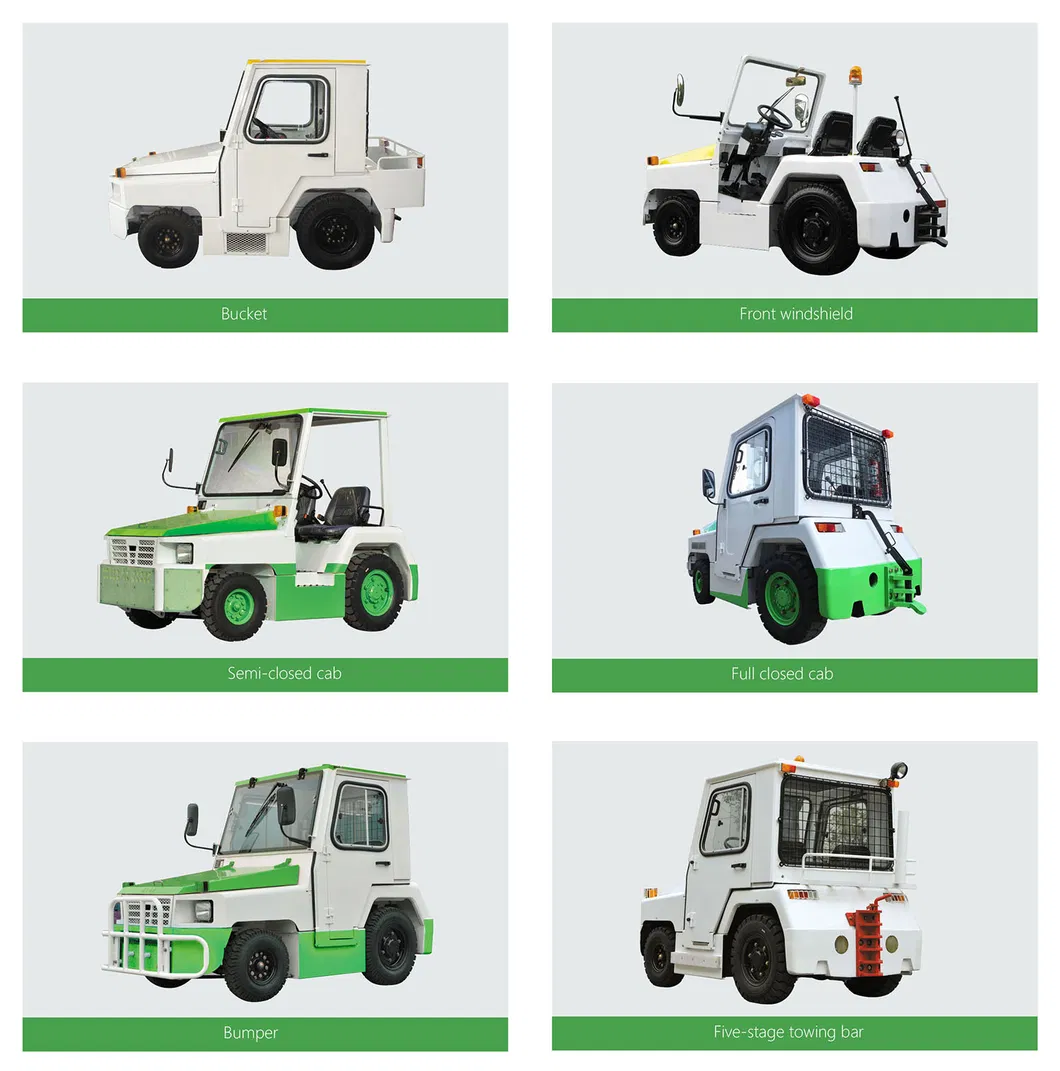

Driver Cockpit and Controls

Frequently Asked Questions

What is the maximum towing capacity of the EQD252-BDS?
The EQD252-BDS model is capable of towing a maximum weight of 32,000kg with one trailer on a dry, even concrete surface.
Which engine is installed in this airport towing equipment?
It is powered by a high-performance Mitsubishi S4S diesel engine, known for its reliability and efficiency in industrial applications.
What type of transmission does the vehicle use?
The equipment features an Exedy KT hydraulic automatic transmission for smooth power delivery and ease of operation.
Can this equipment handle slopes?
Yes, it has a maximum gradeability of 38% under no-load conditions, making it suitable for various airport ramp environments.
What is the turning radius for navigating tight airport spaces?
The vehicle offers a minimum outer turning radius of 3000mm, ensuring excellent maneuverability in confined baggage handling areas.
What are the safety braking features?
It is equipped with a hydraulic drum brake as the service brake and a dedicated brake acting on the driving wheels for parking.
