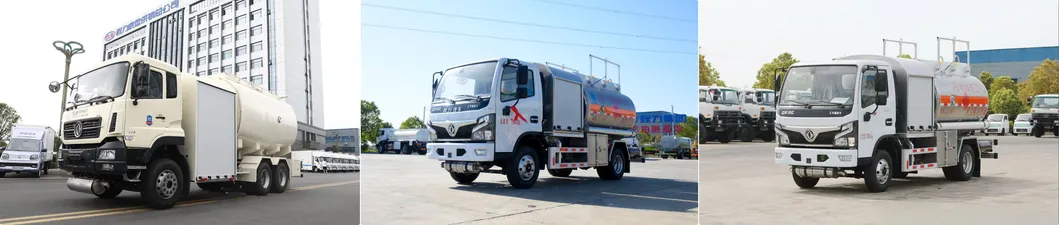

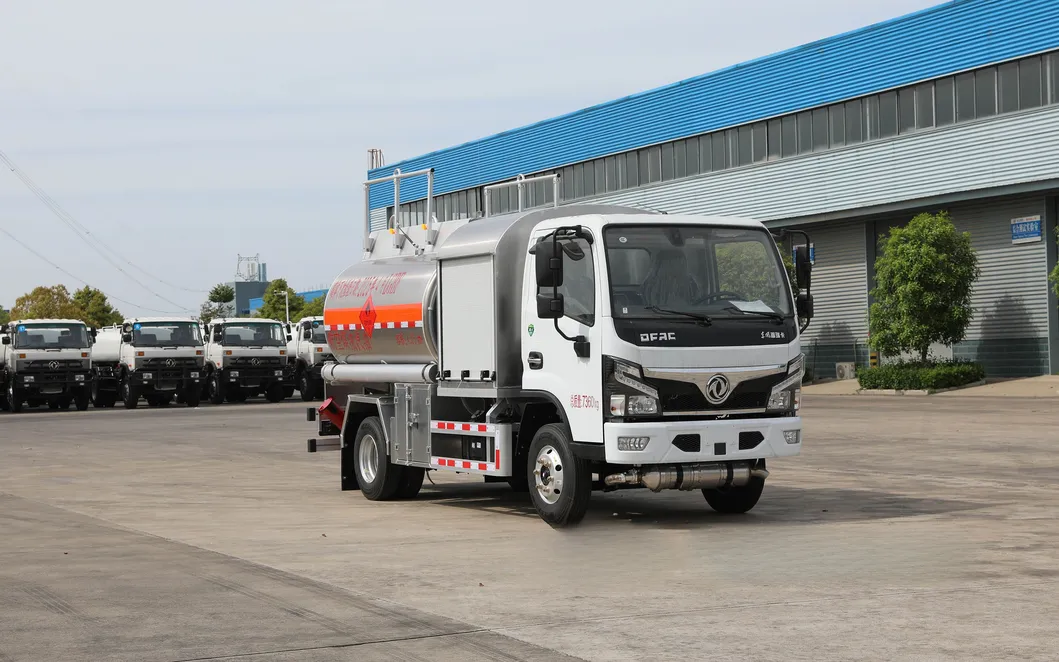

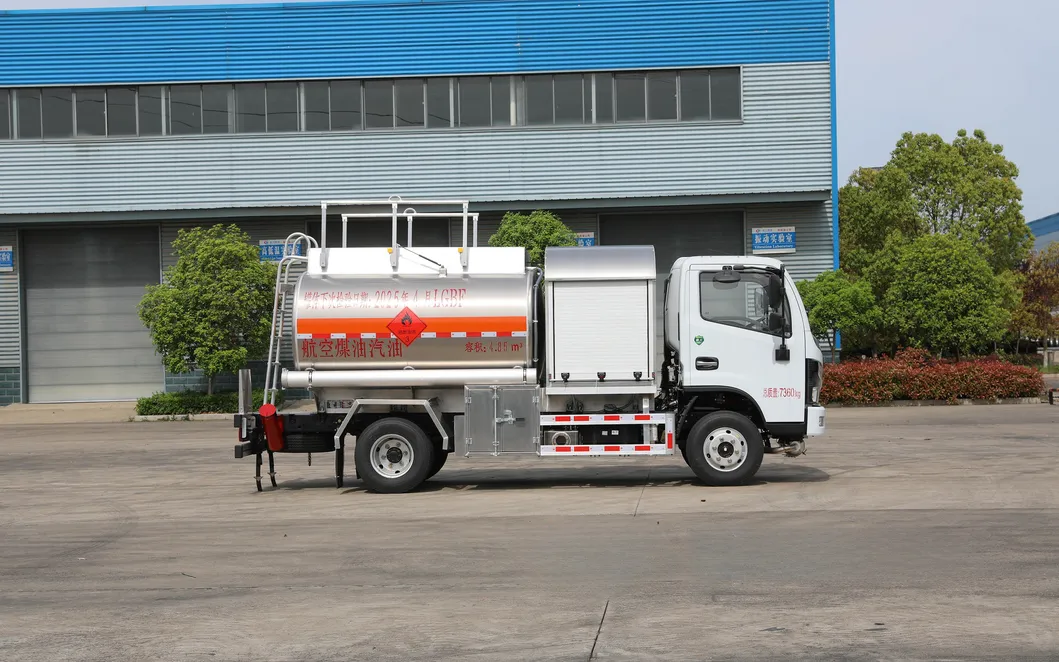

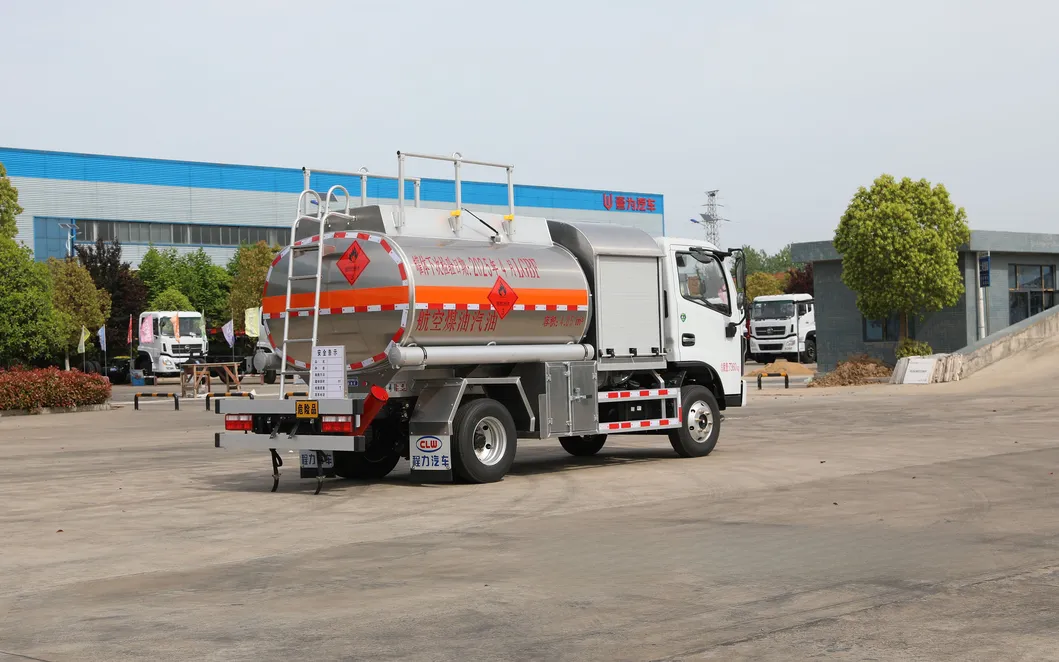

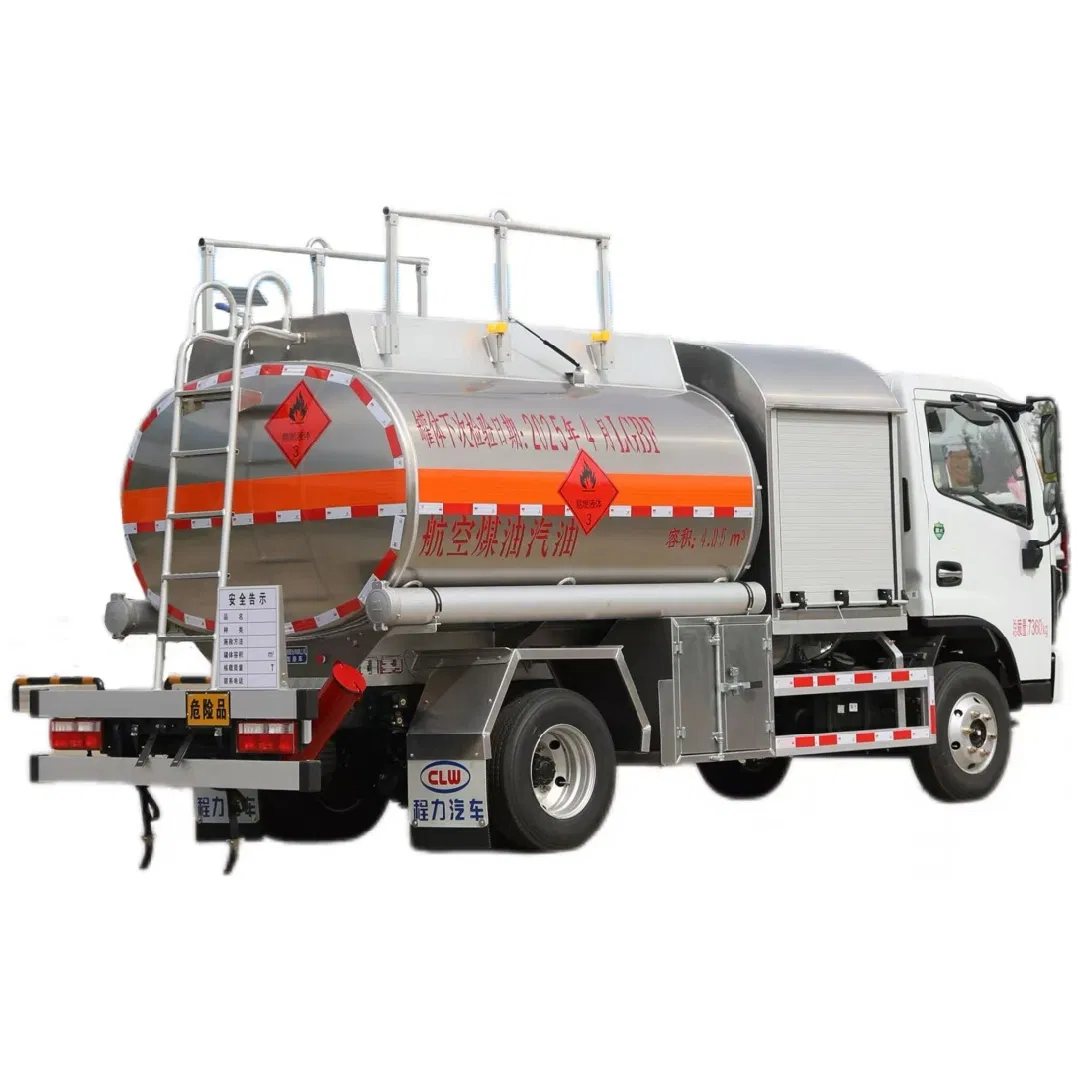

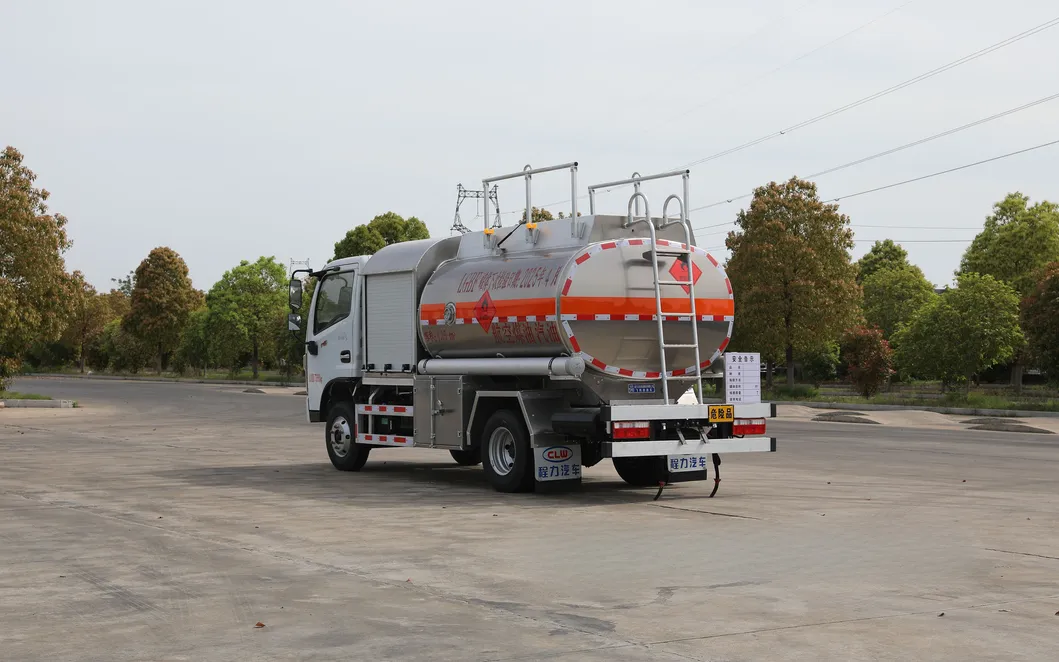

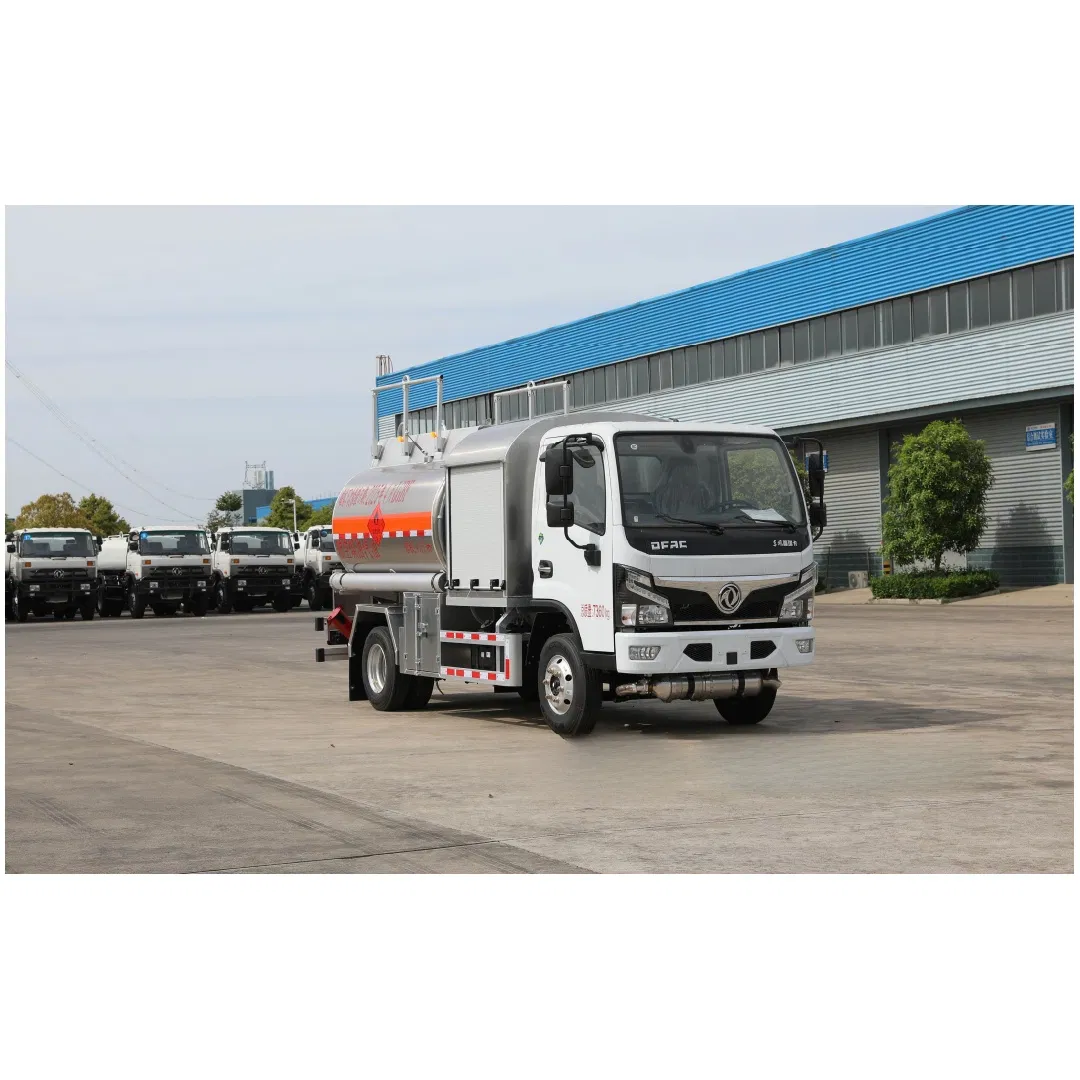

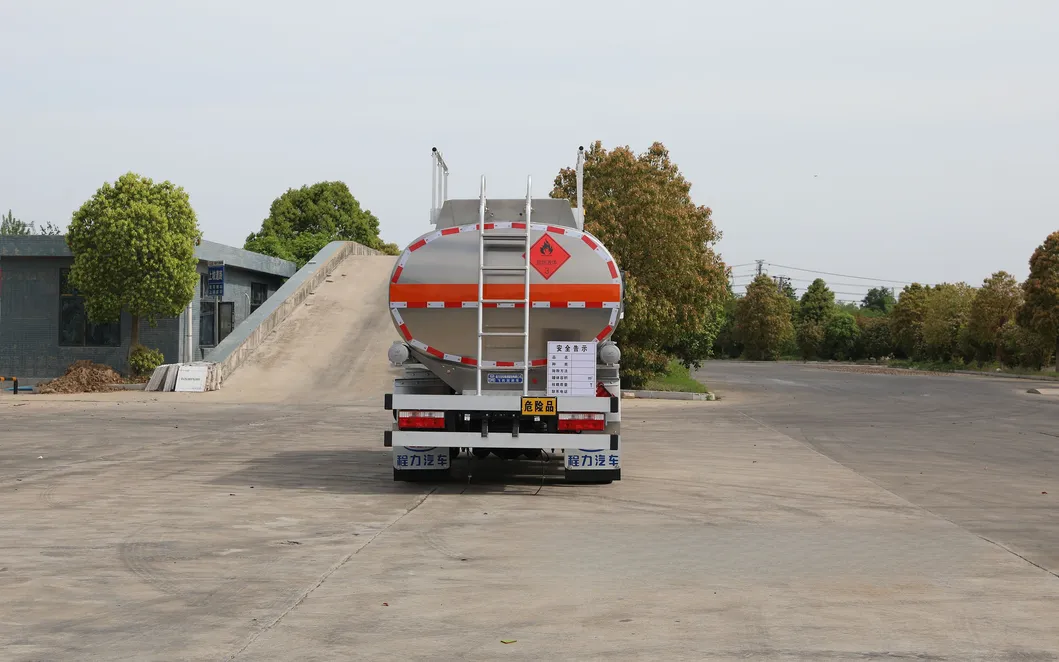

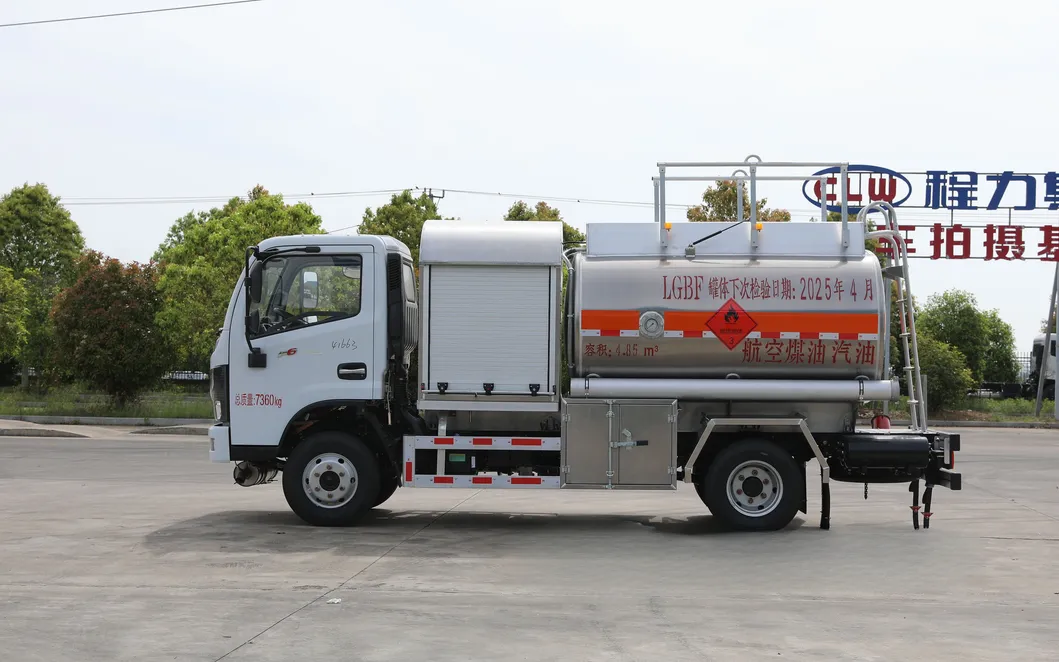

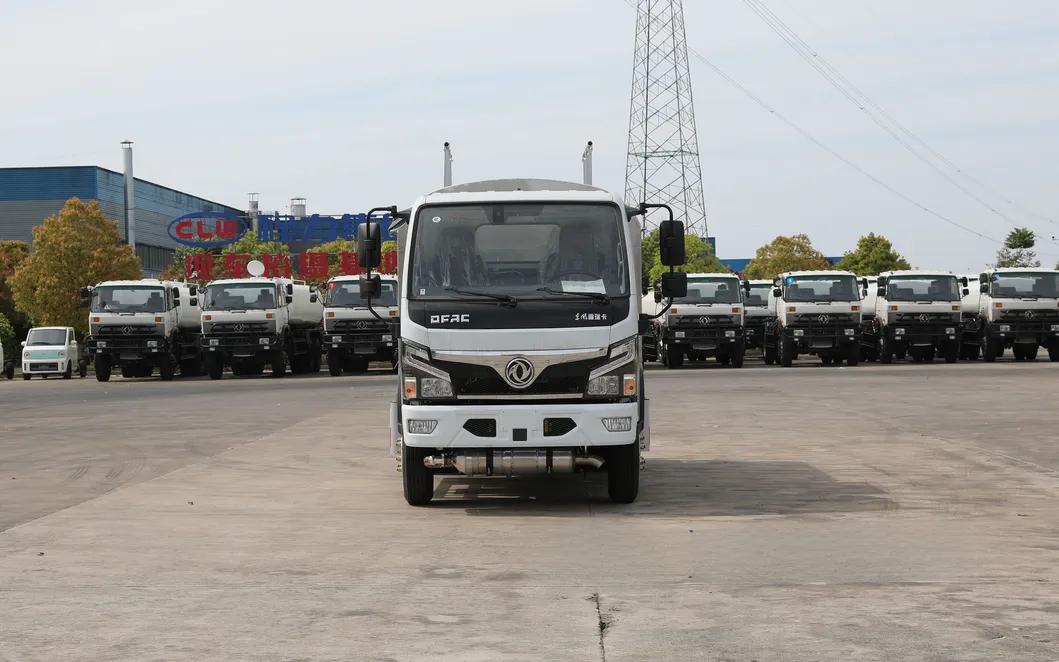

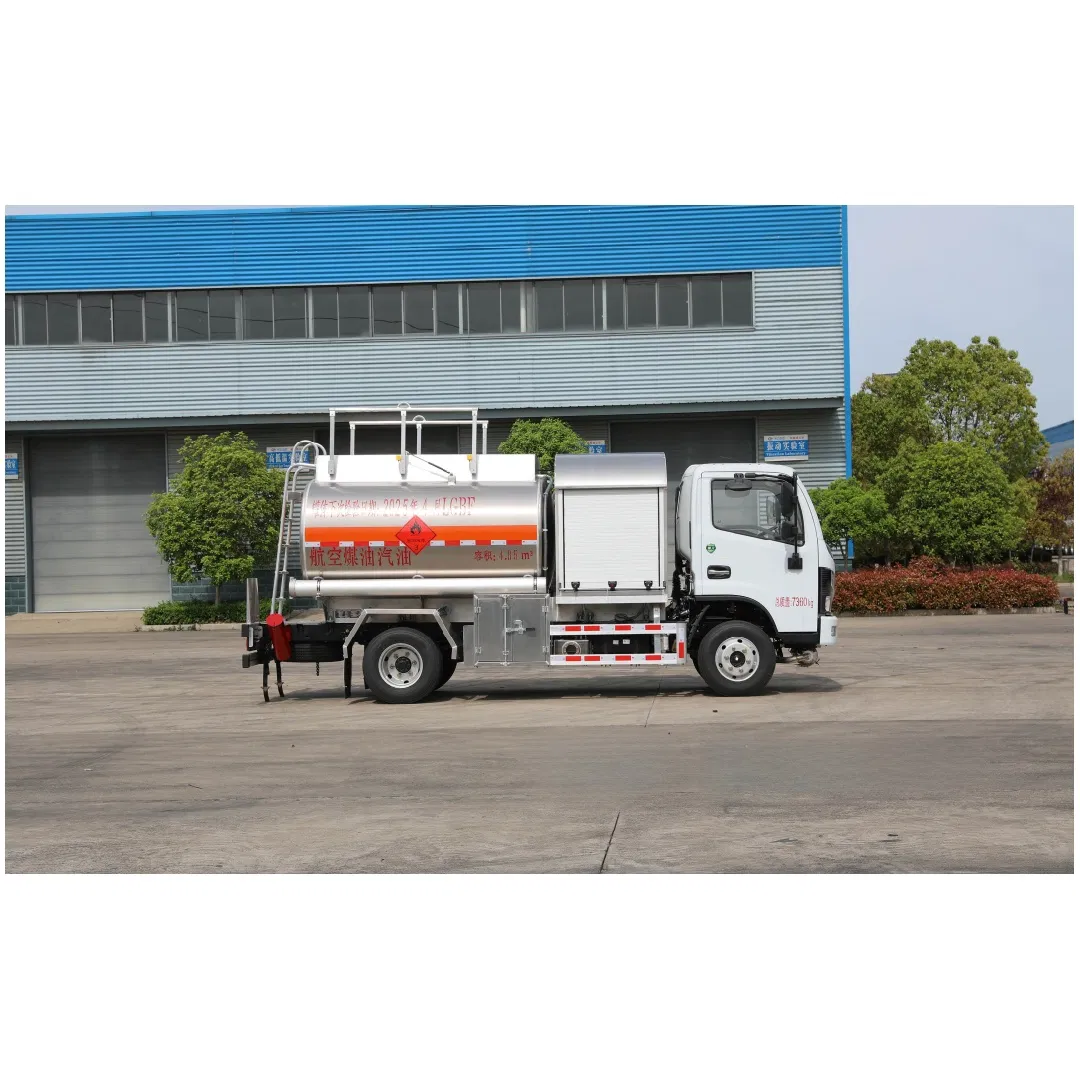

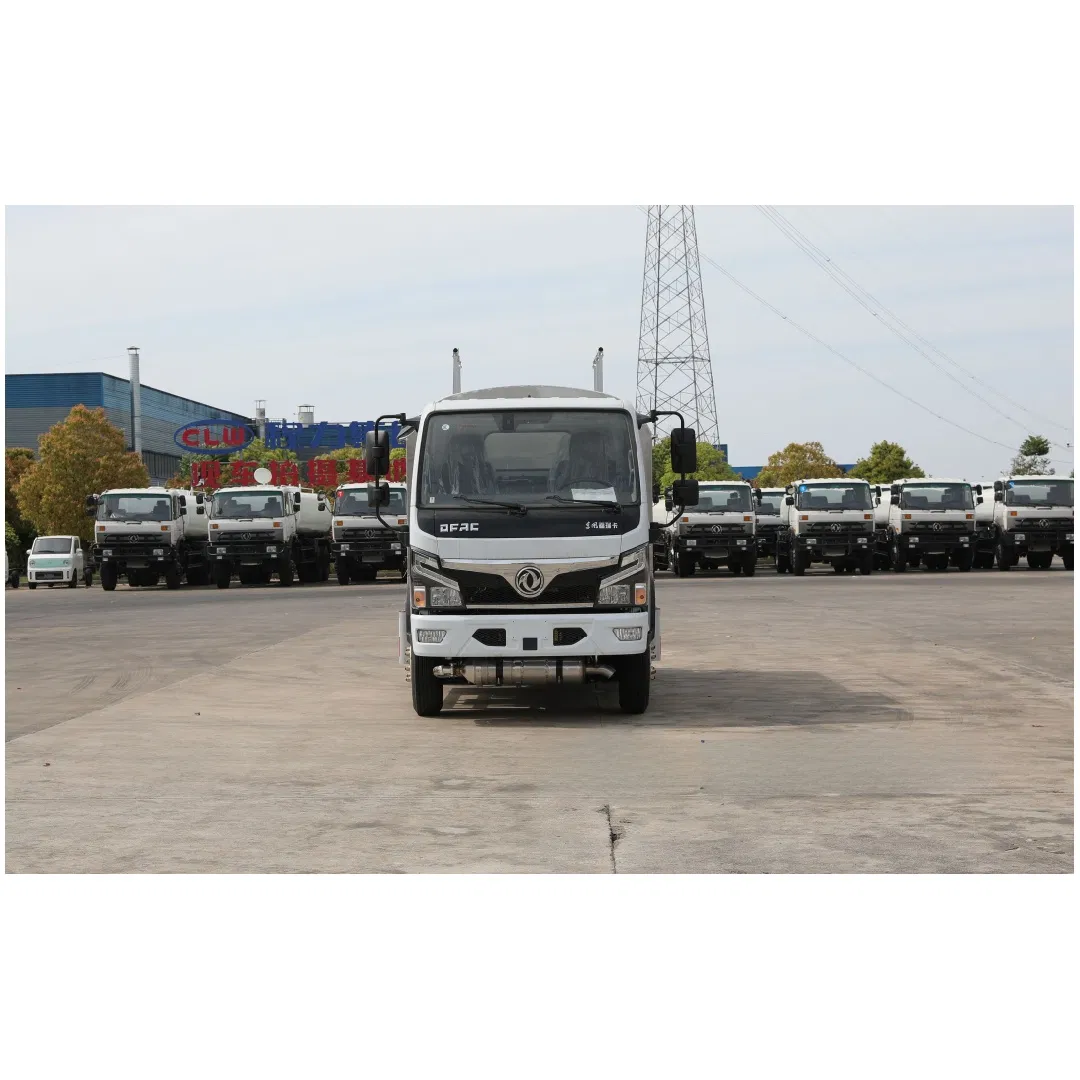

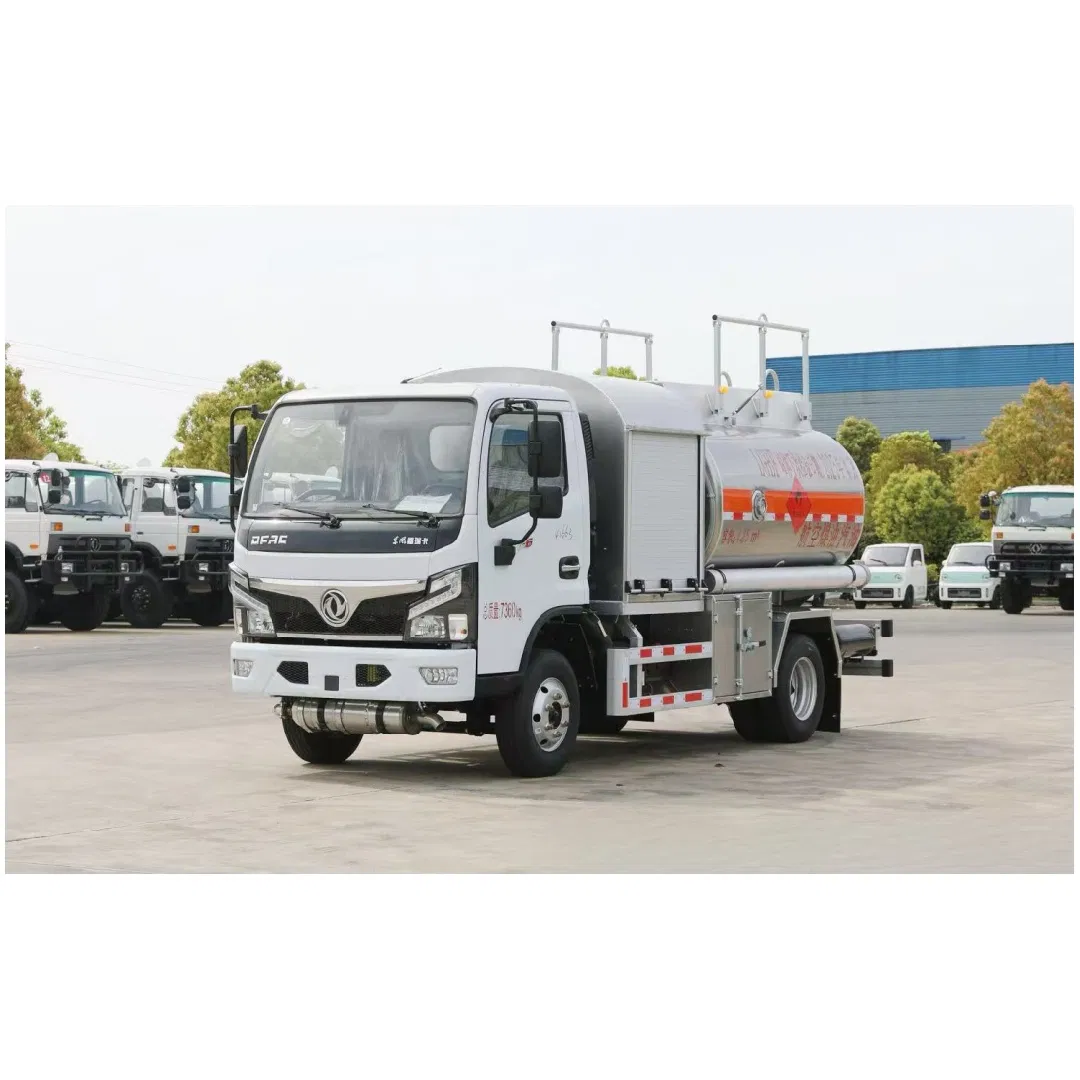

Aircraft Refueling Vehicle: Efficient and Steady Supply of Aviation Fuel
The aircraft refueling vehicle is a highly efficient and stable airport ground support equipment (GSE) developed for civil and military airports, airlines, and aviation maintenance facilities. It provides fast and safe refueling services for all types of aircraft. Equipped with advanced electronic control systems and hydraulic systems, the vehicle enables quick and safe aviation fuel dispensing, offering core support for the smooth and timely departure of aircraft.
Boasting industry-leading refueling speed and metering accuracy, the vehicle guarantees punctual and efficient air transport operations. In terms of safety, it is fitted with multiple protection devices and automatic shut-off mechanisms, which effectively prevent accidental risks such as fuel overflow and fire, thereby safeguarding overall airport safety.
| Vehicle Main Technical Information | |
| Gross Vehicle Weight | 7360 kg |
| Curb Weight | 3580 kg |
| Rated Weight | 3650 kg |
| Tank Capacity | 4.85 m³ |
| Wheelbase | 3308 mm |
| Overall Size (L*W*H) | 5940×2000×2700 mm |
| Max. Speed | 80 km/h |
| Chassis & Engine Parameters | |
| Chassis Brand | Dongfeng |
| Tire Specification | 7.00R16LT 14PR |
| Engine Displacement | 1999 ml |
| Engine Horsepower | 126 hp |
| Main Performance Parameters | |
| Refueling Pump | High-power centrifugal oil pump (mechanical sealed type) |
| Reel Refueling Nozzle | 1 inch: 70-90 L/min (Optional 1.5 inch: 150-250 L/min) |
| Pipeline Oil Suction | Flow rate: 700-800 L/min; Operating pressure: 0.25 MPa |
| Filter Separator | Rated flow: 400 L/min; Rated operating pressure: 1.0 MPa |

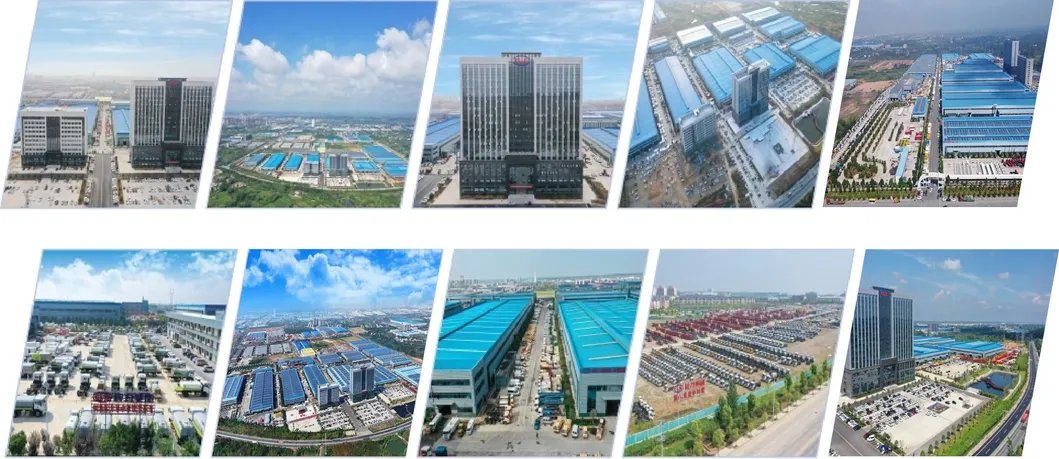

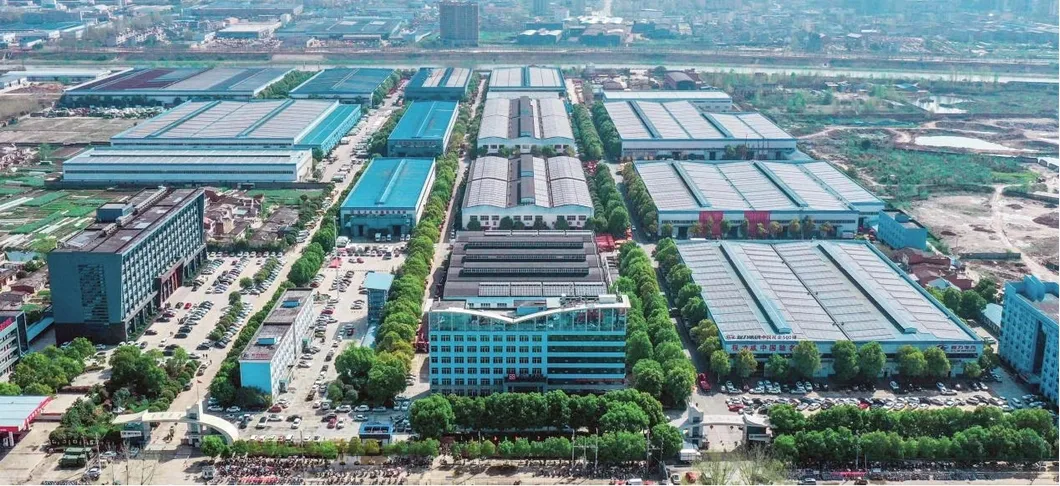

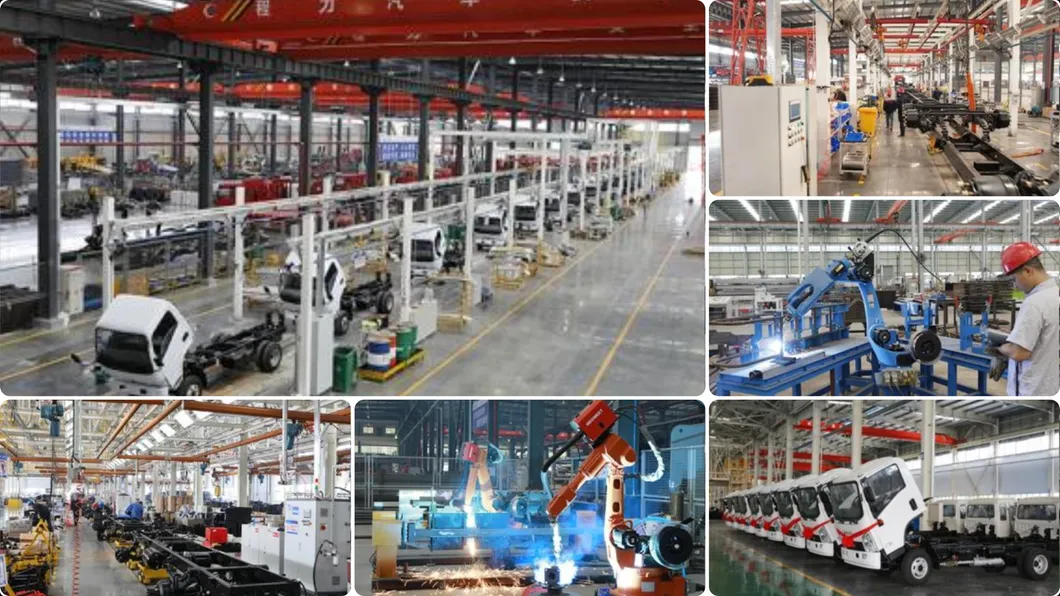

The manufacturer is a high-tech enterprise designated by the Ministry of Industry and Information Technology, specializing in the R&D and production of high-end special vehicles. Adhering to the concept of "Precision Manufacturing, Pursuit of Perfection," the factory is equipped with advanced technology and reliable quality control systems.
