Ep Diesel Airport Light Towable Self-Propelled Conveyor Belt Loader

1 / 5

Ep Diesel Airport Light Towable Self-Propelled Conveyor Belt Loader

Customization:	Available
Structure:	Belt Conveyor
Material:	Rubber

Send Inquiry

Product Description

Basic Specifications

Model NO.BLC801-CK

Material FeatureHeat Resistant

ApplicationBaggage/Cargo Transport

ConditionNew

EngineKohler

Fuel TypeDiesel

TransmissionOkamura

Self Weight3560kg

Conveyer Belt Width700mm

OriginChina

Product Details

Model	BLC801-CK
Engine	Kohler KDI 1903 TCR
Transmission	Okamura Y43280K

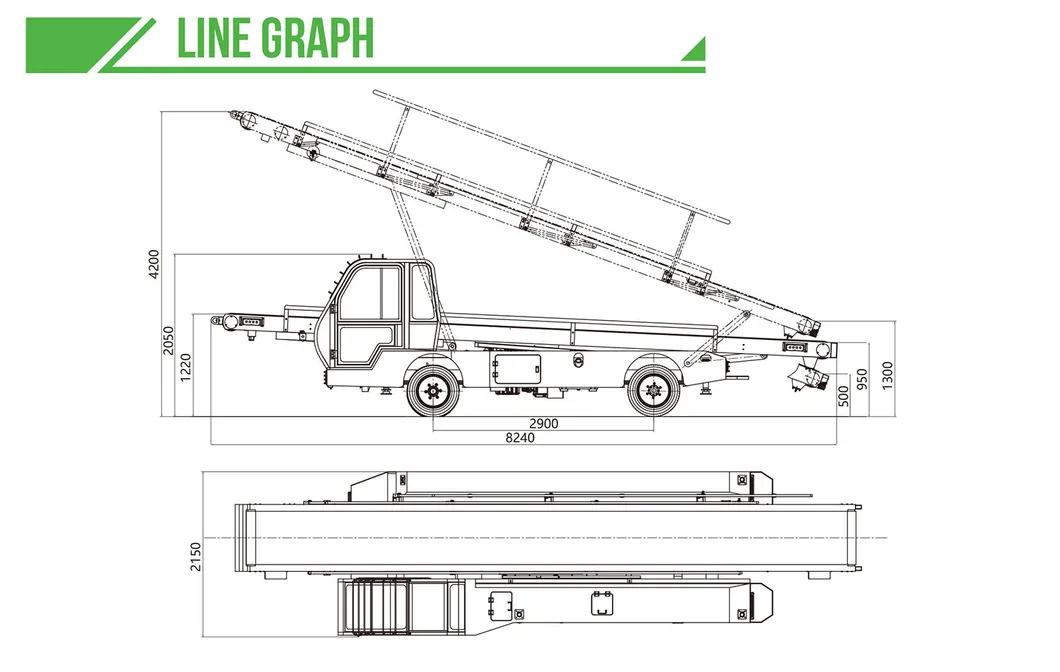

Overall Dimension (LWH)	8240mm * 2150mm * 2050mm
Wheelbase	2900mm
Max Turning Diameter	15800mm
Max Travelling Speed	30.2 km/h
Conveyer Frame (L*W)	8000mm * 880mm
Front Conveyor Height (Max/Min)	4200mm / 1220mm
Rear Conveyor Height (Max/Min)	1300mm / 500mm
Max Single Cargo Weight	400kg
Total Horizontal Transport Capacity	1080kg

Visual Display

Frequently Asked Questions

Q1: What engine is used in the BLC801-CK conveyor belt loader?

A1: The BLC801-CK is equipped with a high-performance Kohler KDI 1903 TCR engine, ensuring reliable power for airport operations.

Q2: What is the maximum lifting height of the conveyor belt?

A2: The front end of the conveyor can reach a maximum height of 4200mm, making it suitable for a wide range of aircraft types.

Q3: How much weight can the conveyor handle for a single piece of cargo?

A3: The system is designed to handle a maximum single cargo transportation gross weight of 400kg.

Q4: Is the conveyor belt material heat resistant?

A4: Yes, the material features are specified as heat resistant to ensure durability under various environmental conditions.

Q5: What is the fuel type and transmission system?

A5: This model runs on Diesel fuel and utilizes a professional-grade Okamura transmission system for smooth operation.

Q6: What is the maximum travelling speed of the vehicle?

A6: The BLC801-CK can reach a maximum travelling speed of 30.2 km/h, allowing for efficient movement across airport terminals.
