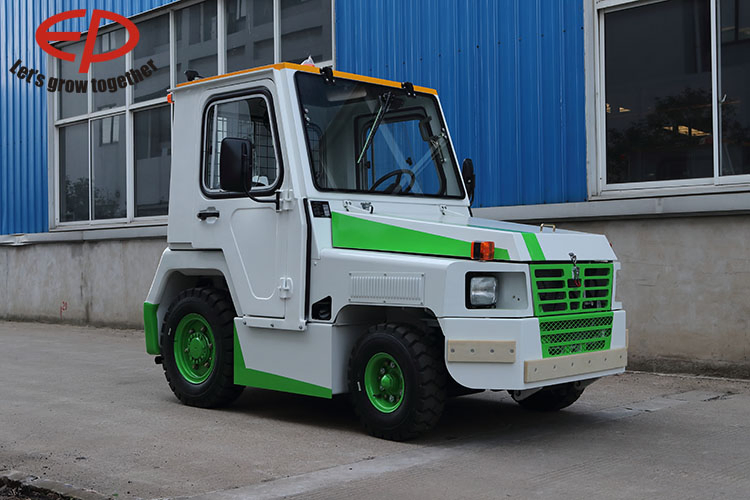

Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs
Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs
Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs
Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs
Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs
1 / 5
Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs
Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs
Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs
Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs
Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs

Diesel Electric Aircraft Airport Gse Towing Tractor Baggage Tow Tugs

Customization: Available
Cab Location: Adjustable
Type: Tow Tractor
Send Inquiry

Product Description

★ Basic Specifications
Model NO.
EQC252-BDS
Power Source
Diesel Engine
Load Capacity
2.0t
Fuel Type
Diesel
Condition
New
Engine Model
(Mitsubishi) S4s
Max. Drawbar Pull
20kn
Max. Towed Weight
25000kg
Travel Speed
25/22 Km/H
Max. Gradeability
38%
Turning Radius
3000mm
Service Weight
3900kg
Steering
Integral Power Steering
Brake System
Hydraulic Drum Brake
Origin
China
HS Code
8701909000
♦ Product Description & Gallery

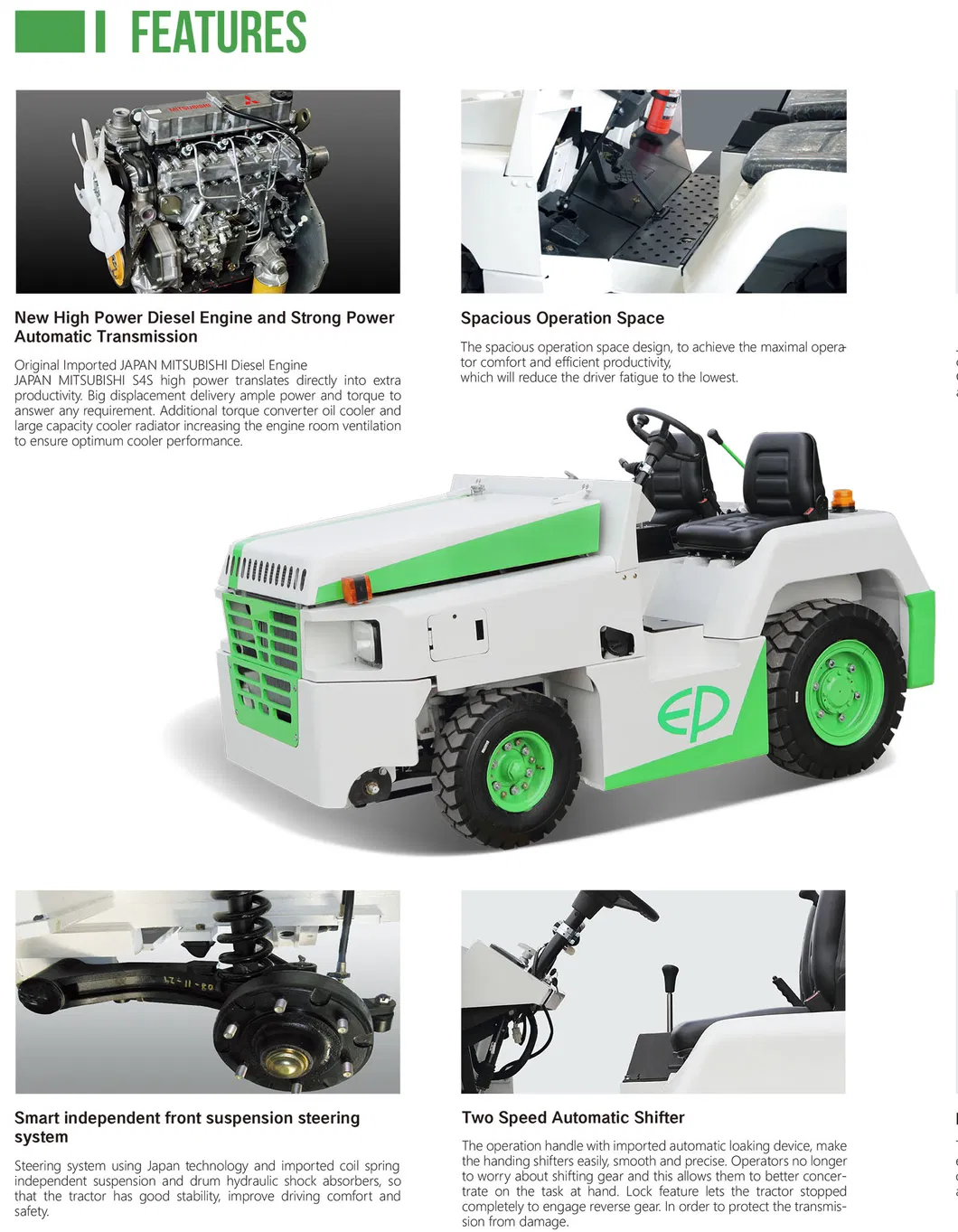

Diesel Towing Tractor Display

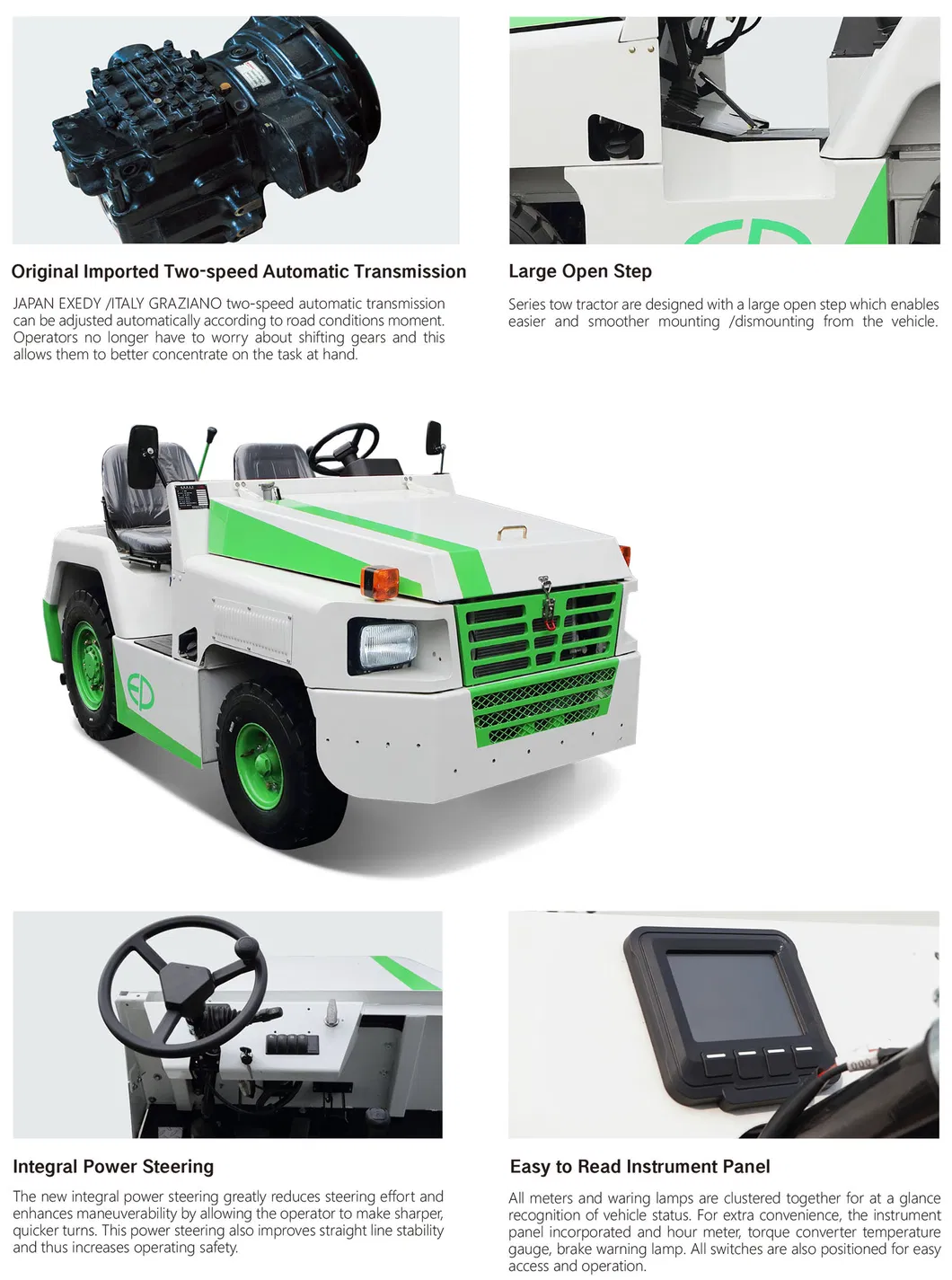

Baggage Tow Tugs Details
Category Technical Parameters Unit EQC202-BDS EQC252-BDS EQC302-BDS EQC352-BDS
Performance Max. drawbar pull KN 20 25 30 35
Max. towed weight (dry concrete) kg 25000 32000 38000 44000
Max. travel speed (Forward) km/h 25 25 25 27
Dimensions Overall length (with coupler) mm 3015 3015 3015 3180
Overall width mm 1440 1440 1440 1440
Wheelbase mm 1620 1620 1620 1605
Min. turning radius (Outer) mm 3000 3000 3000 3000
Engine Model - (MITSUBISHI) S4S (MITSUBISHI) S4S-DT
Rated output kw/rpm 47/2500 55/2500
Rated torque N.m/rpm 200/1600 245/1600
Brake Service Brake - Hydraulic Drum Front Drum & Rear Disc
Parking Brake - Acting On Driving Wheel Brake

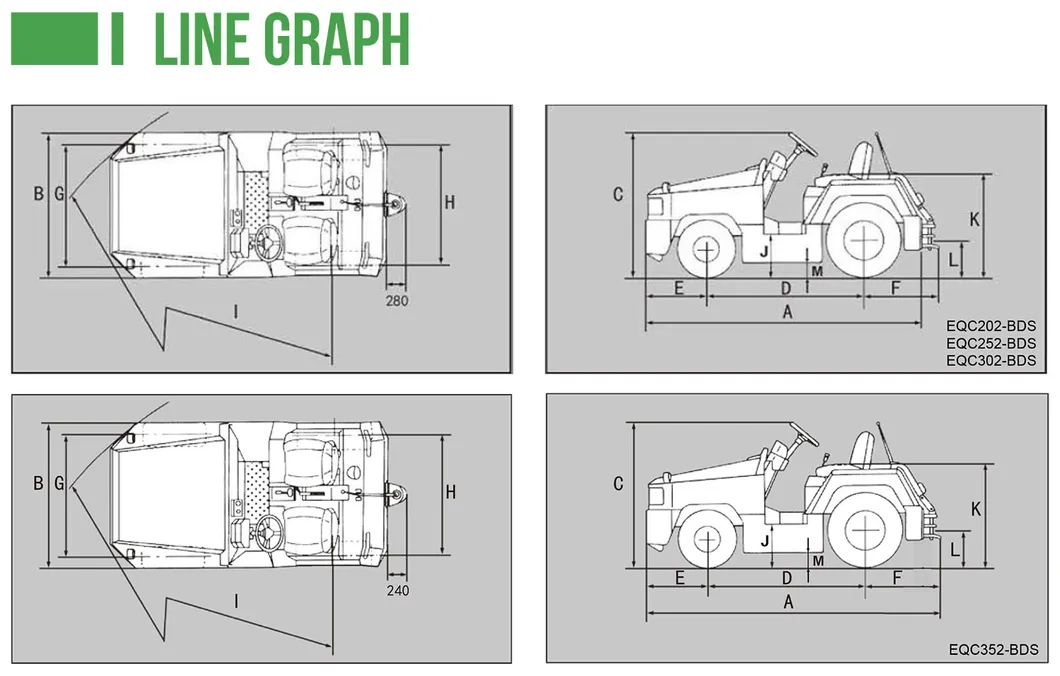

Towing Tractor Component 1

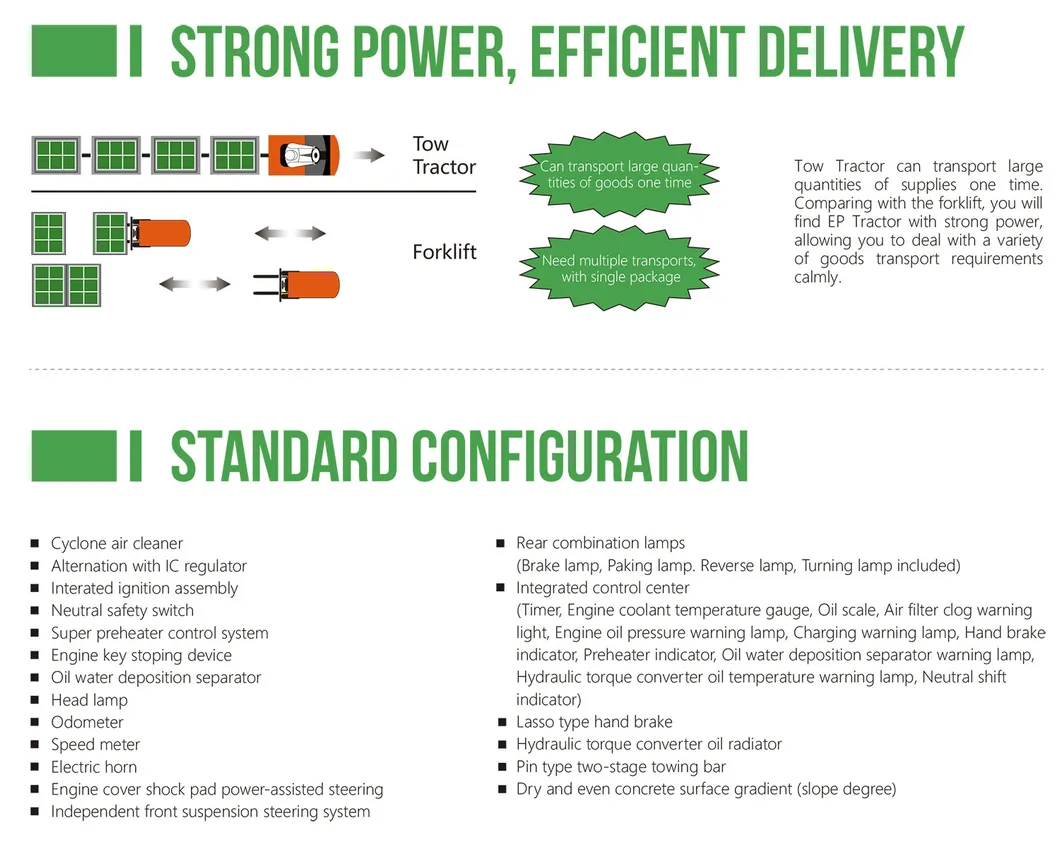

Towing Tractor Component 2

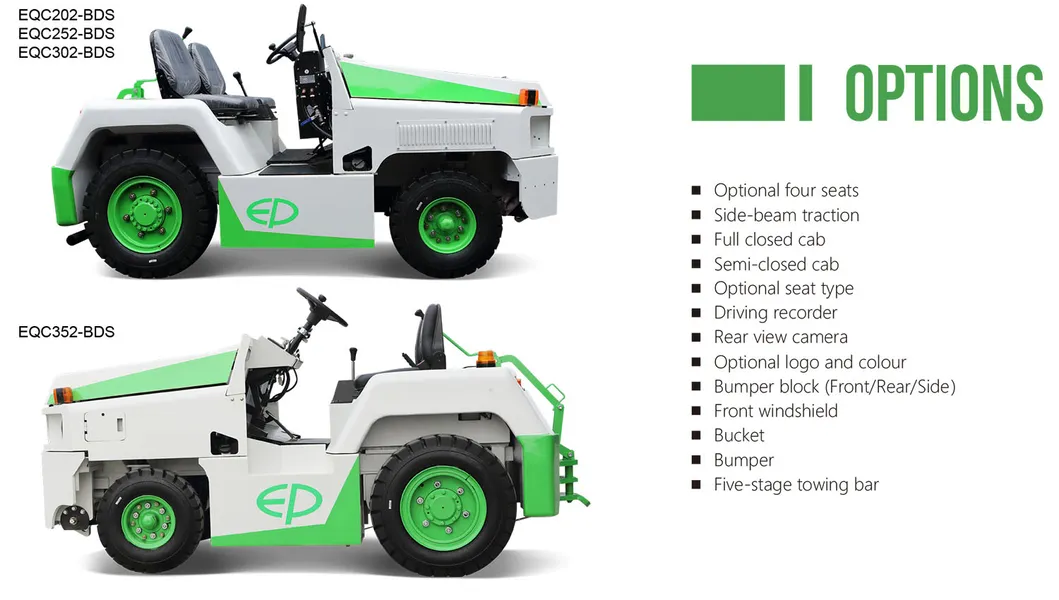

Towing Tractor Component 3

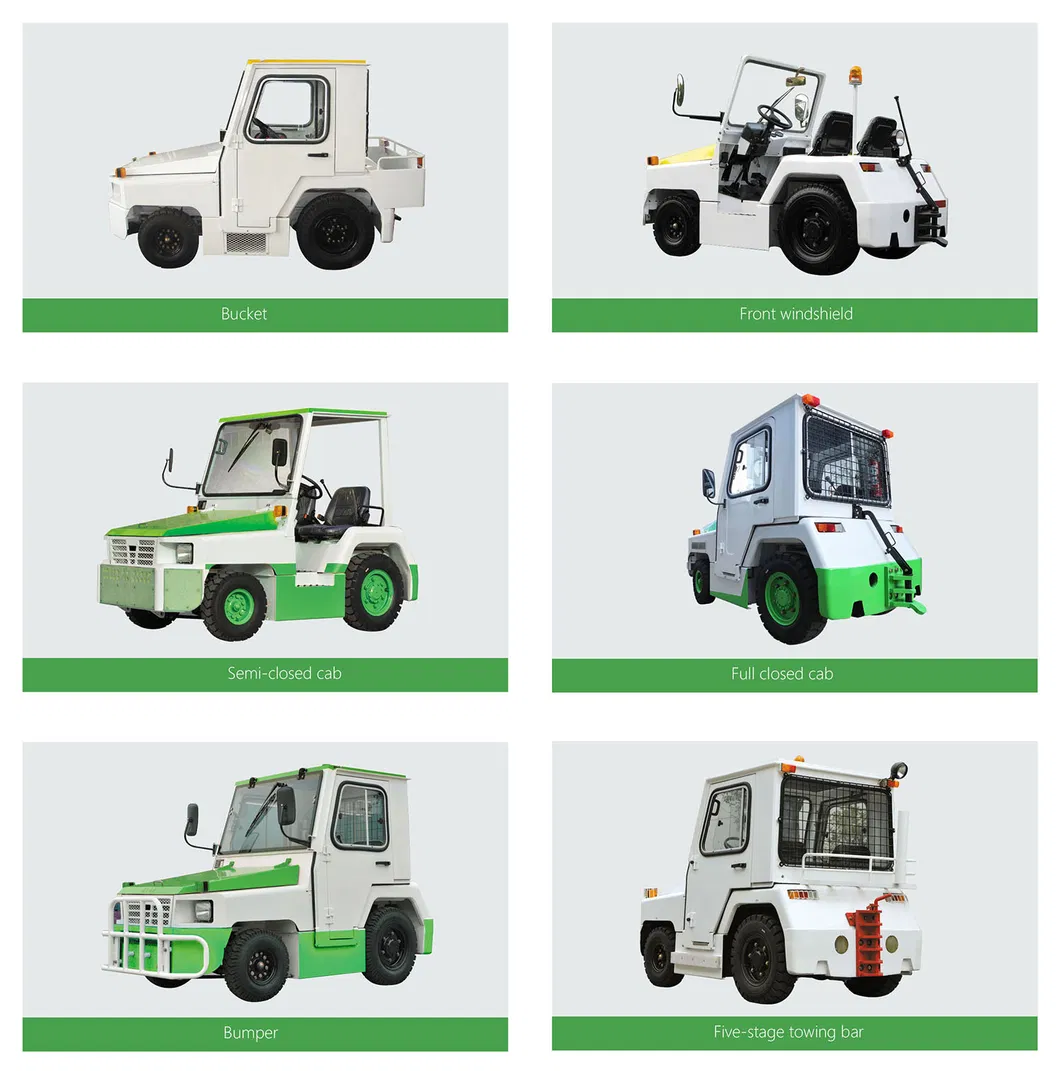

Towing Tractor Full View
Frequently Asked Questions
? What is the maximum towing capacity of the EQC252-BDS?
The EQC252-BDS model features a maximum towed weight capacity of 25,000kg (25 tons) on dry, even concrete surfaces.
? Which engine is used in this towing tractor?
This vehicle is equipped with a high-performance Mitsubishi S4S diesel engine, known for its reliability and rated output of 47kw at 2500rpm.
? What are the primary safety braking features?
It utilizes a hydraulic drum brake system for service braking and a dedicated parking brake that acts directly on the driving wheel for maximum safety.
? Is the steering system easy to operate?
Yes, the tractor is equipped with Integral Power Steering, providing smooth and effortless maneuverability with a turning radius of 3000mm.
? What is the travel speed of the EQC series?
The series offers a forward travel speed of up to 25-27 km/h and a backward speed of approximately 22 km/h, ensuring efficient ground support operations.
