Diesel Engine Powered Aviation Baggage/Luggage Conveyor Belt Loader Gse

Customization: Available
Cab Location: Adjustable
Type: Conveyor Belt Loader

Product Description

Aviation Baggage Conveyor Belt Loader
📋 Basic Specifications
Model NO.
BLC801-CK
Power
Diesel Engine
Load Capacity
1080kg
Fuel
Diesel
Lift height
Max 4200mm
Condition
New
Turning Diameter
15800mm
Max Speed
30.2 Km/H
Belt Width
700mm
Engine Model
Kohler
Tyre Type
Pneunatic
Certification
Ce/ISO9001
🛠️ Technical Details
ModelBLC801-CKEngineKohler KDI 1903 TCR
TransmissionOkamura Y43280KOverall Length8240 mm
Overall Width2150 mmOverall Height2050 mm
Wheelbase2900 mmTread (Front/Rear)1730/1680 mm
Approach Angle12.7°Departure Angle20.3°
Self Weight3560 kgMax Travelling Speed30.2 km/h
Conveyor Length8000 mmConveyor Width880 mm
Belt Width700 mmMax Lift Height4200 mm
Max Loading1080 kgSingle Cargo Max400 kg

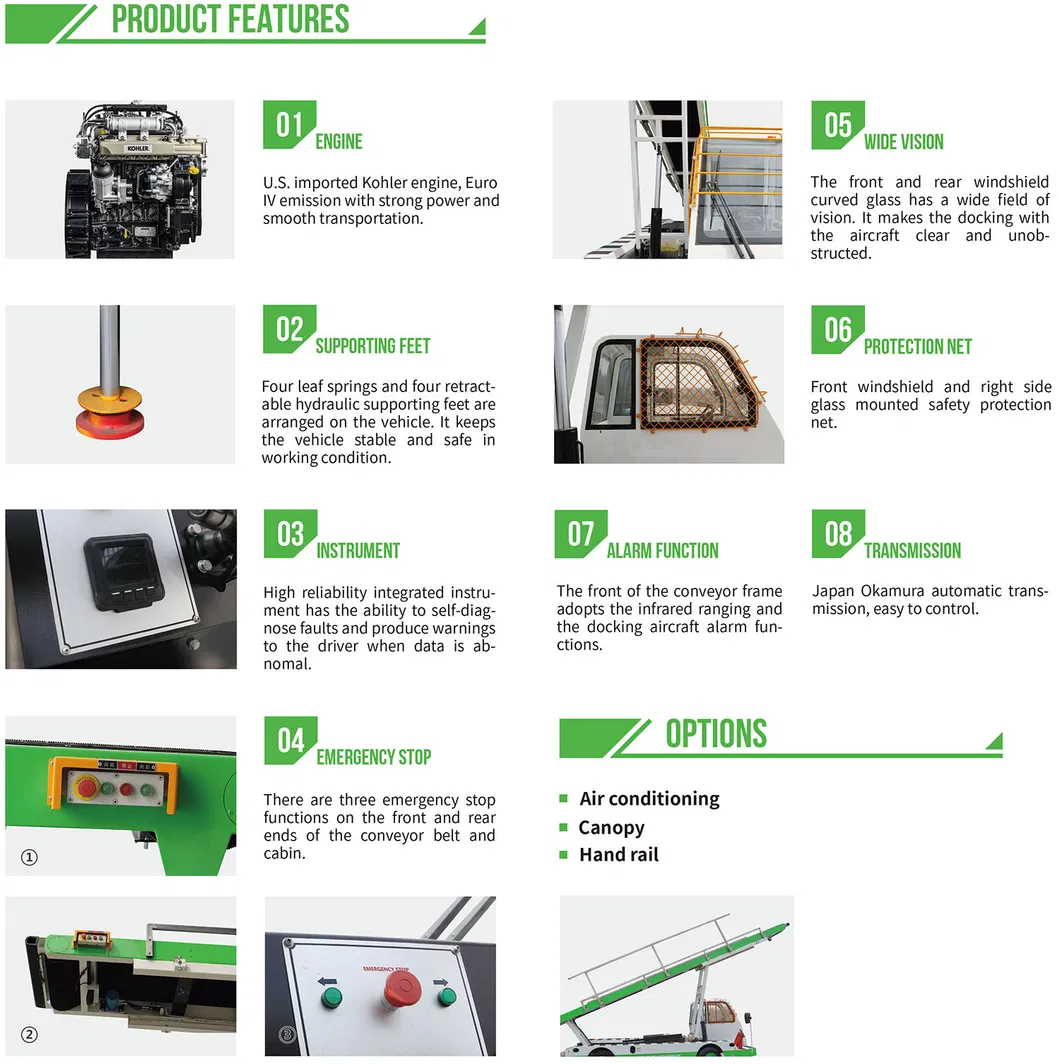

Conveyor Belt Loader Details
🌟 Professional Service Support

Providing excellent before, during, and after-sales service. We utilize a comprehensive online system to ensure efficiency:

📝
Online Claim System
🔧
Online Technique System
🛰️
Tracking System
📦
Spare Parts System
🌍 Global Network

With an established sales network featuring more than 300 distributors in around 40 countries, we provide quick and professional service worldwide.

Global Service Network Map
❓ Frequently Asked Questions
What is the maximum load capacity of the BLC801-CK?
The maximum total transport weight during horizontal transportation is 1080kg, with a maximum single cargo weight of 400kg.
What engine powers this baggage loader?
This model is equipped with a high-performance Kohler KDI 1903 TCR diesel engine.
What are the conveyor belt's lifting capabilities?
The front end of the conveyor can reach a maximum height of 4200mm and a minimum height of 1220mm, suitable for various aircraft types.
How fast can the vehicle travel?
The vehicle can reach a maximum travelling speed of 30.2 km/h, ensuring efficient airport ground operations.
What is the turning diameter of the unit?
It features a maximum turning diameter of 15800mm, providing necessary maneuverability in airport environments.
Is the conveyor belt suitable for heavy luggage?
Yes, with a 700mm belt width and robust frame, it is designed for heavy-duty aviation baggage and luggage handling.
