Customization: Available
Transmission Type: Automatic
Power: Diesel
Send Inquiry

Product Description

Basic Information
Model NO.
EQD252-BDS
Load Capacity
25kn
Emission Standard
Euro 3
Engine
(Mitsubishi) S4s
Max. Towed Weight
32000kg
Travel Speed
25/22 Km/H
Max. Gradeability
38%
Transmission
(Exedy) Kt
Steering
Integral Power Steering
Wheelbase
1620mm
Turning Radius
3000mm
Condition
New
Product Visuals

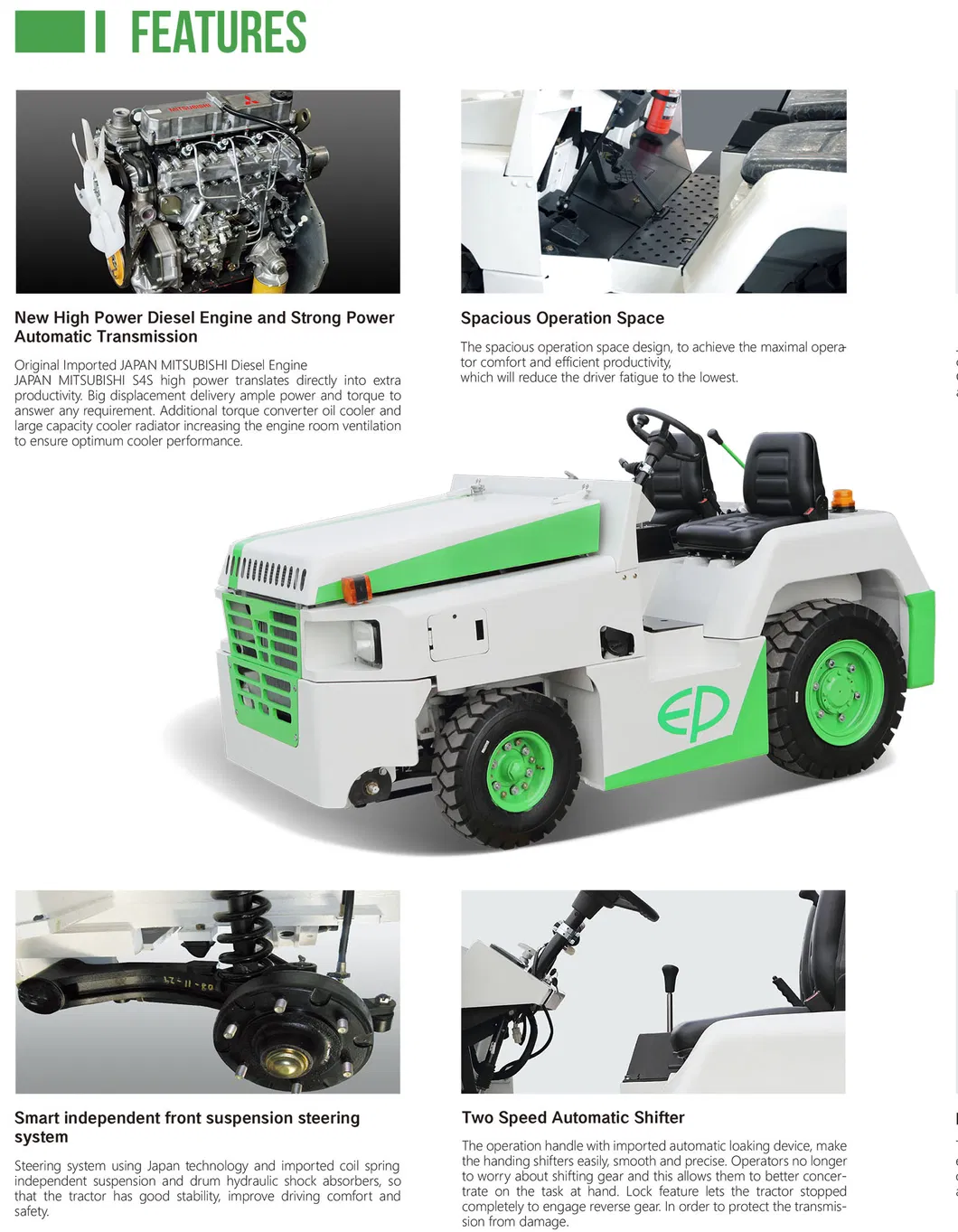

Aviation Baggage Towing Equipment View 1

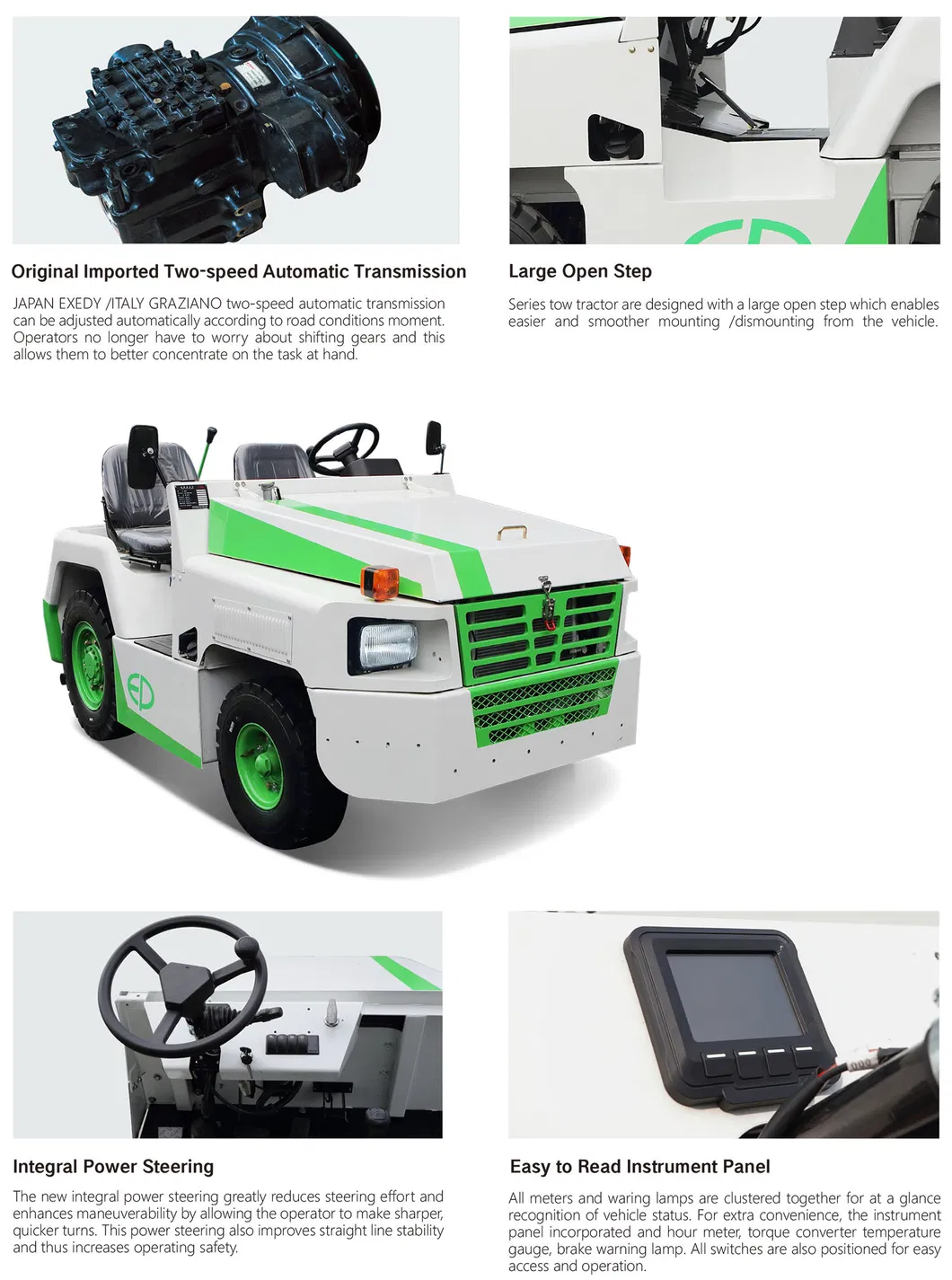

Aviation Baggage Towing Equipment View 2
Technical Specifications
Category Specification Item Unit EQC202-BDS EQC252-BDS EQC302-BDS EQC352-BDS
Performance Max. Drawbar Pull KN 20 25 30 35
Max. Towed Weight kg 25000 32000 38000 44000
Travel Speed (Fwd) km/h 25 25 25 27
Dimensions Overall Length mm 3015 3015 3015 3180
Overall Width mm 1440 1440 1440 1440
Wheelbase mm 1620 1620 1620 1605
Min. Ground Clearance mm 165 165 165 150
Engine Model - MITSUBISHI S4S MITSUBISHI S4S-DT
Rated Output kw/rpm 47/2500 55/2500
Weight Truck Weight (No Load) kg 3450 3900 4400 5100

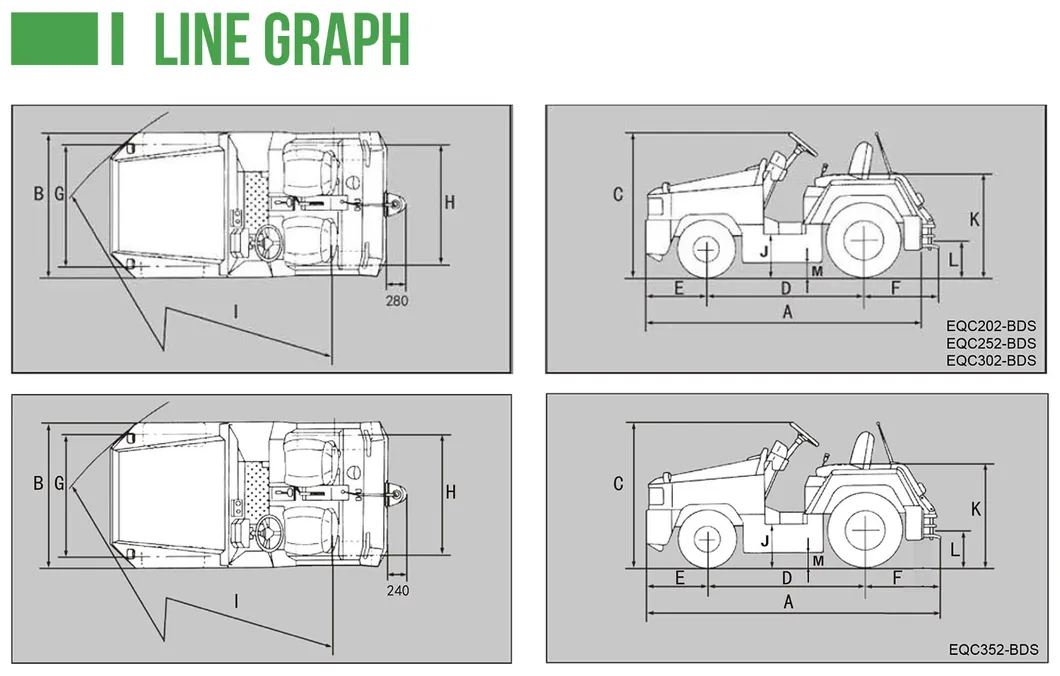

Chassis Detail

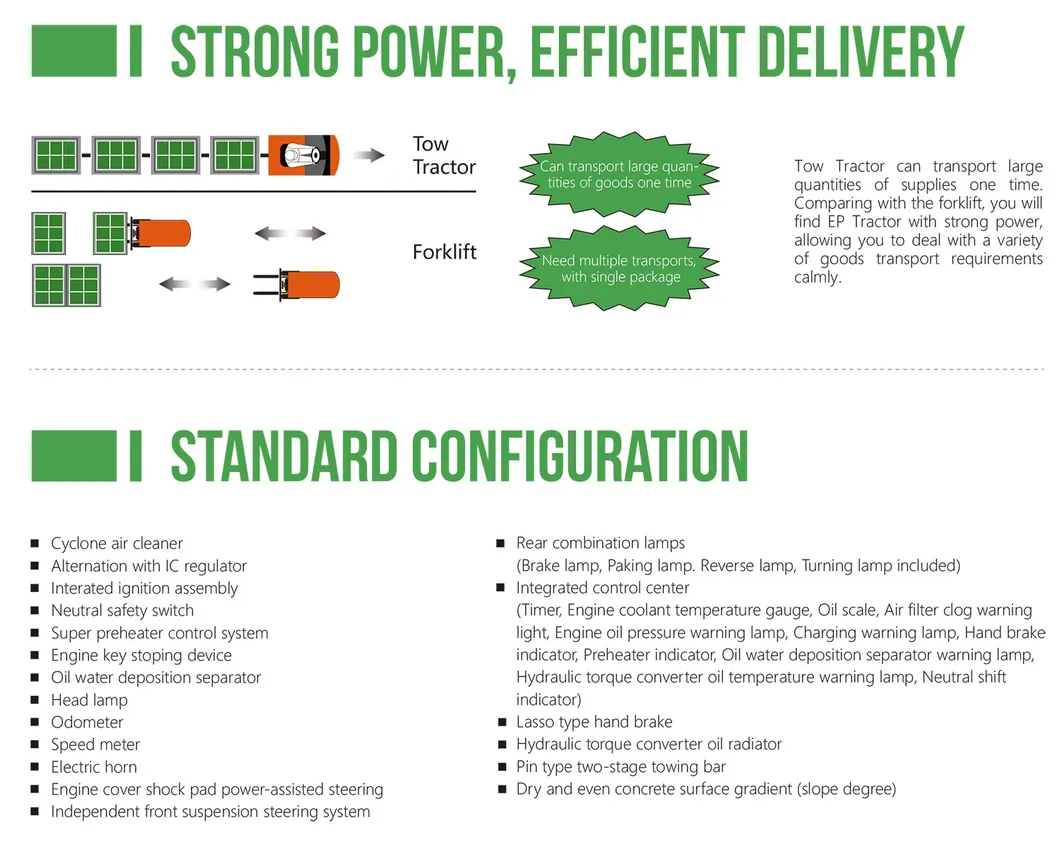

Operational View

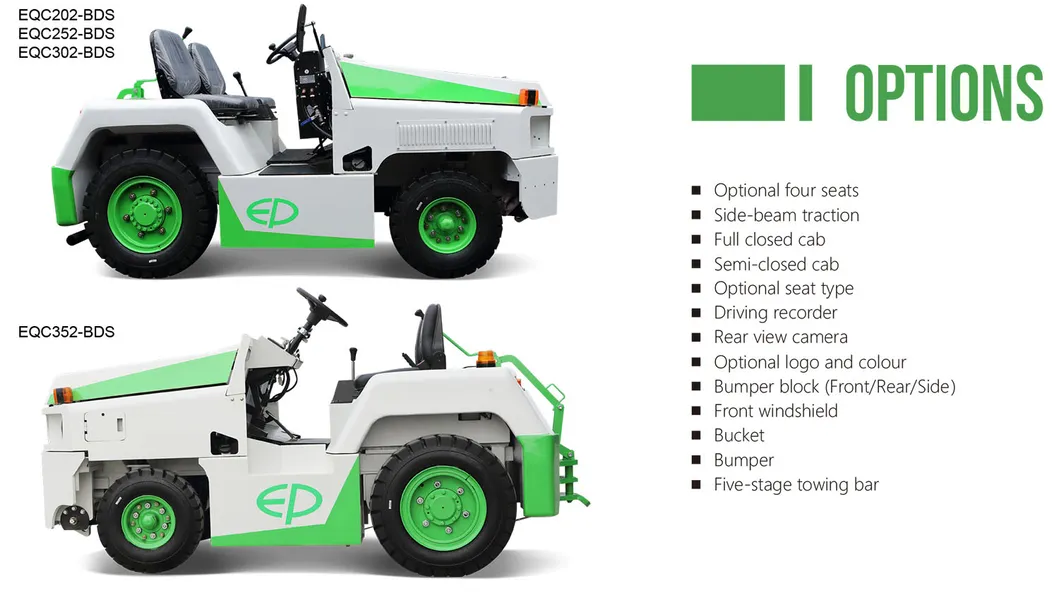

Towing Mechanism

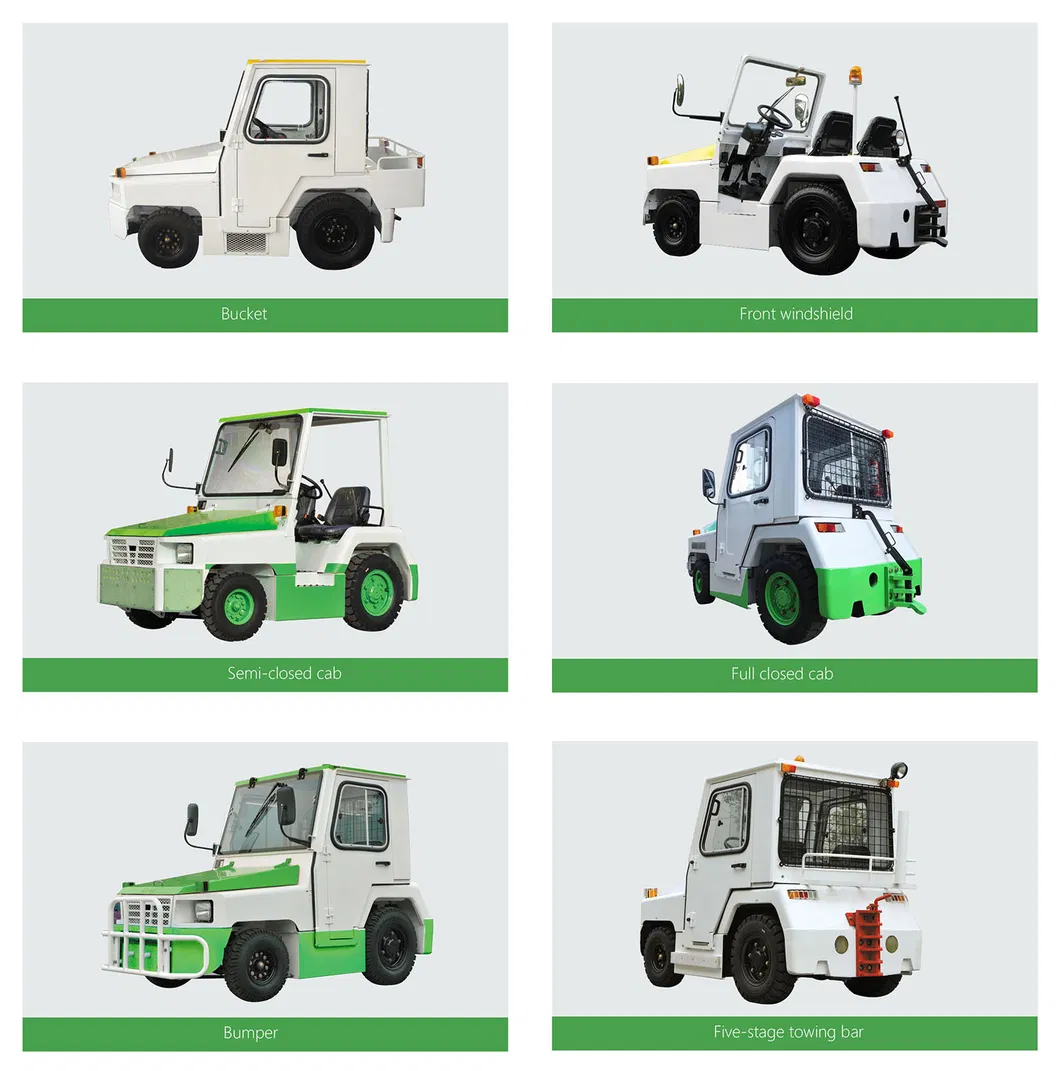

Dimensions Diagram
Frequently Asked Questions
What is the maximum towing capacity of the EQD252-BDS?
The EQD252-BDS model has a maximum drawbar pull of 25kn and is capable of towing a maximum weight of 32,000kg on dry even concrete surfaces.
Which engine is used in this towing equipment?
This equipment is powered by a high-performance Mitsubishi S4S diesel engine, known for its reliability and durability in aviation ground support environments.
What type of transmission and steering system does it feature?
It is equipped with an Exedy KT hydraulic transmission and an integral power steering system, ensuring smooth operation and easy maneuverability.
What are the travel speeds of the equipment?
The vehicle can reach a maximum forward travel speed of 25 km/h and a backward speed of 22 km/h.
What are the overall dimensions for transport?
The overall dimensions are 3015mm in length, 1440mm in width, and 1450mm in height, with a wheelbase of 1620mm.
What type of braking system is installed?
The unit features a hydraulic drum brake for service and a parking brake that acts directly on the driving wheels for maximum safety.
