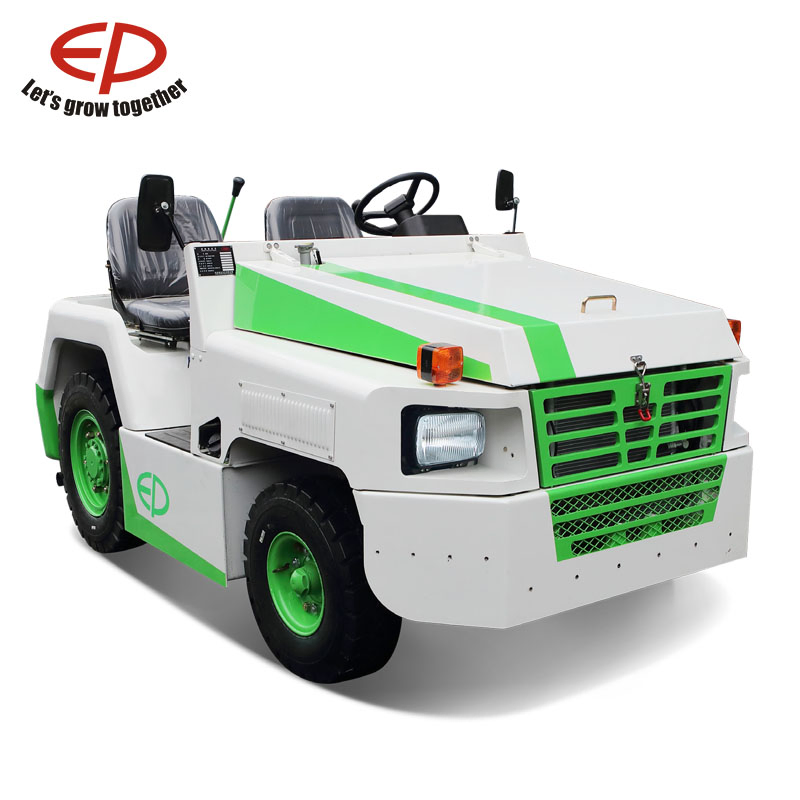

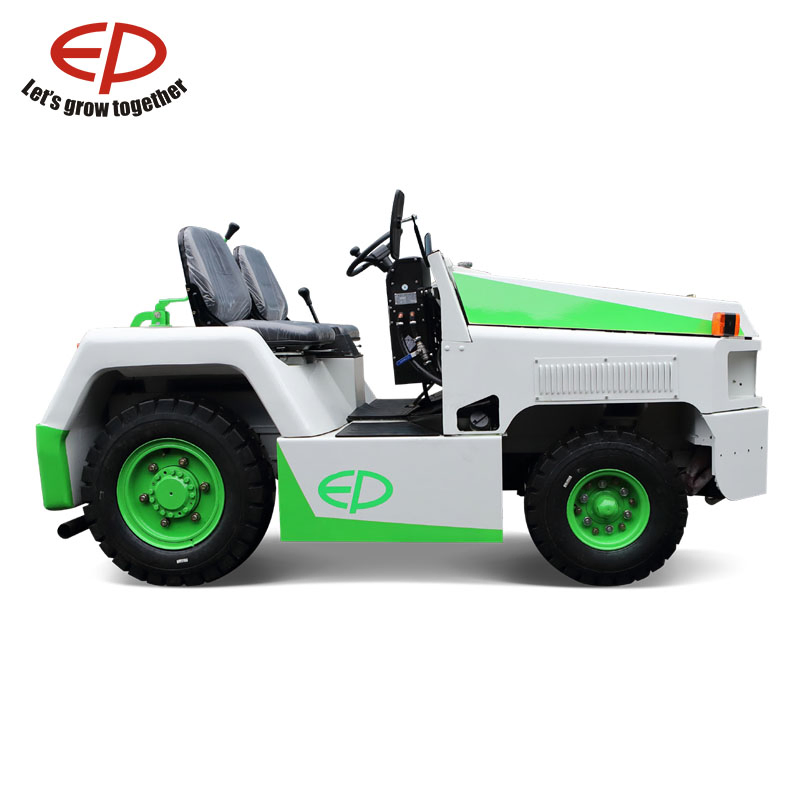

2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
1 / 5
2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor

2.0 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor

Customization: Available
Cab Location: Adjustable
Type: Tow Tractor
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
EQC202-BDS
Power
Diesel Engine
Load Capacity
2.5t
Fuel
Diesel
Engine
(Mitsubishi) S4s
Max. Drawbar Pull
25kn
Max. Towed Weight
25000kg
Travel Speed
25/22 Km/H
Max. Gradeability
38%
Wheelbase
1620mm
Turning Radius
3000mm
Service Weight
3900kg
Transmission
(Exedy) Kt
Steering
Integral Power Steering
Service Brake
Hydraulic Drum Brake
Specification
3015*1440*1450mm
Trademark
EP
Production Capacity
1000 Units
★

Product Description & Visuals

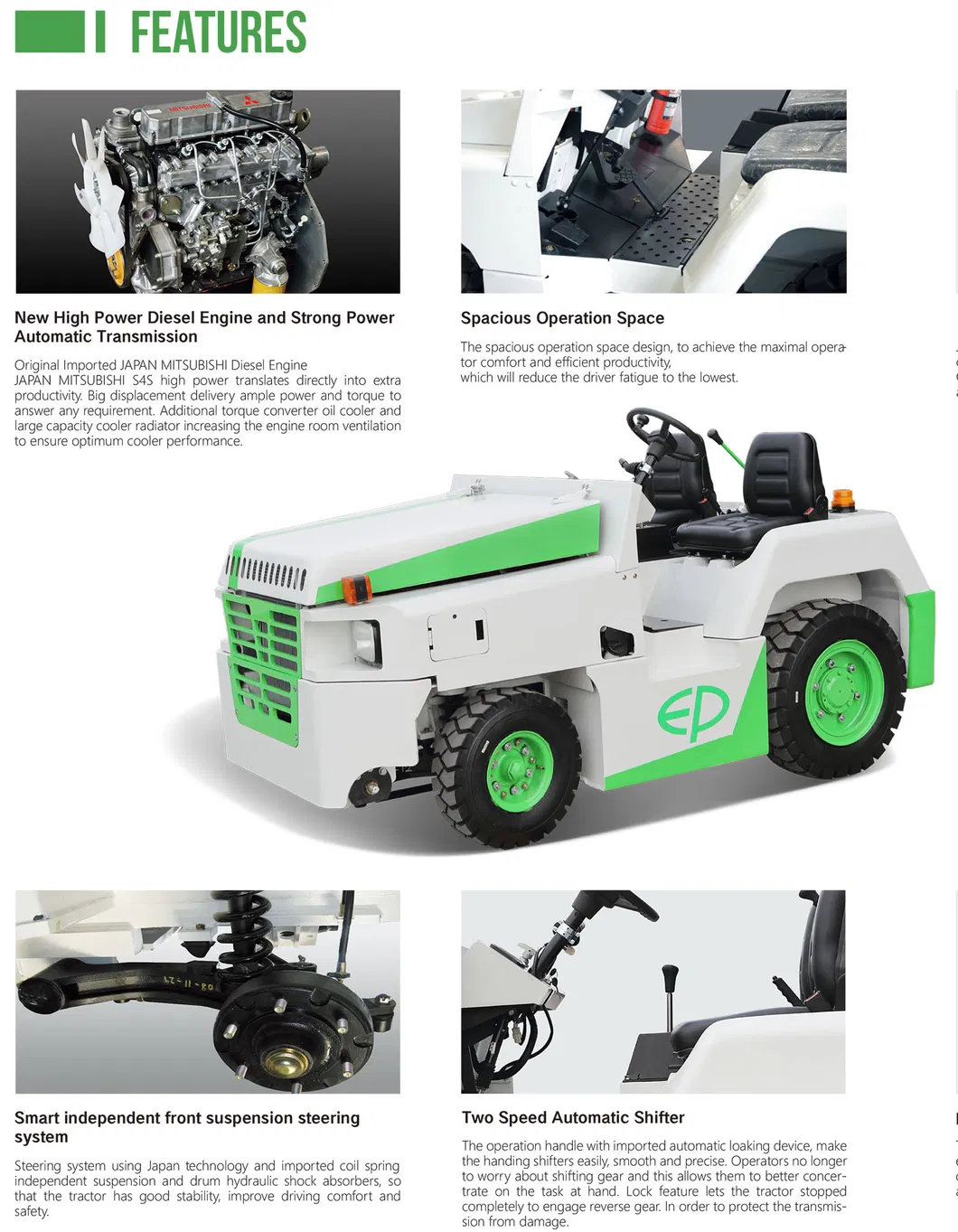

Diesel Engine Powered Aircraft Baggage Towing Tractor View 1

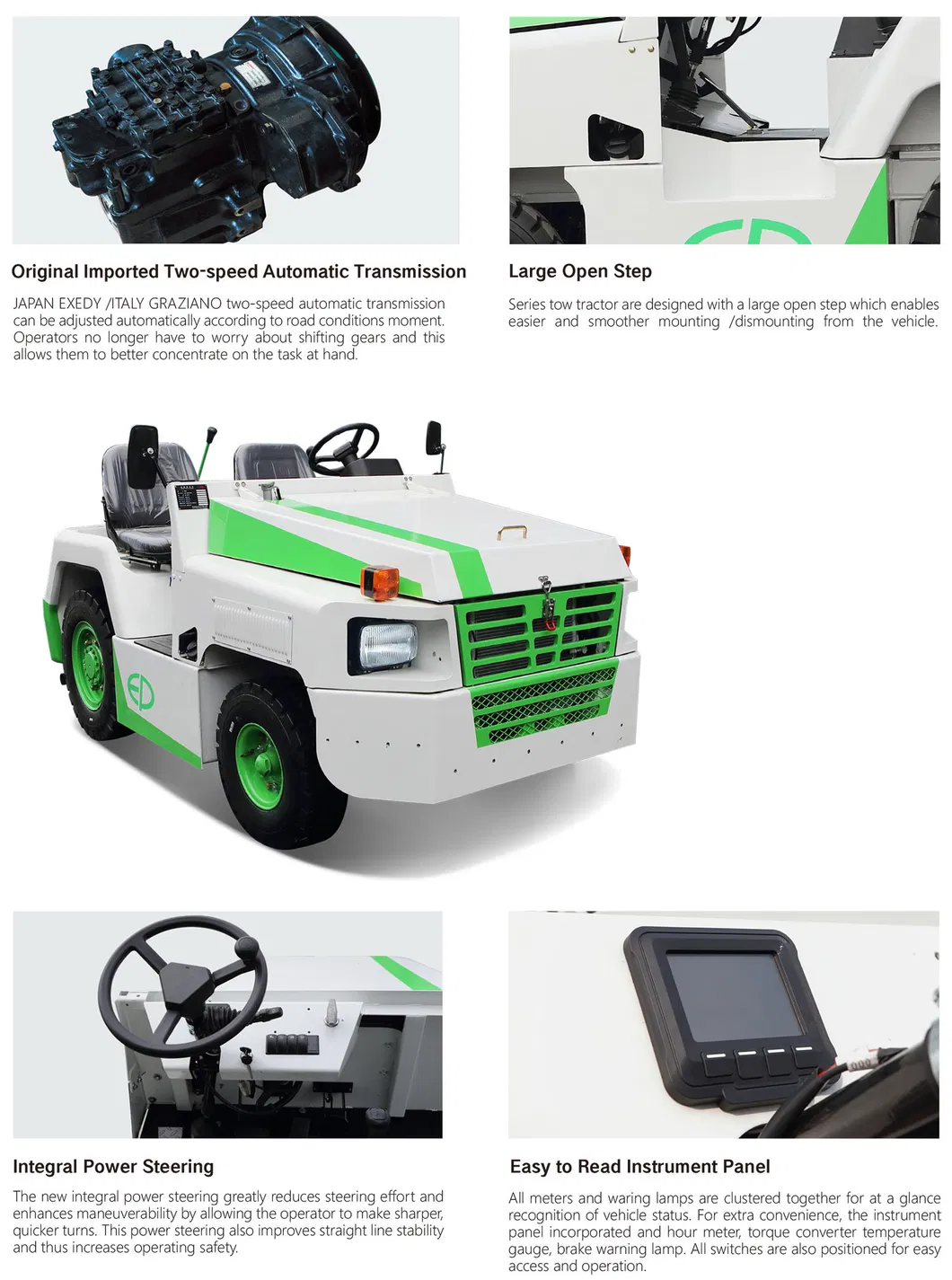

Diesel Engine Powered Aircraft Baggage Towing Tractor View 2
Category Feature Unit EQC202-BDS EQC252-BDS EQC302-BDS EQC352-BDS
Performance Max. drawbar pull KN 20 25 30 35
Max. towed weight (dry concrete) kg 25000 32000 38000 44000
Travel speed (Forward) km/h 25 25 25 27
Max. gradeability (No load) % 38 38 35 35
Dimension Overall length (with coupler) mm 3015 3015 3015 3180
Overall width mm 1440 1440 1440 1440
Overall height mm 1450 1450 1450 1440
Wheelbase mm 1620 1620 1620 1605
Min. turning radius (Outer) mm 3000 3000 3000 3000
Engine Model - (MITSUBISHI) S4S (MITSUBISHI) S4S-DT
Rated output kw/rpm 47/2500 55/2500
Rated torque N.m/rpm 200/1600 245/1600

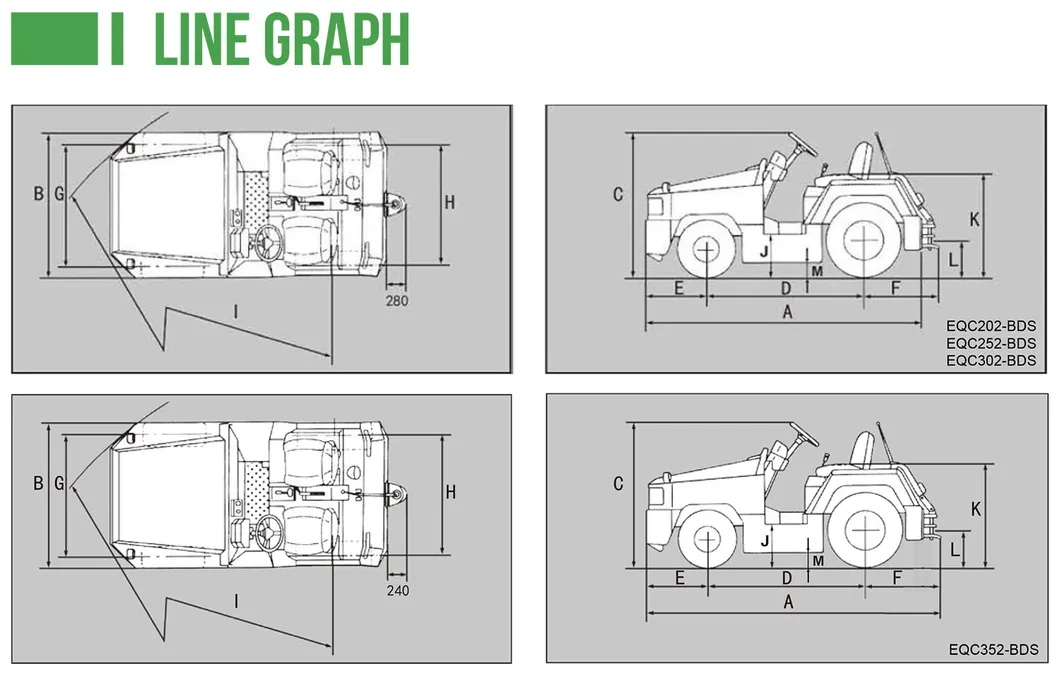

Towing Tractor Detail 1

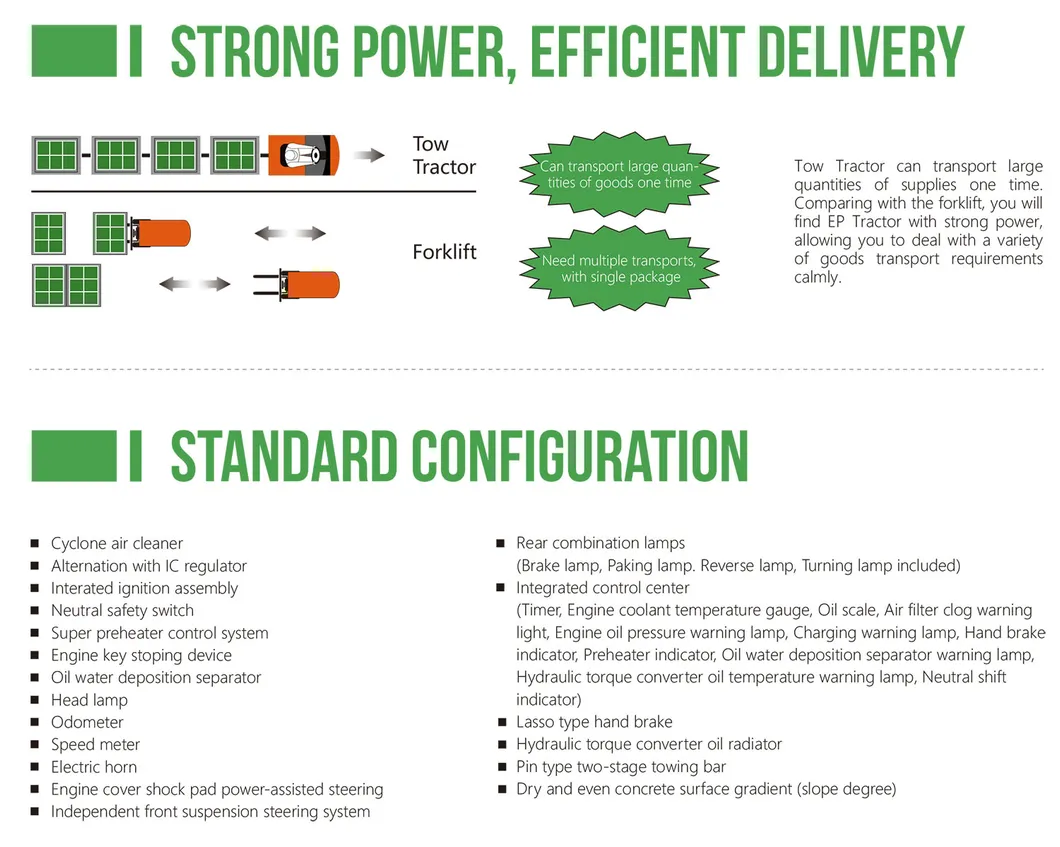

Towing Tractor Detail 2

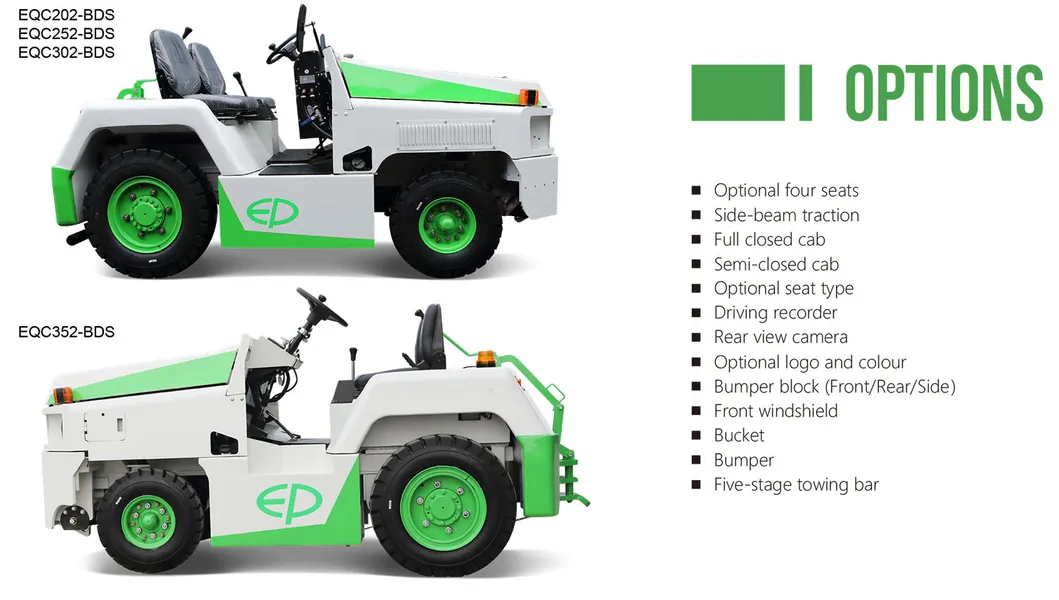

Towing Tractor Detail 3

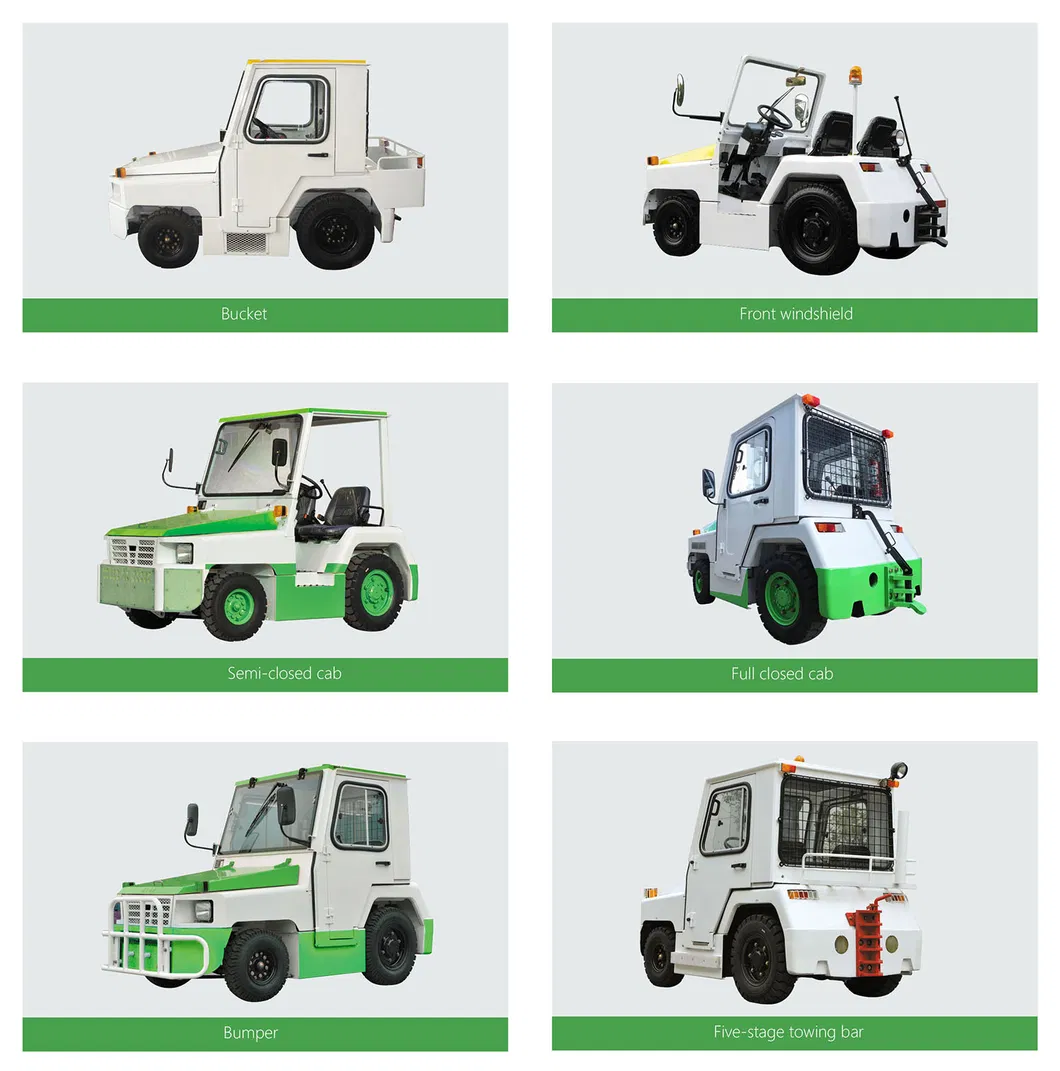

Towing Tractor Detail 4
?

Frequently Asked Questions

What is the maximum towing capacity of the EQC202-BDS model?
The EQC202-BDS model has a maximum towed weight capacity of 25,000 kg on dry, even concrete surfaces.
What type of engine is used in these baggage tractors?
Most models in this series are powered by a Mitsubishi S4S diesel engine, providing a rated output of 47kw at 2500rpm.
What is the maximum travel speed of the tractor?
The tractor can reach a maximum forward travel speed of 25 km/h to 27 km/h, depending on the specific model.
Does the tractor feature power steering?

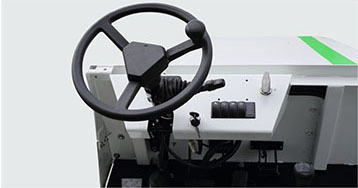

Yes, the aircraft baggage towing tractor is equipped with Integral Power Steering for easier maneuverability.
What are the braking systems installed on the EQC series?
The standard service brake is a Hydraulic Drum Brake, and the parking brake acts directly on the driving wheel brake for safety.
