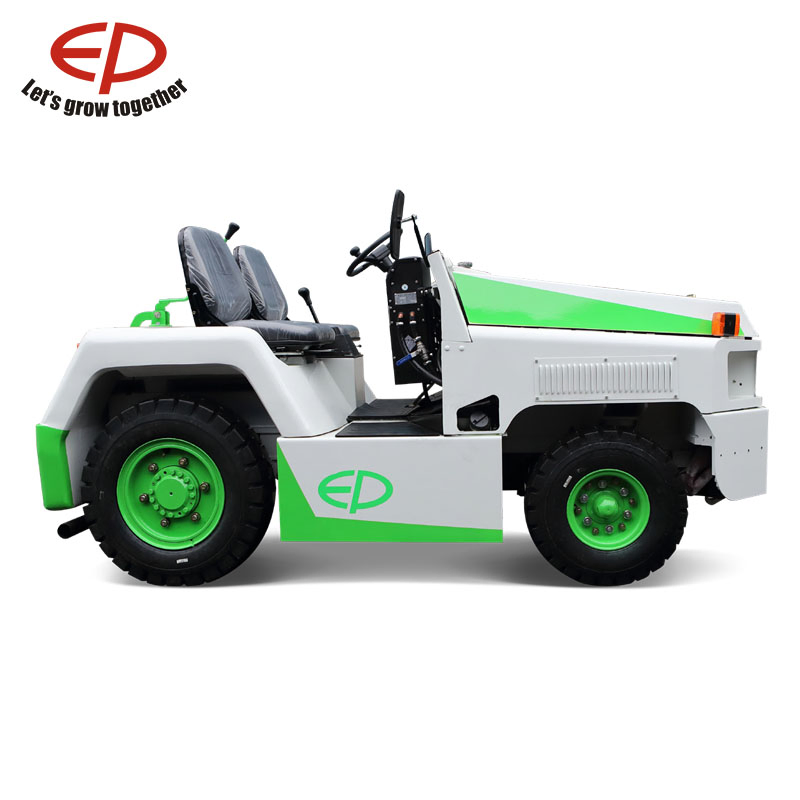

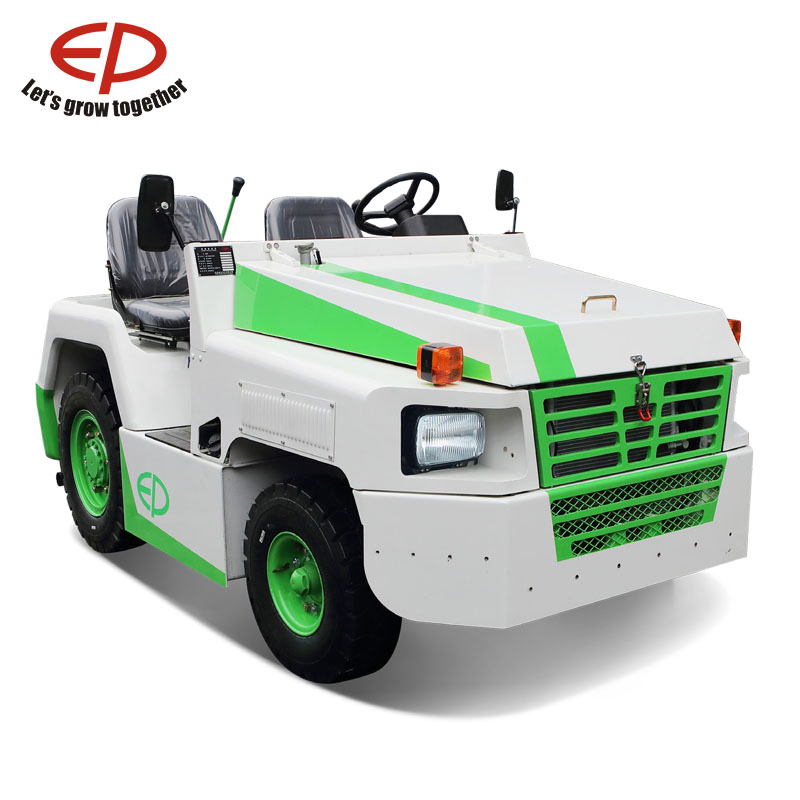

2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
1 / 5
2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor
2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor

2.5 Ton Diesel Engine Powered Aircraft Baggage Towing Tractor

Customization: Available
Cab Location: Adjustable
Type: Tow Tractor
Send Inquiry

Product Description

Basic Info.
Model NO.
EQC252-BDS
Power
Diesel Engine
Load Capacity
2.0t
Fuel
Diesel
Engine
(Mitsubishi) S4s
Max. Drawbar Pull
20kn
Max. Towed Weight
25000kg
Travel Speed
25/22 Km/H
Max. Gradeability
38%
Wheelbase
1620mm
Turning Radius
3000mm
Service Weight
3900kg
Transmission
(Exedy) Kt
Steering
Integral Power Steering
Condition
New
Specification
3015*1440*1450mm
Product Description

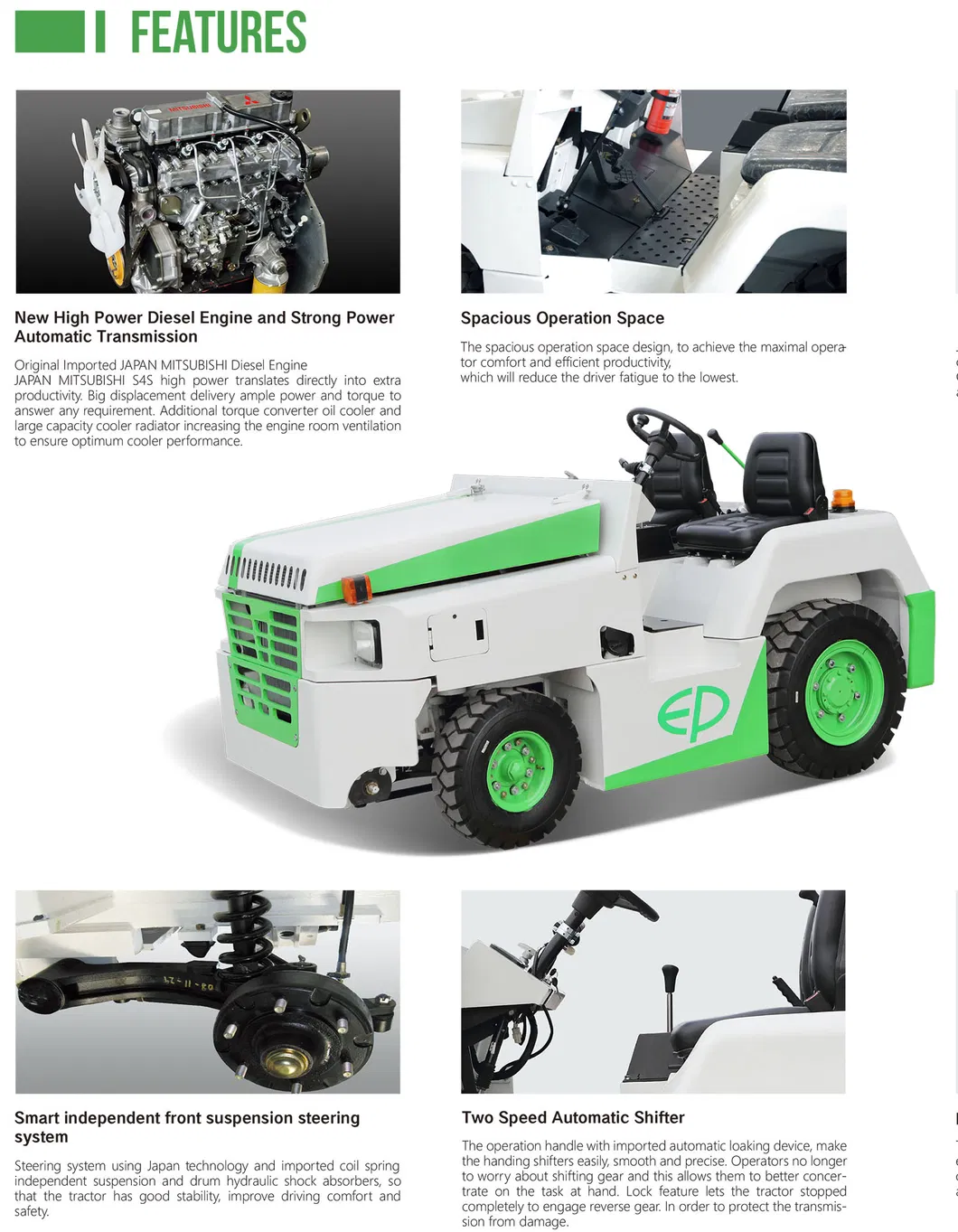

Diesel Engine Aircraft Baggage Towing Tractor

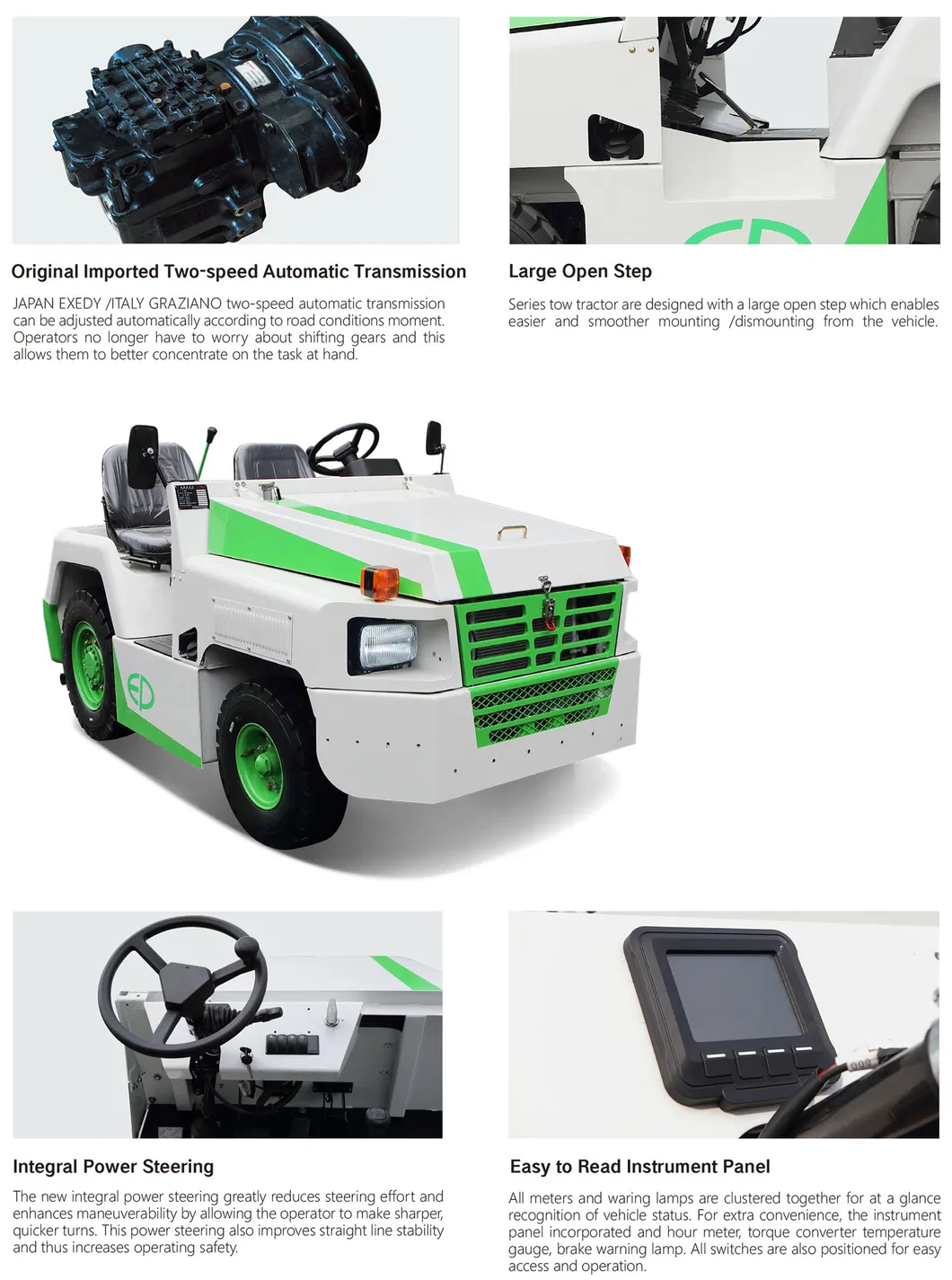

2.5 Ton Towing Tractor
Performance Parameters EQC202-BDS EQC252-BDS EQC302-BDS EQC352-BDS
Max. drawbar pull KN 20 25 30 35
Max. towed weight (dry concrete) kg 25000 32000 38000 44000
Travel speed (Forward/Backward) km/h 25 / 22 25 / 22 25 / 22 27 / 13
Max. gradeability (No load) % 38 38 35 35
Dimensions & Weight
Overall length (with coupler) mm 3015 3015 3015 3180
Overall width / height mm 1440 / 1450 1440 / 1450 1440 / 1450 1440 / 1440
Truck weight (No load) kg 3450 3900 4400 5100
Engine & Transmission
Engine Model - (MITSUBISHI) S4S (MITSUBISHI) S4S-DT
Rated output kw/rpm 47 / 2500 55 / 2500
Transmission Model - EXEDY KT (Hydraulic) Graziano PST2

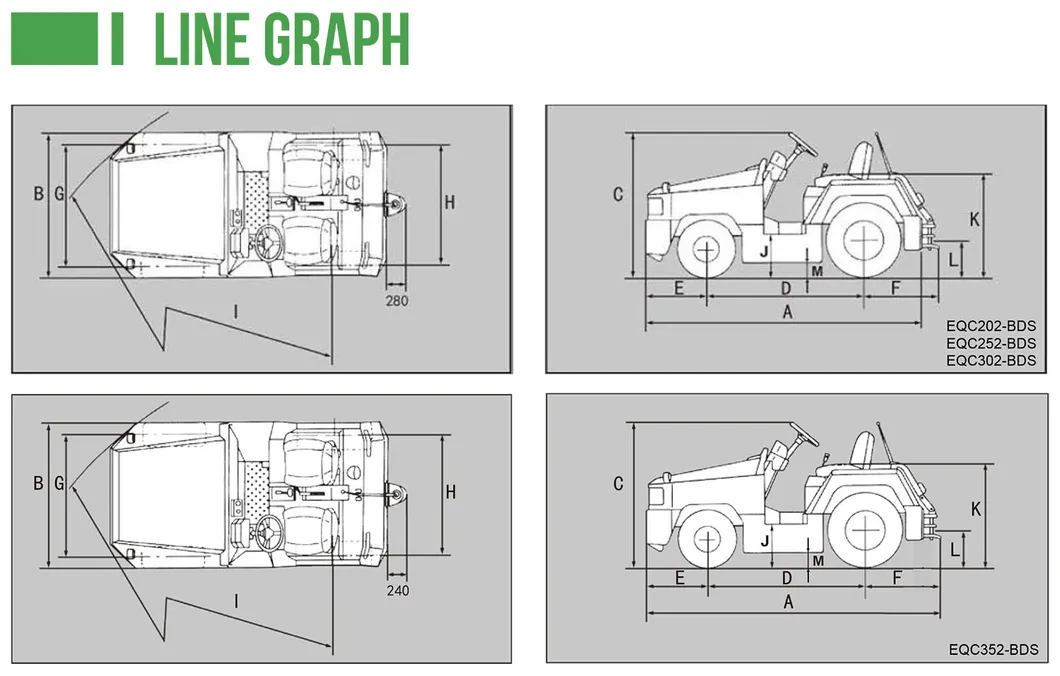

Towing Tractor Front View

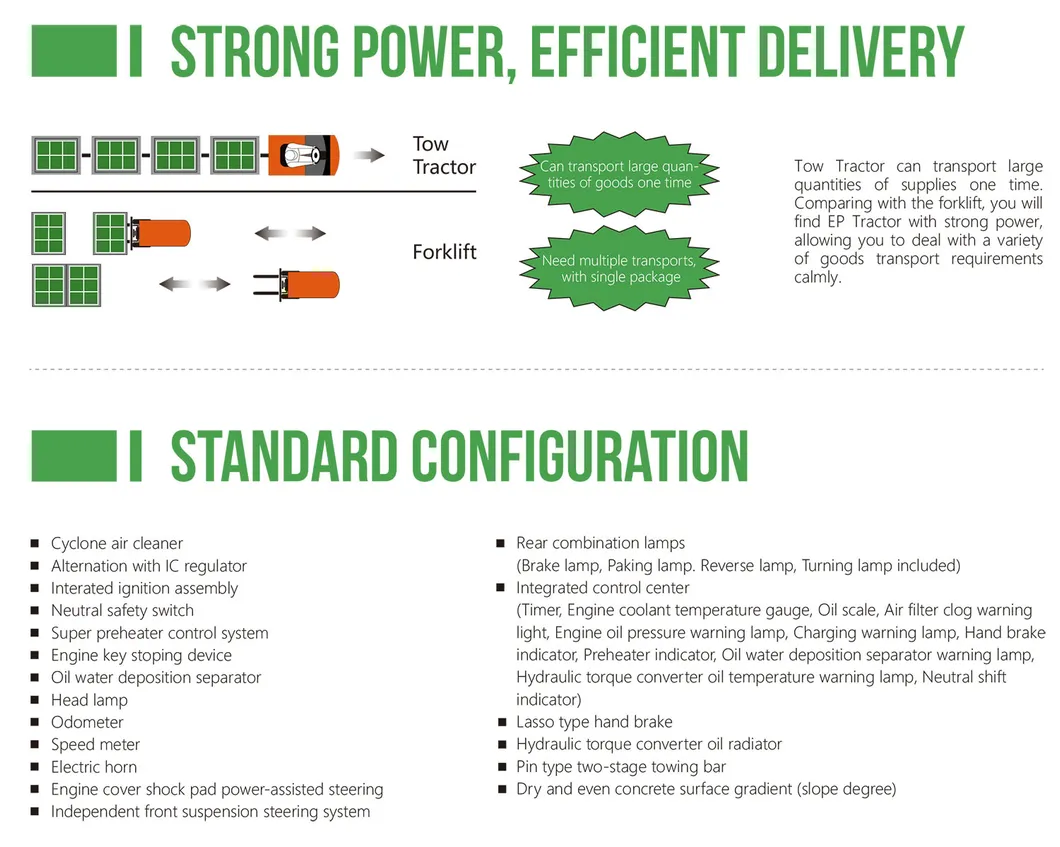

Towing Tractor Rear View

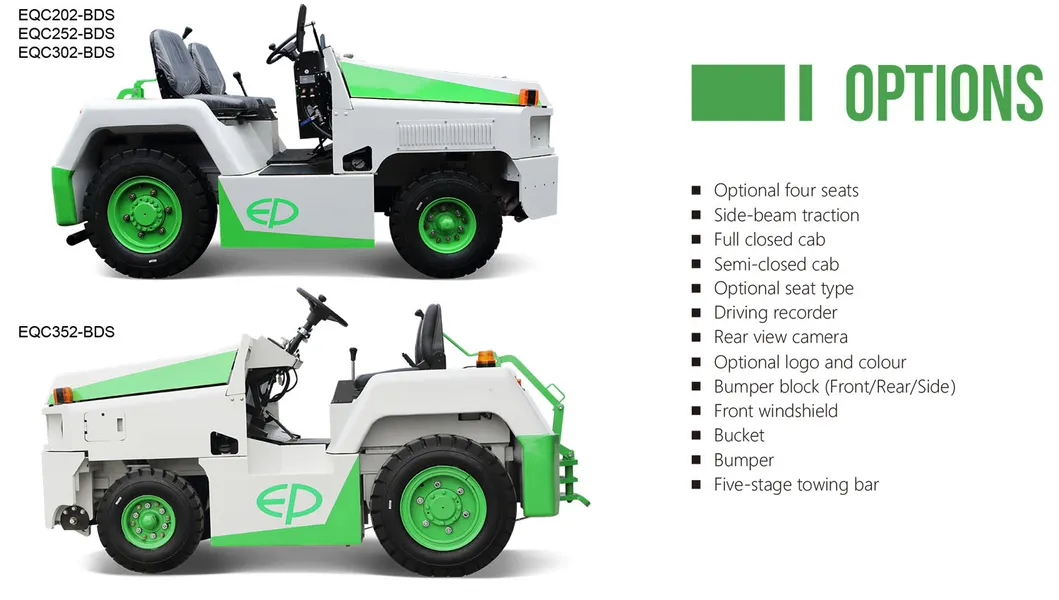

Towing Tractor Side View

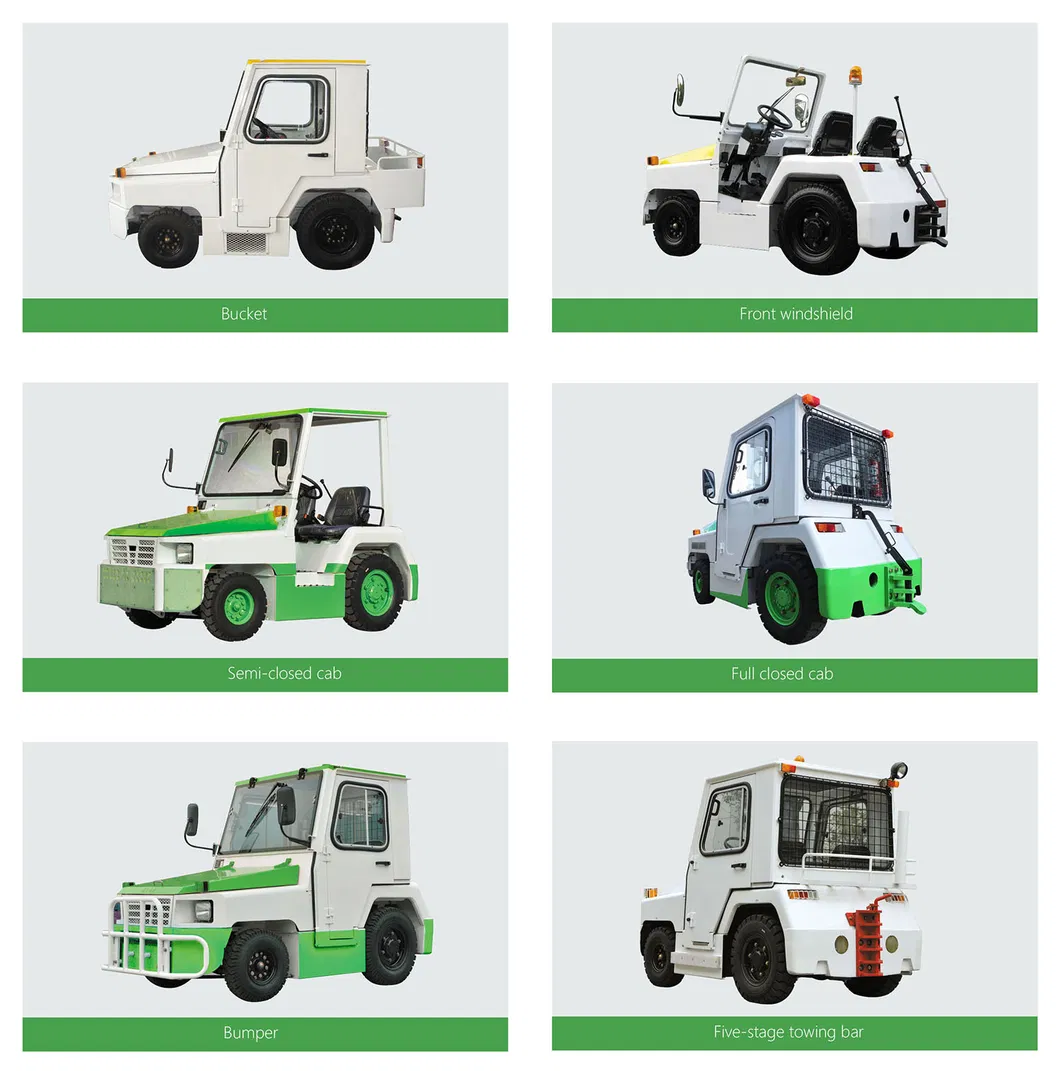

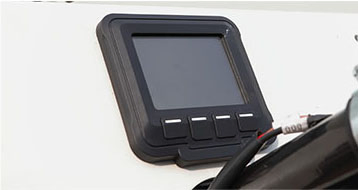

Towing Tractor Details
Frequently Asked Questions
1. What is the maximum towing capacity of the EQC252-BDS?
The EQC252-BDS model has a maximum towed weight capacity of 25,000 kg on dry, even concrete surfaces with one trailer.
2. What type of engine is used in this baggage towing tractor?
This tractor is powered by a reliable Mitsubishi S4S diesel engine, known for its durability and high performance in ground support equipment.
3. How fast can the tractor travel?
The unit can reach a forward travel speed of 25 km/h and a backward speed of 22 km/h, providing efficient movement across airport ramps.

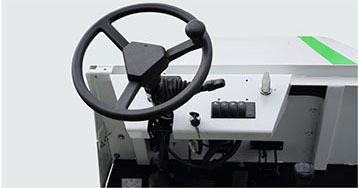

4. Does the tractor feature power steering?
Yes, it is equipped with an integral power steering system, which ensures smooth and effortless maneuverability even with heavy loads.
5. What braking systems are installed for safety?
The vehicle uses a hydraulic drum brake for service braking and a dedicated brake acting on the driving wheels for secure parking.
6. What is the maximum gradeability of this unit?
The tractor offers a maximum gradeability of 38% under no-load conditions, allowing it to handle inclined surfaces effectively.
