Aero Apex
1 / 5
| Category | Technical Parameter | Unit | EQD201-AL | EQD251-AL | EQD301-AL |
|---|---|---|---|---|---|
| Performance | Max. drawbar pull | KN | 19 | 21 | 23.5 |
| Max. towed weight (dry concrete) | kg | 20000 | 25000 | 30000 | |
| Travel speed (No load) | km/h | 28 | 28 | 28 | |
| Travel speed (Full load) | km/h | 15 | 13 | 11 | |
| Max. gradeability (No load) | % | 30 | 30 | 30 | |

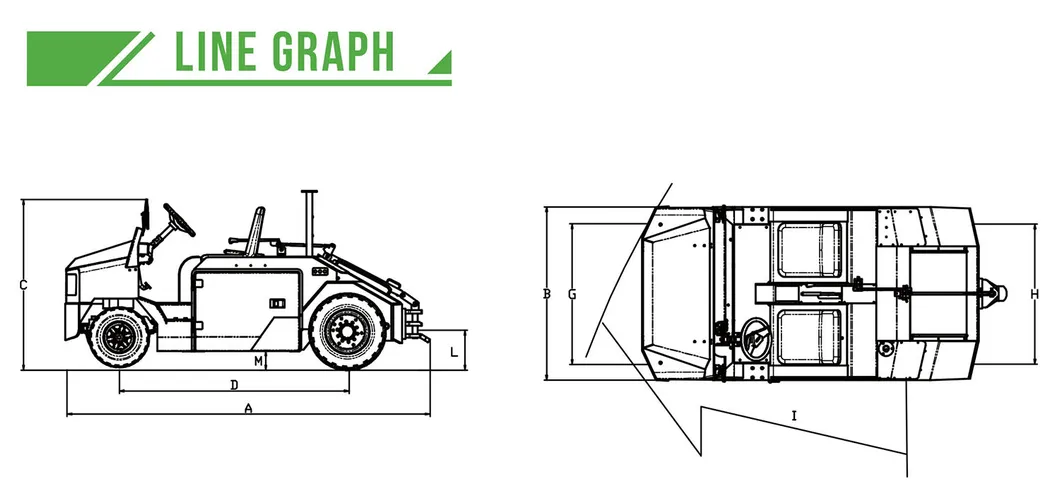

| Dimensions | Overall length (with coupler) | mm | 2980 | 2995 | 3020 |
| Overall width | mm | 1440 | 1440 | 1435 | |
| Wheelbase | mm | 1900 | 1900 | 1900 | |
| Min. turning radius (Outer) | mm | 3100 | 3100 | 3050 | |
| Min. ground clearance | mm | 150 | 150 | 150 | |
| Weight | Truck weight (No load) | kg | 3500 | 3600 | 3720 |
| Battery Capacity | V/AH | 80V/690AH | 80V/690AH | 80V/690AH | |
| Power | Motor power | KW | 28.7 | 28.7 | 28.7 |
