Customization: Available
Cab Location: Adjustable
Type: Tow Tractor
Send Inquiry

Product Description

Basic Information
Model NO.
EQC302-BDS
Power
Diesel Engine
Load Capacity
3.0t
Engine
(Mitsubishi) S4S
Max. Towed Weight
38000kg
Travel Speed
25/22 Km/H
Max. Gradeability
35%
Turning Radius
3000mm
Transmission
Graziano Pst2
Steering
Integral Power Steering
⚙️
High-Performance Ground Support Equipment
Designed for durability and efficiency in aircraft baggage handling and ground operations.
Product Description
Aircraft Baggage Tractor

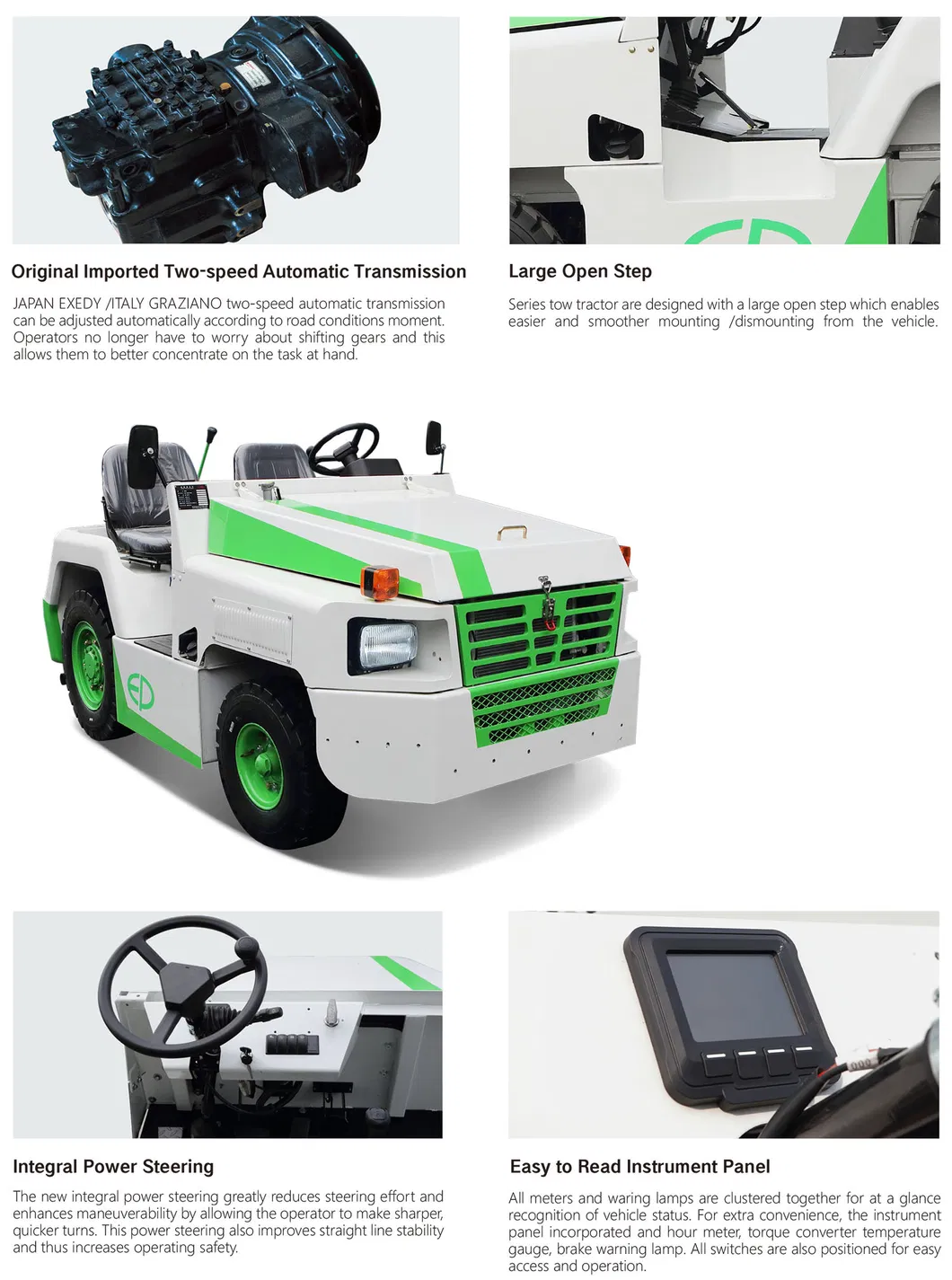

Ground Support Equipment
Technical Specifications
Category Specification Unit EQC202-BDS EQC252-BDS EQC302-BDS EQC352-BDS
Performance Max. drawbar pull KN 20 25 30 35
Performance Max. towed weight kg 25000 32000 38000 44000
Performance Travel speed (Forward) km/h 25 25 25 27
Dimension Overall length mm 3015 3015 3015 3180
Dimension Overall width mm 1440 1440 1440 1440
Engine Model - (MITSUBISHI) S4S (MITSUBISHI) S4S-DT
Engine Rated output kw/rpm 47/2500 55/2500
Brake Service Brake - Hydraulic Drum Brake Front Drum & Rear Disc

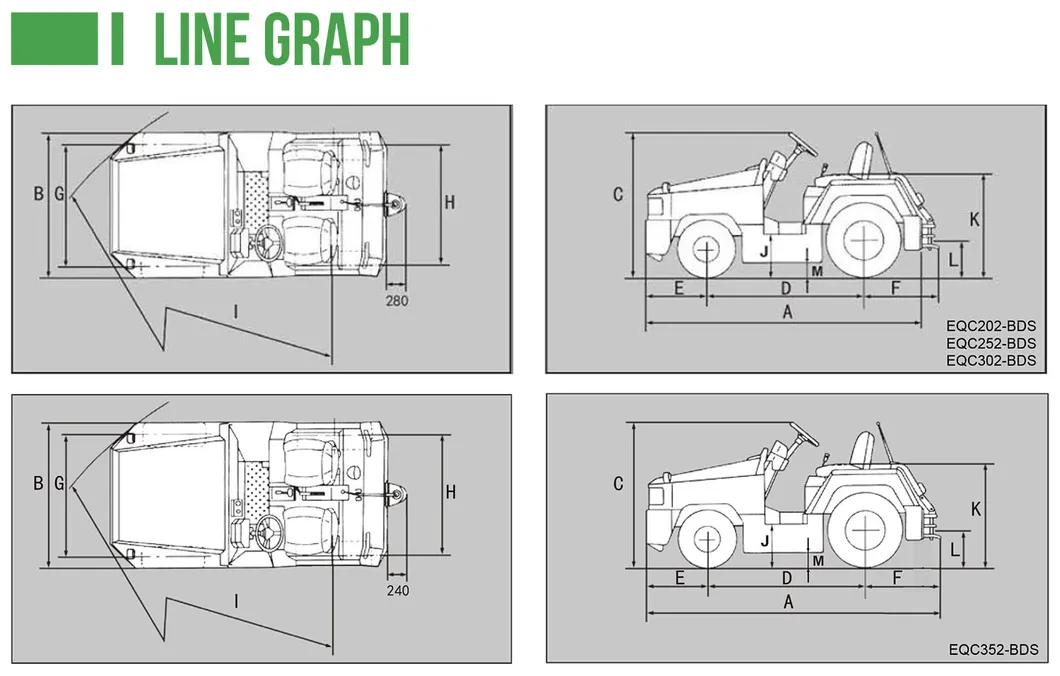

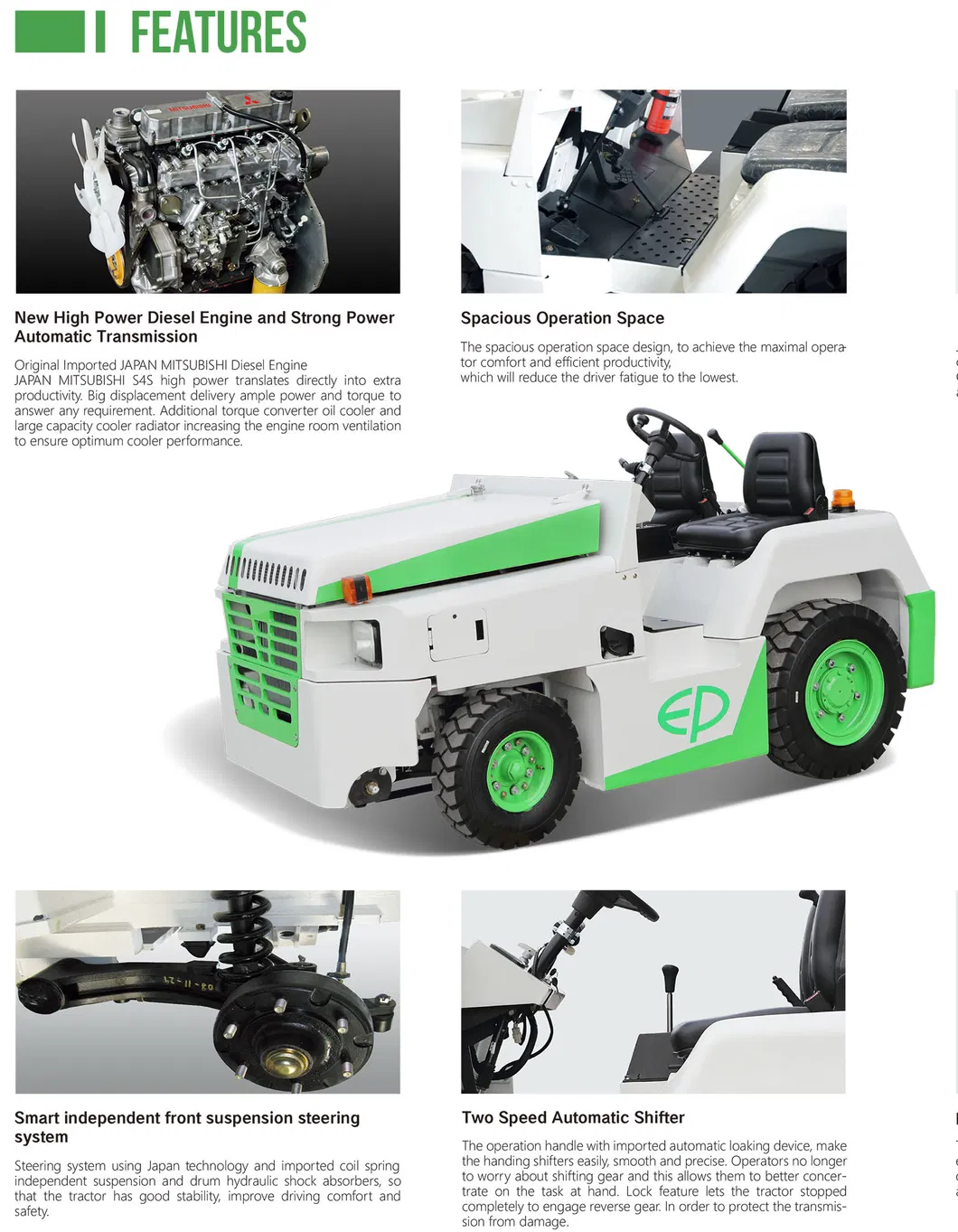

Baggage Tractor View 1

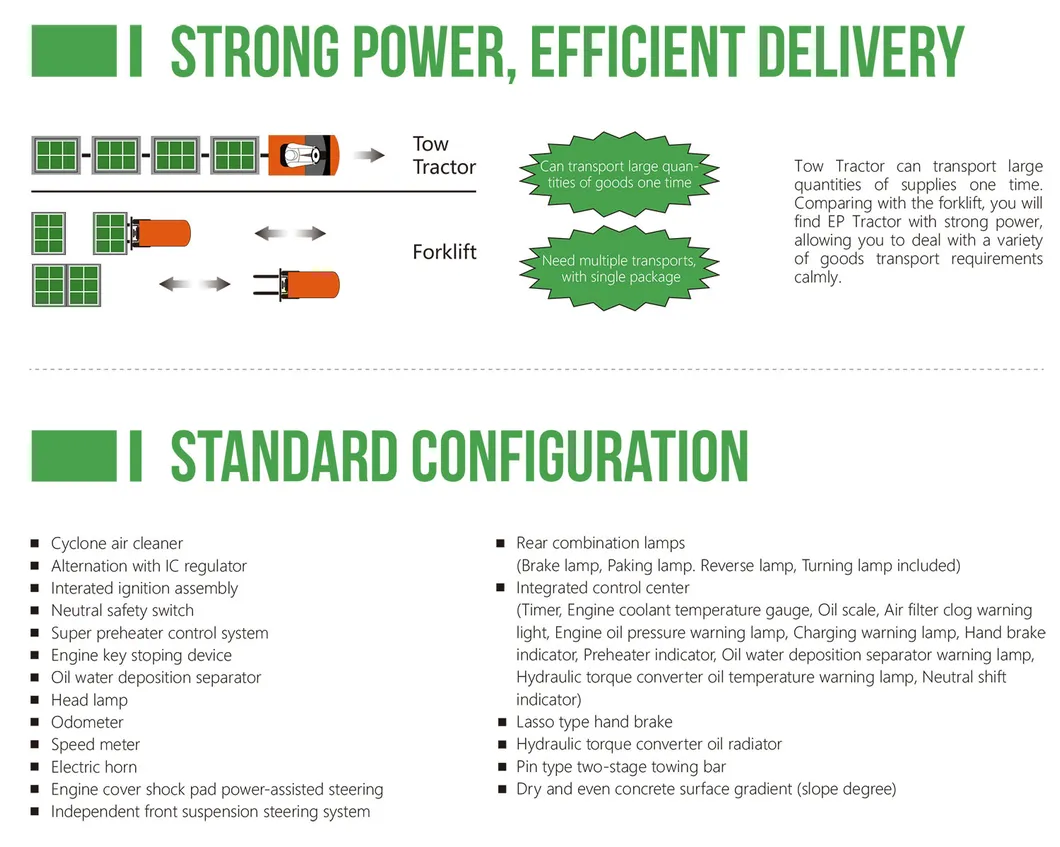

Baggage Tractor View 2

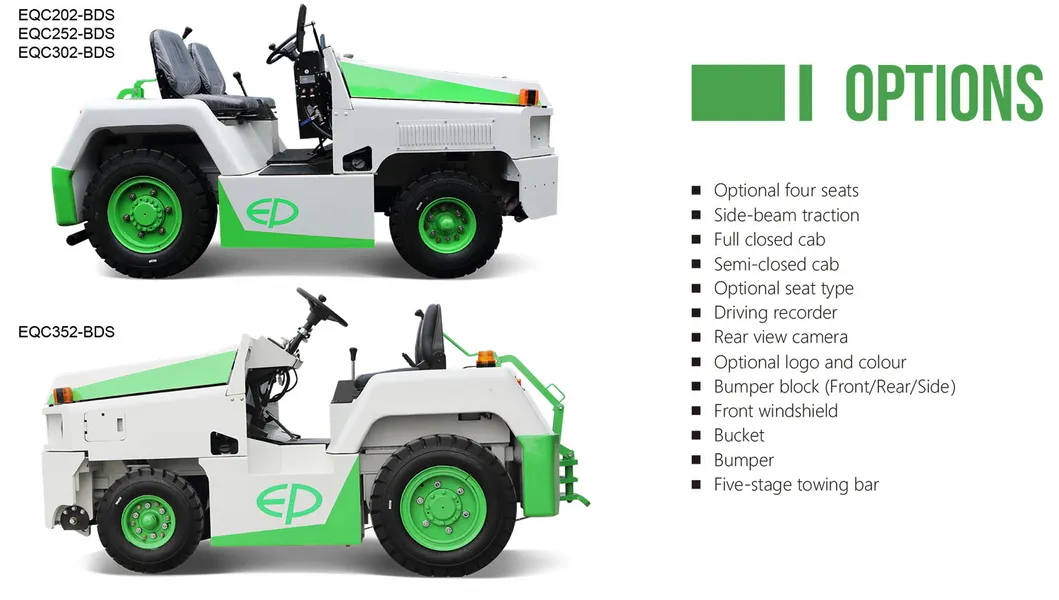

Baggage Tractor View 3

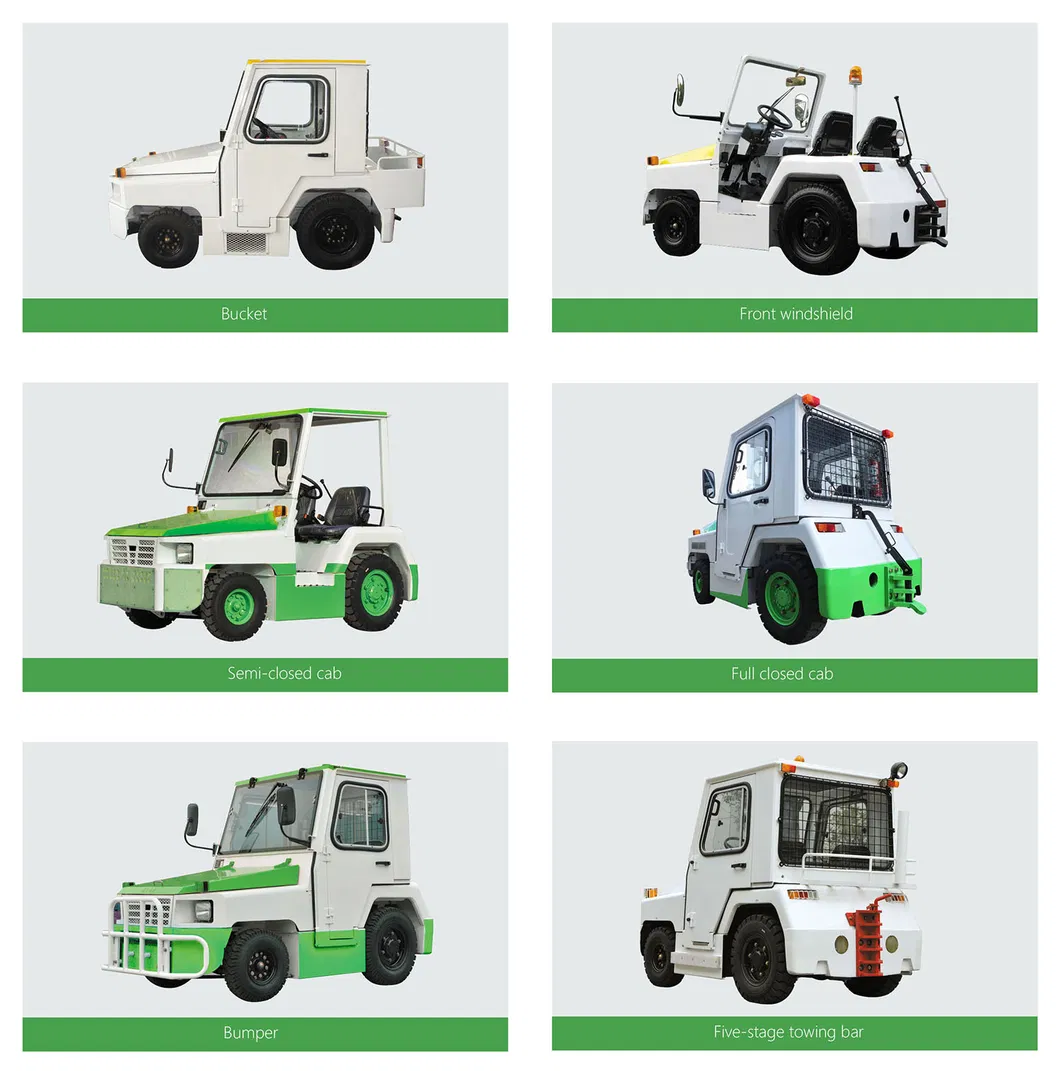

Baggage Tractor Details
Frequently Asked Questions
What type of engine is used in the EQC302-BDS?
The EQC302-BDS is powered by a high-performance Mitsubishi S4S Diesel Engine, known for its reliability in industrial applications.
What is the maximum towing capacity of this tractor?
The EQC302-BDS model has a maximum towed weight capacity of 38,000kg (38 tons) on dry, even concrete surfaces.
What is the travel speed of the baggage tractor?
The tractor can reach a maximum forward travel speed of 25 km/h and a backward speed of 22 km/h.
What type of transmission system is installed?
It features a professional-grade Graziano PST2 hydraulic transmission for smooth power delivery and control.

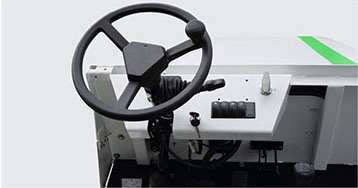

Is the steering system powered?
Yes, it utilizes an Integral Power Steering system, ensuring easy maneuverability even with a full turning radius of 3000mm.
What are the dimensions of the EQC302-BDS?
The overall dimensions are approximately 3015mm in length, 1440mm in width, and 1450mm in height.
