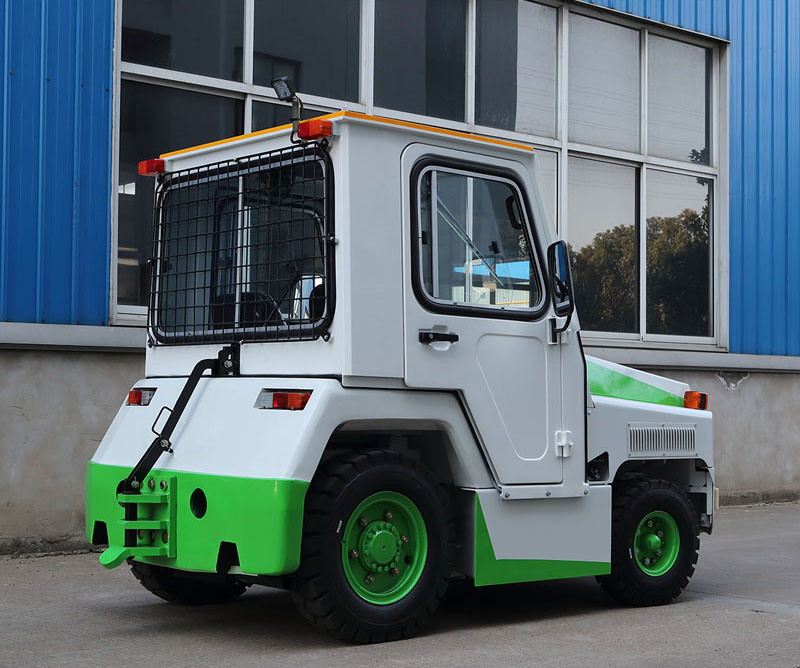

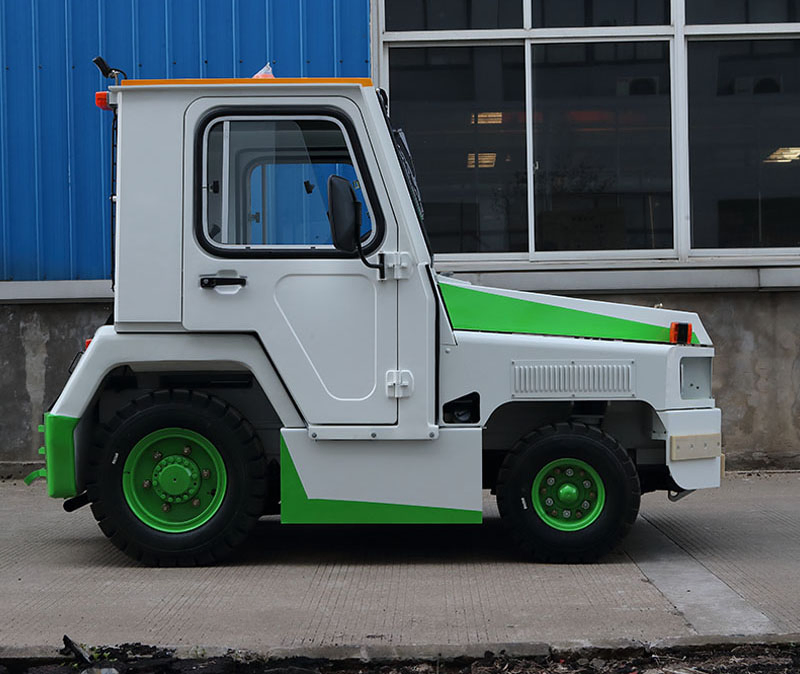

32000kg Gse Diesel Engine Powered Aircraft Ground Support Equipment

1 / 5

32000kg Gse Diesel Engine Powered Aircraft Ground Support Equipment

Customization:	Available
Transmission Type:	Automatic
Power:	Diesel

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

EQC252-BDS

Load Capacity

25kn

Emission Standard

Euro 3

Drive Wheel

Rear Wheel

Seats

Horsepower

＜150hp

Engine Capacity

＜4L

Tire Certification

ISO

Condition

New

Engine

(Mitsubishi) S4s

Max. Towed Weight

32000kg

Travel Speed

25/22 Km/H

Turning Radius

3000mm

Service Weight

3900kg

Transmission Model

(Exedy) Kt

Specification

3015*1440*1450mm

⚙️ Product Description

Performance	Model	Drawbar Pull (KN)	Towed Weight (kg)	Speed (F/B)	Gradeability (%)
Diesel Engine	EQC202-BDS	20	25000	25 / 22 km/h	38
Diesel Engine	EQC252-BDS	25	32000	25 / 22 km/h	38
Diesel Engine	EQC302-BDS	30	38000	25 / 22 km/h	35
Diesel Engine	EQC352-BDS	35	44000	27 / 13 km/h	35

💡 Key Dimensions & Specs

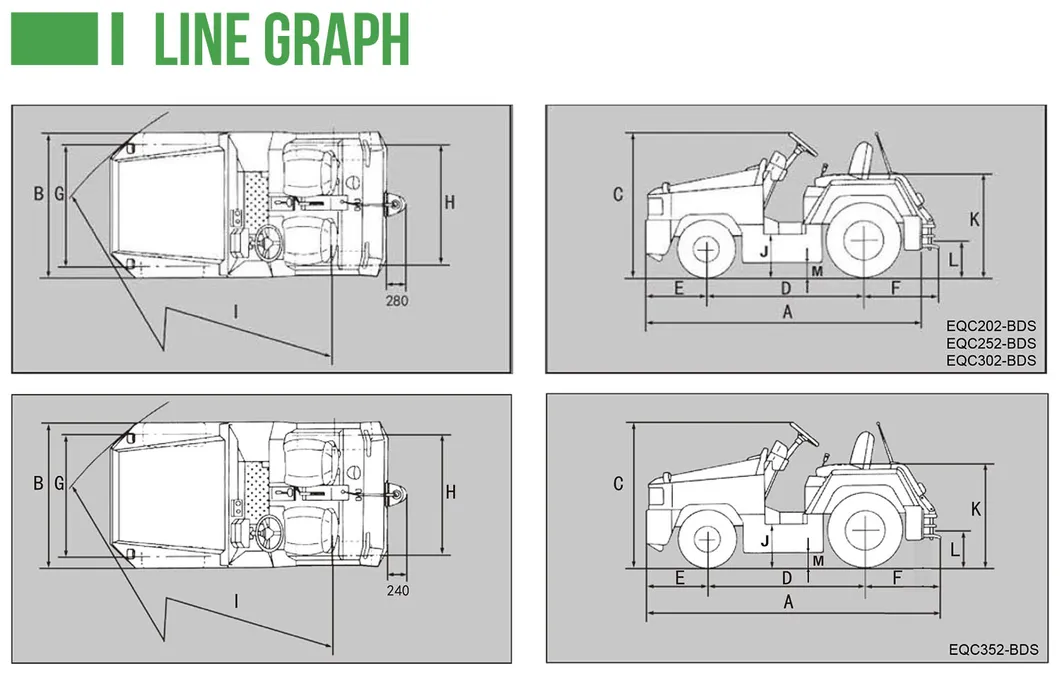

This Aircraft Ground Support Equipment features a 1620mm wheelbase, a turning radius of 3000mm, and an integral power steering system, ensuring high maneuverability in airport environments.

❓ Frequently Asked Questions

1. What is the maximum towing capacity of the EQC252-BDS model?

The EQC252-BDS model has a maximum towed weight capacity of 32,000kg on dry even concrete surfaces.

2. Which engine is used in this ground support equipment?

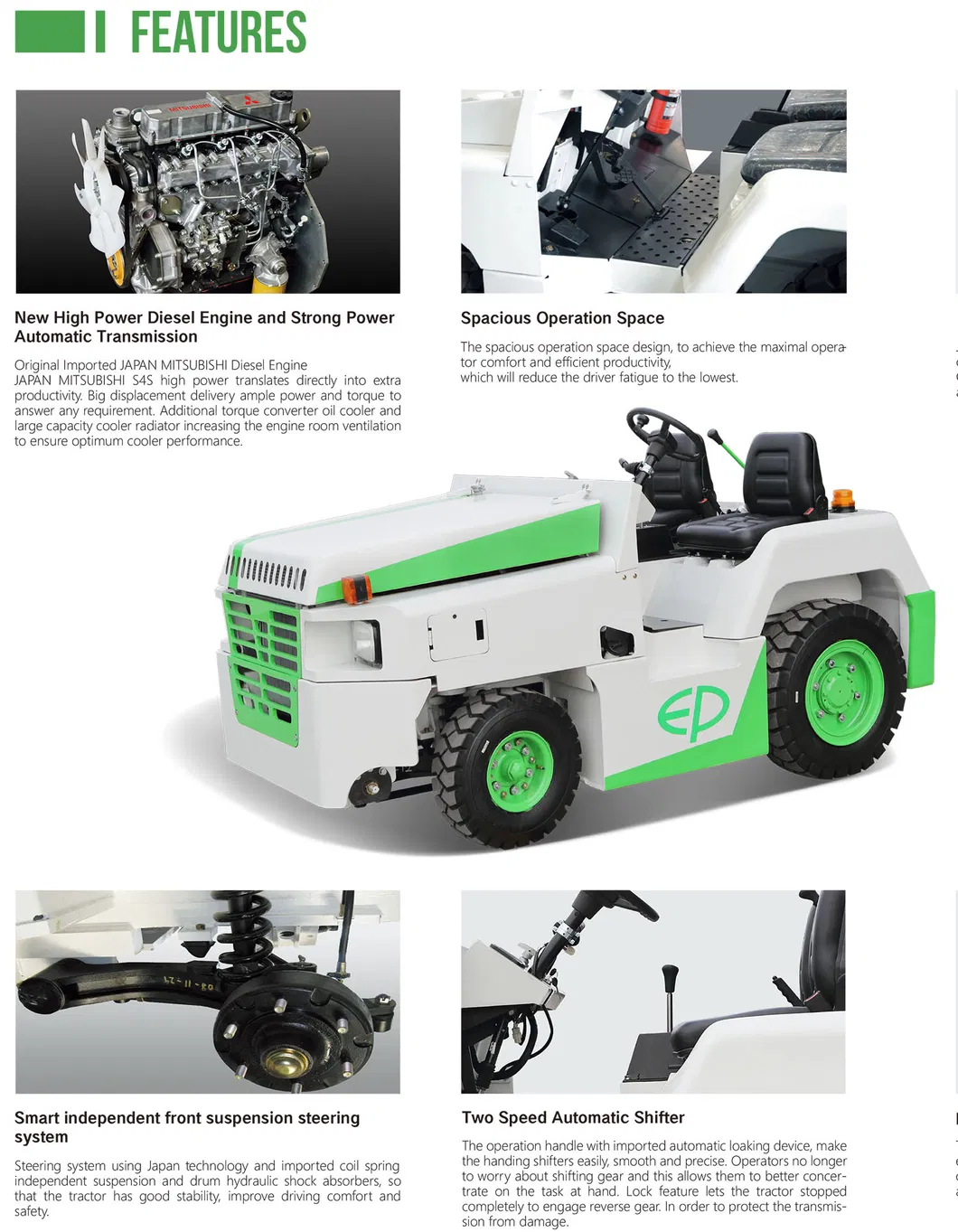

This equipment is powered by a high-performance (Mitsubishi) S4s Diesel engine, meeting Euro 3 emission standards.

3. What are the transmission and steering specifications?

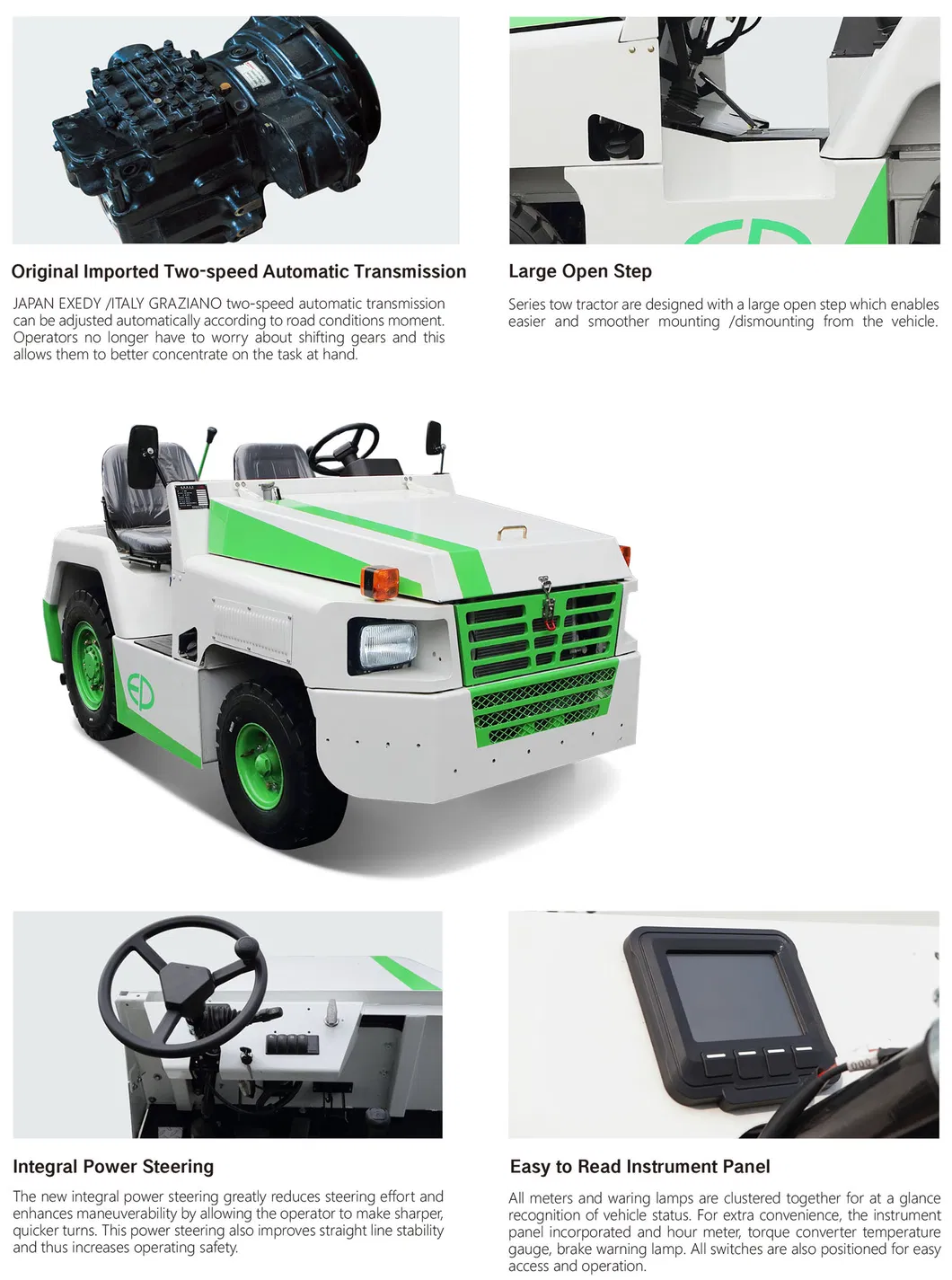

It features an (Exedy) Kt transmission model and an Integral Power Steering system for smooth and precise operation.

4. What is the travel speed of the equipment?

The travel speed is 25 km/h for forward motion and 22 km/h for backward motion.

5. What kind of braking system is installed?

The equipment is equipped with a Hydraulic Drum Brake for service and a parking brake that acts on the driving wheels.

6. Can this equipment handle slopes?

Yes, the EQC252-BDS model has a maximum gradeability of 38% under no-load conditions.
