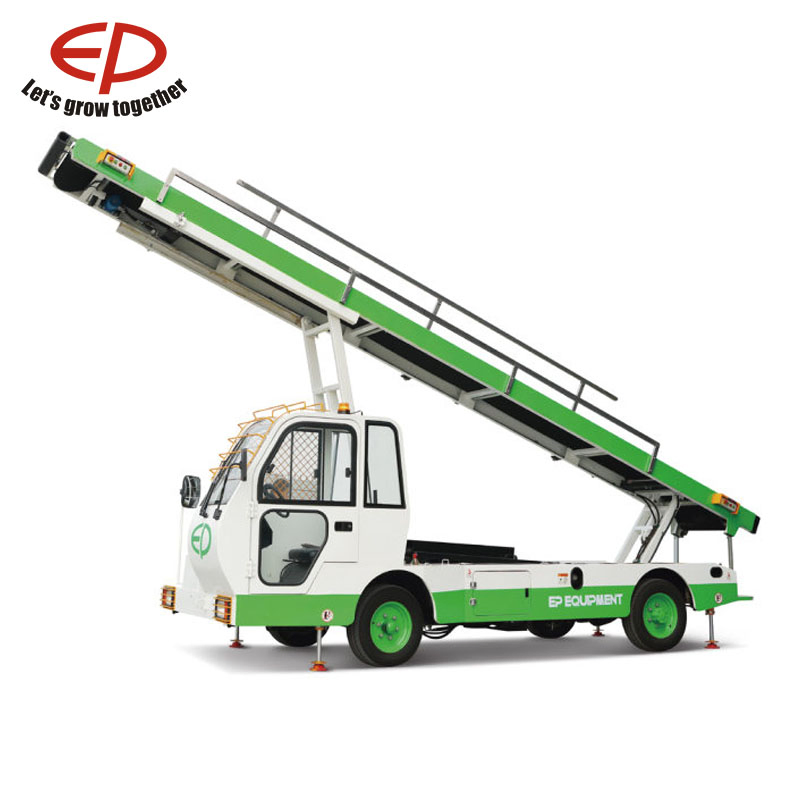

Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
1 / 5
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader

Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader

Customization: Available
Structure: Belt Conveyor
Material: Rubber
Send Inquiry

Product Description

i

Basic Information

Model NO.
BLC801-CK
Material Feature
Heat Resistant
Application
Baggage/Cargo Transport
Condition
New
Engine
Kohler
Transmission
Okamura
Fuel Type
Diesel
Self Weight
3560kg
S

Technical Specifications

Parameter Sub-Category Unit Details
Engine - - Kohler KDI 1903 TCR
Transmission - - Okamura Y43280K

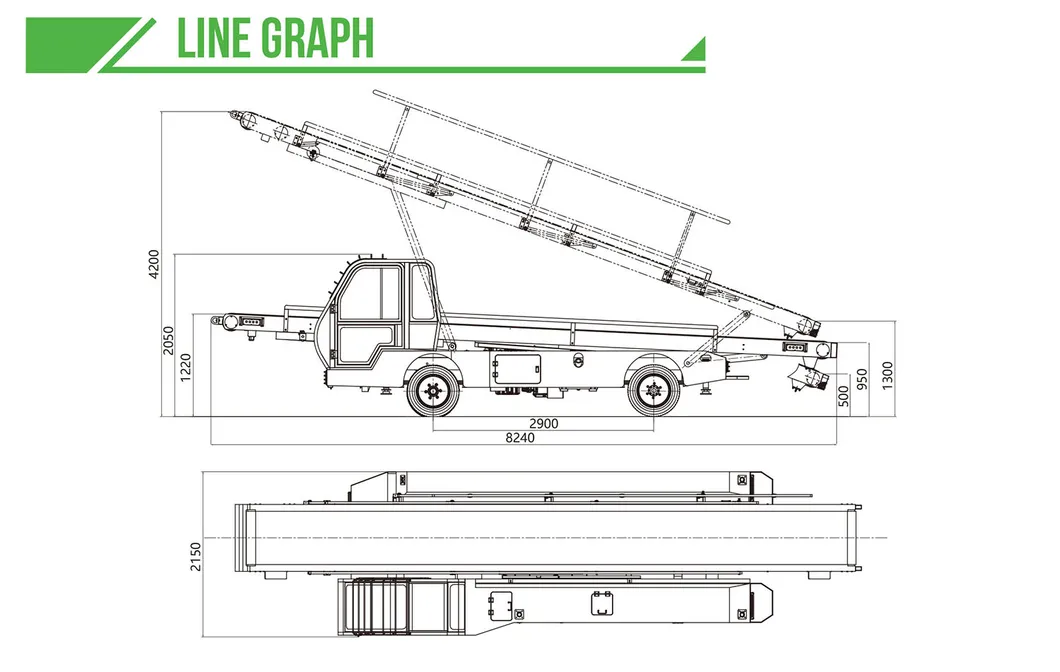

Overall Dimensions L * W * H mm 8240 * 2150 * 2050
Wheelbase - mm 2900
Tread Front/Rear mm 1730/1680
Max Turning Diameter - mm 15800
Max Travelling Speed - km/h 30.2
Conveyer Belt Width mm 700
Conveyer Frame Length * Width mm 8000 * 880
Ground Clearance (Front) Max / Min Height mm 4200 / 1220
Ground Clearance (Rear) Max / Min Height mm 1300 / 500
Transport Capacity Horizontal kg 1080
Transport Capacity Max Height kg 600
Single Cargo Weight Max Gross kg 400
P

Product Gallery

Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
Airport Ground Support Equipment Self-Propelled Conveyor Belt Loader
F

Frequently Asked Questions

What is the primary application of the BLC801-CK Conveyor Belt Loader?
The BLC801-CK is specifically designed for airport ground support, primarily used for efficient baggage and cargo transportation between the ground and aircraft.
What kind of engine and transmission system does this model use?
It is equipped with a high-performance Kohler KDI 1903 TCR engine and a reliable Okamura Y43280K transmission system for smooth operation.
What are the maximum and minimum loading heights?
The front conveyor end can reach a maximum height of 4200mm and a minimum of 1220mm. The rear end ranges from 500mm to 1300mm.
What is the weight capacity for single cargo items?
The equipment can handle a maximum single cargo transportation gross weight of up to 400kg.
Is the conveyor belt heat resistant?
Yes, the material feature of the conveyor belt includes heat resistance, ensuring durability under various operational conditions.
What is the maximum travel speed of the loader?
The BLC801-CK can reach a maximum travelling speed of 30.2 km/h, allowing for quick repositioning on the tarmac.
